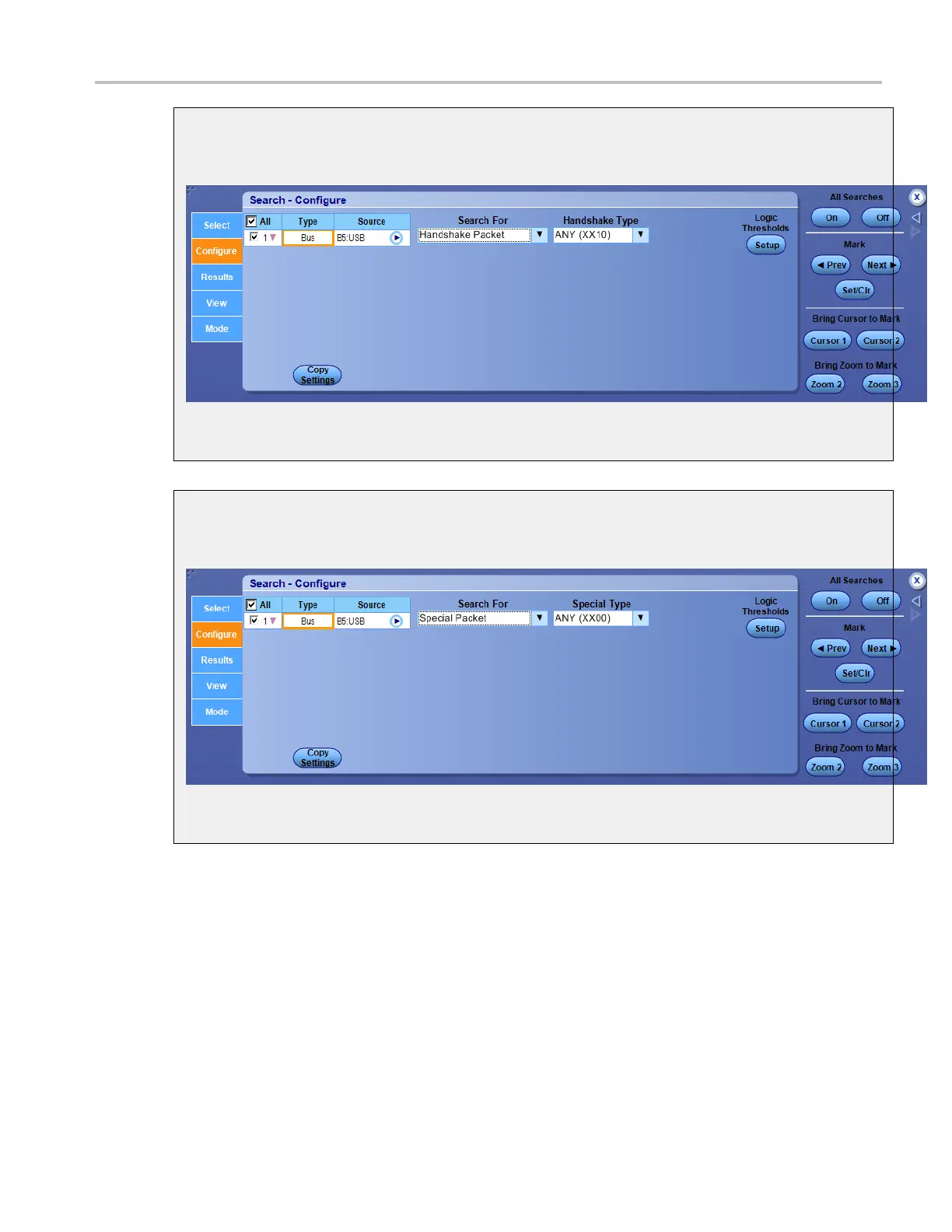

Analyzing waveforms Set up USB search parameters

Search for handshake packet

The handshake packet option available in Search For Handshake Packet is Handshake Type.

Select the Handshake Type from the drop-down list. Click Setup to adjust the logic thresholds.

Search for special packet

The special packet option available in Search For Special Packet is Special Type.

Sel

ect the Special Type from the drop-down list. Click Setup to adjust the logic thresholds.

DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 335
