AMT/PTD/PBX/0058/4/6/EN Installation and Maintenance Manual - Aastra 5000
Page 122 01/2011 Description des sous-ensembles
Extraction keys are used to lock and extract cards and blanking plates.
A card is locked as follows (see Figure 4.1 ):
• Set the two 1/4-turn locks in the horizontal position.
• Push the card to the bottom of its slot inside the cabinet.
• Turn the locks by 1/4 turn inwards the inside to lock the card in its slot.

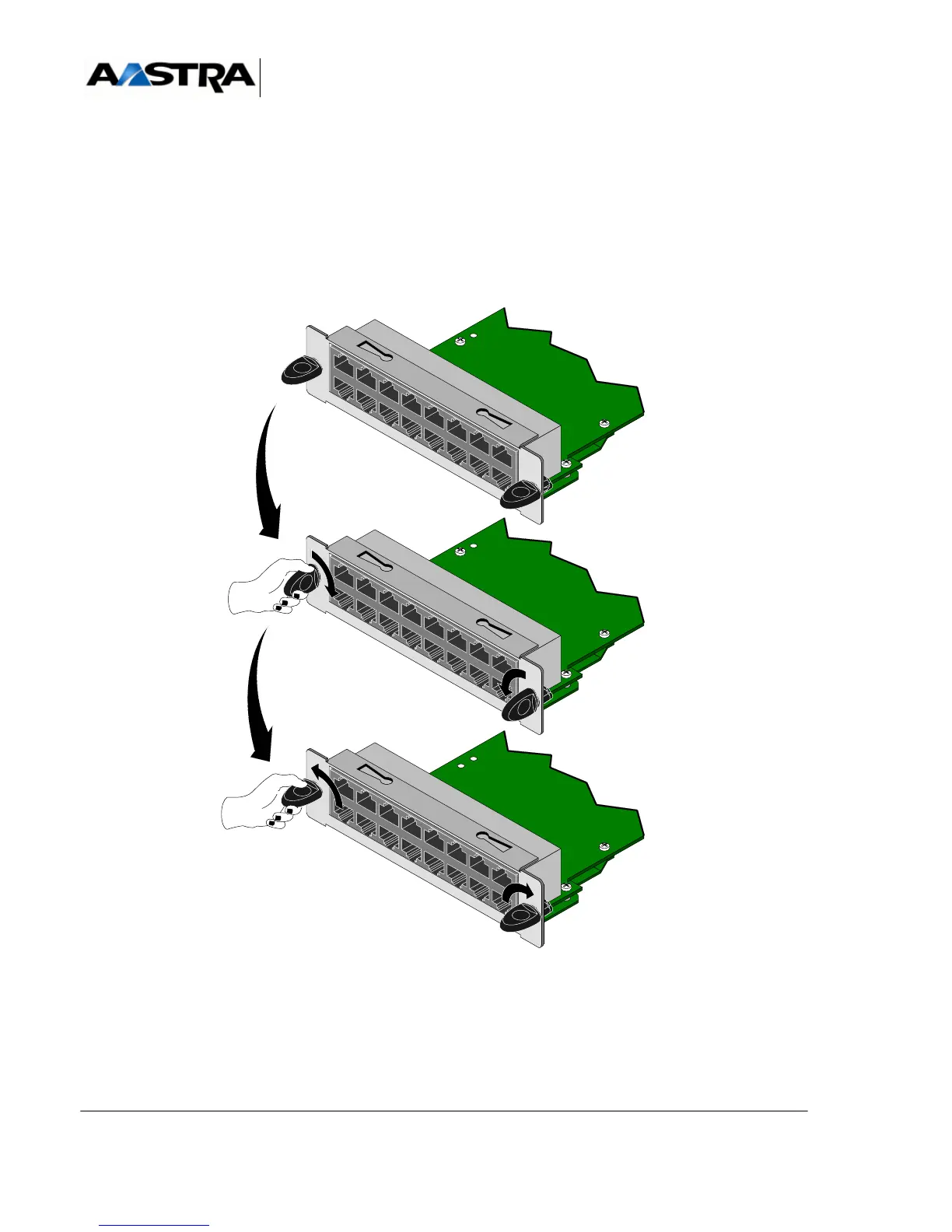

Figure 4.1 P
ROCEDURE FOR LOCKING A CARD OR BLANKING PLATE
Carte déverrouillée
Carte verrouillée
Carte déverrouillée
P
B
X
_
M
A
T
R
I
X
_
C
A
R
T
E
_
P
P
E
-
V
E
R
R
O
U
_
M
O
N
T
_
0
1
_
0
1
Pivoter
d'1/4 de tour
vers l'intérieur
Pivoter
d'1/4 de tour
vers l'extérieur
