Installation and Maintenance Manual - Aastra 5000 AMT/PTD/PBX/0058/4/6/EN
Description des sous-ensembles 01/2011 Page 275
4.14.8.4 Hardware configuration
The LN8 card has no configuration microswitch.
4.14.8.5 Installation and wiring
The LN8 card cannot be hot-plugged in a working iPBX. The iPBX must be powered off
before inserting the card. An LN8 card cannot be plugged into AXD and AXL expansion
cabinets either.
The other constraints relating to installing and wiring the LN8 card are identical to those
for the LN16X card (see Section 4.14.5.5).
The minimum diameter of the cables has to be 26AWG (0.4mm).

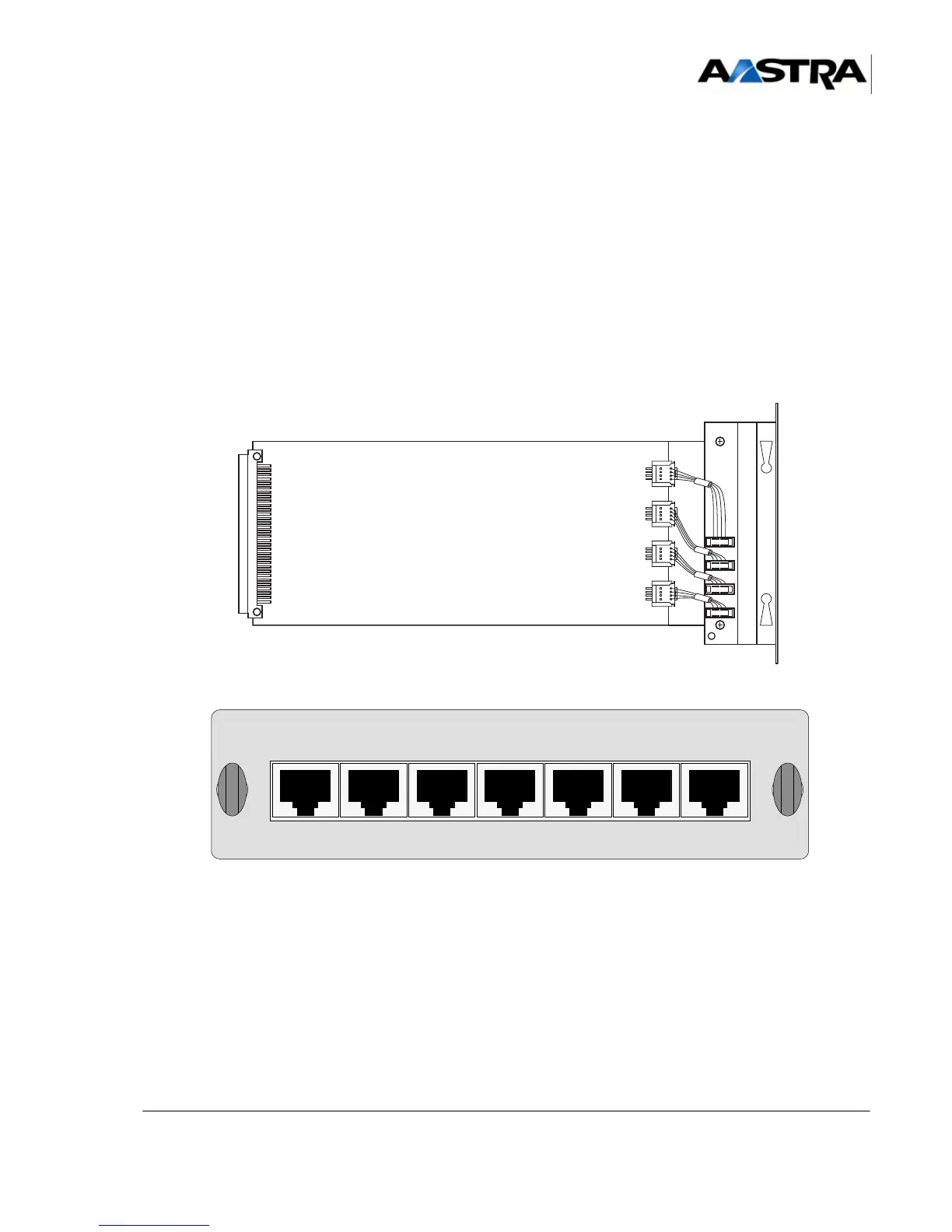

Figure 4.57 O
VERVIEW OF THE LN8 CARD
J1
J1
J2
J3
J4
1
4
1
4
J4
J5
J3
J2
1
4
1
4
LN8 CARD
N7
N0
LN8 X
P
B
X
_
M
A
T
R
I
X
_
C
A
R
T
E
_
L
N
8
-
R
J
_
F
A
V
_
0
1
_
0
1
LN8 CARD FRONT PANEL
