4.10.3 Hardware and software configuration
The EXT1-S6 card has 2 jumpers for configuring remote power supply of the S/T0 to S/T1
accesses (one jumper block for each access). These jumpers are fitted on connectors
J29_xx and J30_xx located on the front panel of the EXT1-S16 card (J29_30 for S/T0
access, J29_31 and J30_31 for S/T1 access).
Depending on the position of the jumpers, the S/T0 to S/T1 accesses will be configured
as follows:
• No remote power supply.
• Remote supply of - 48 V.

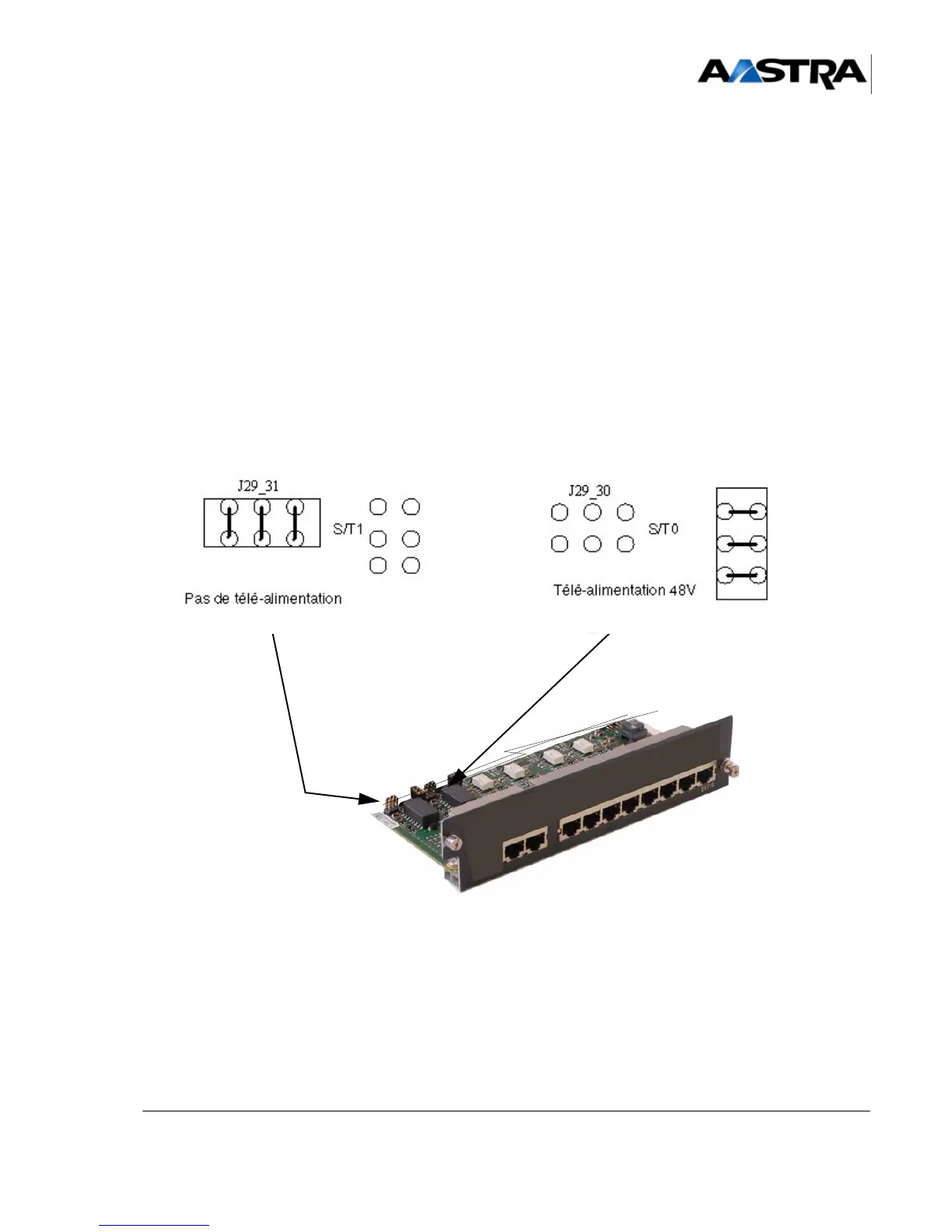

Figure 4.31 C
ONFIGURING REMOTE POWER SUPPLY OF S/T0 TO S/T3 ACCESSES
4.10.3.1 Installation and wiring
The A0 to A3 interfaces of the EXT1-S6 card have installation details identical to those of
the interfaces of the LA16X card (see Section 4.14.1.5).
