Installation and Maintenance Manual - Aastra 5000 AMT/PTD/PBX/0058/4/6/EN
Installation and activation 01/2011 Page 357
6.3.6 Adding EIP cards to an UCV CPU card
The UCV cards of AXD, AXL, AXS, AXS12 and AXS6 iPBXs can be fitted with two EIP
daughter cards No. 1 and EIP card No. 2 to manage VoIP calls. These two daughter cards
have 8 or 32 channels each for signal processing.
The internal IP address of the IP cards must be declared on the same sub-network as that
of the CPU card. See Aastra Management Portal operating manual.
These cards are fitted on the UCV card’s CPU card:
Depending on the case, one or two EIP cards can be fitted:
• Only one EIP card (EIP 1) on connector J13
• Two EIP, EIP 1 cards on connector J13 and EIP 2 on connector J14.

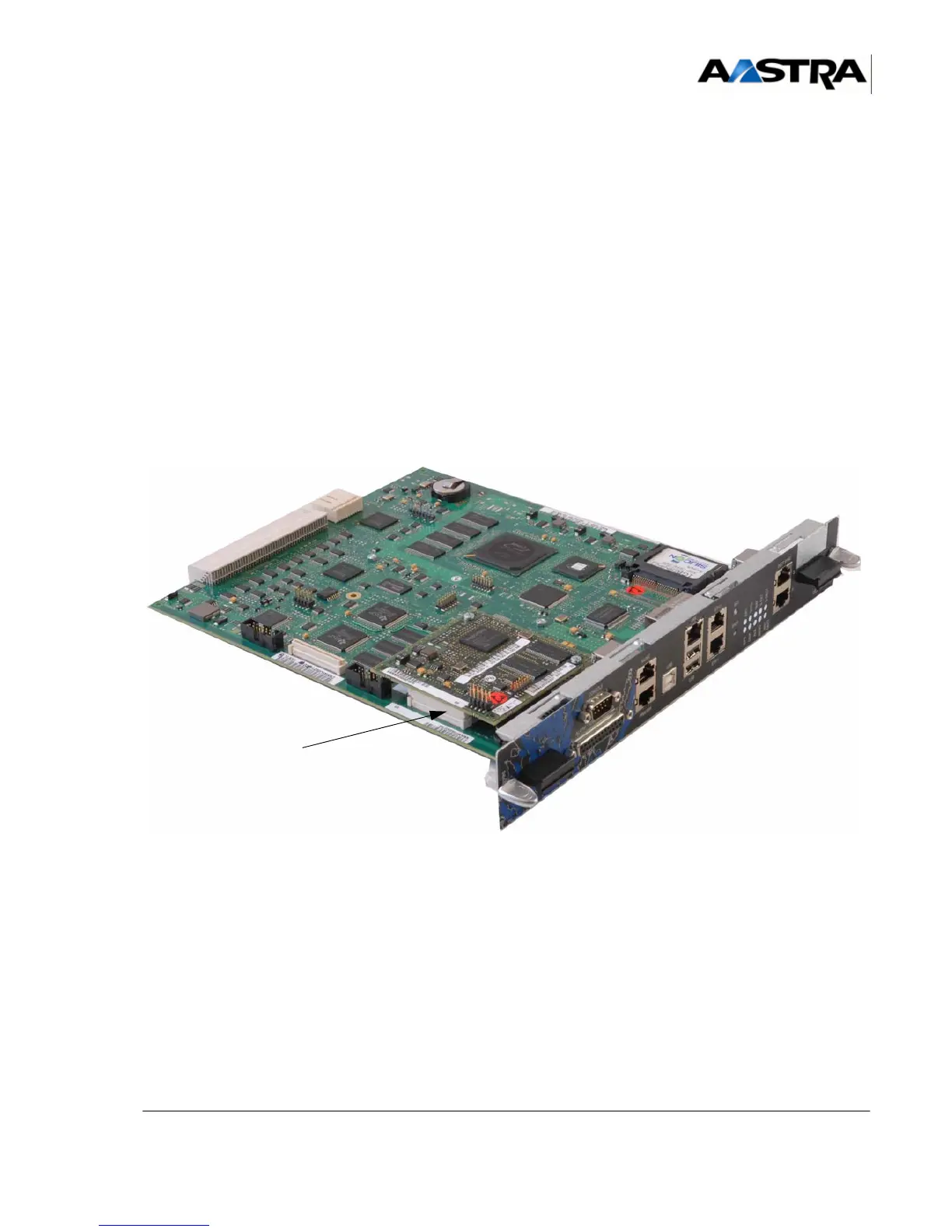

Figure 6.1 CPU
CARD FITTED WITH AN EIP CARD
