AMT/PTD/PBX/0058/4/6/EN Installation and Maintenance Manual - Aastra 5000
Page 314 01/2011 Installation and activation
6.2.2 Installing an AXD cabinet
The various installation options of an AXD cabinet are given in the following table:

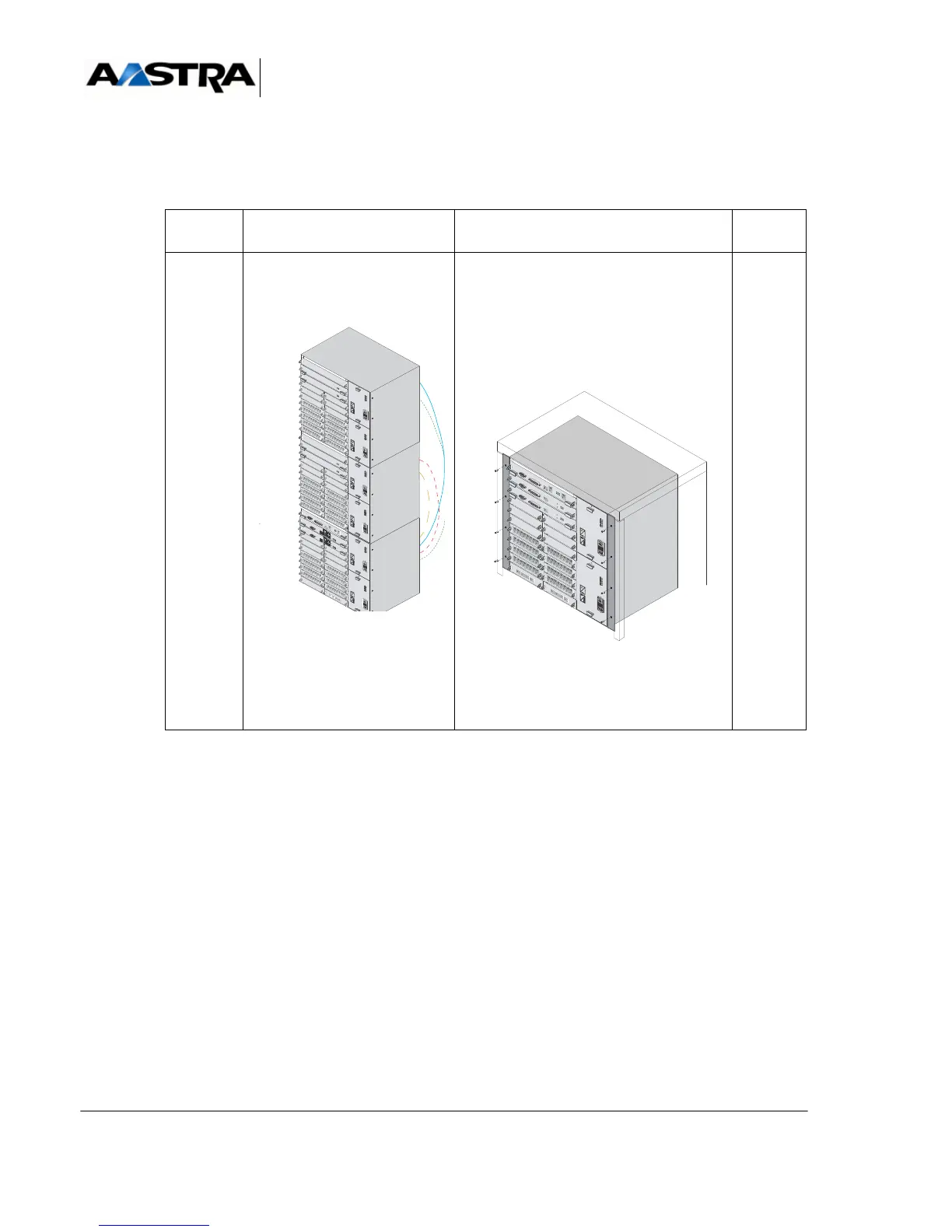

TABLEAU 6.1 OPTIONS FOR INSTALLING AN AXD CABINET
(1) The cabinets in an A2XD or A3XD version can be placed on a piece of furniture, on
top of one another.
A minimum clearance is required for air circulation: 55 mm on the left-hand side and at the
back of an AXD cabinet.
Read the environmental constraints described in section 6.2.1.3.
Hardware required
• 1 mounting kit (2 brackets + 8 screws)
• Screws and captive nuts for fitting in a rack
INSTALLATION
CABINET STACKED INSIDE A CABINET ON A
WALL
AXD
(1)
With mounting kit: 1 flush position Not
