Installation and Maintenance Manual - Aastra 5000 AMT/PTD/PBX/0058/4/6/EN
Installation and activation 01/2011 Page 363
6.3.7.2 Adding an expansion cabinet (AXL)
Procedure
• Back up the customer configuration.
• Power off the iPBX.
• Install the expansion cabinet cards.
• Install the expansion cabinet and connect it to earth (see Sections 3 and 6.2.5).

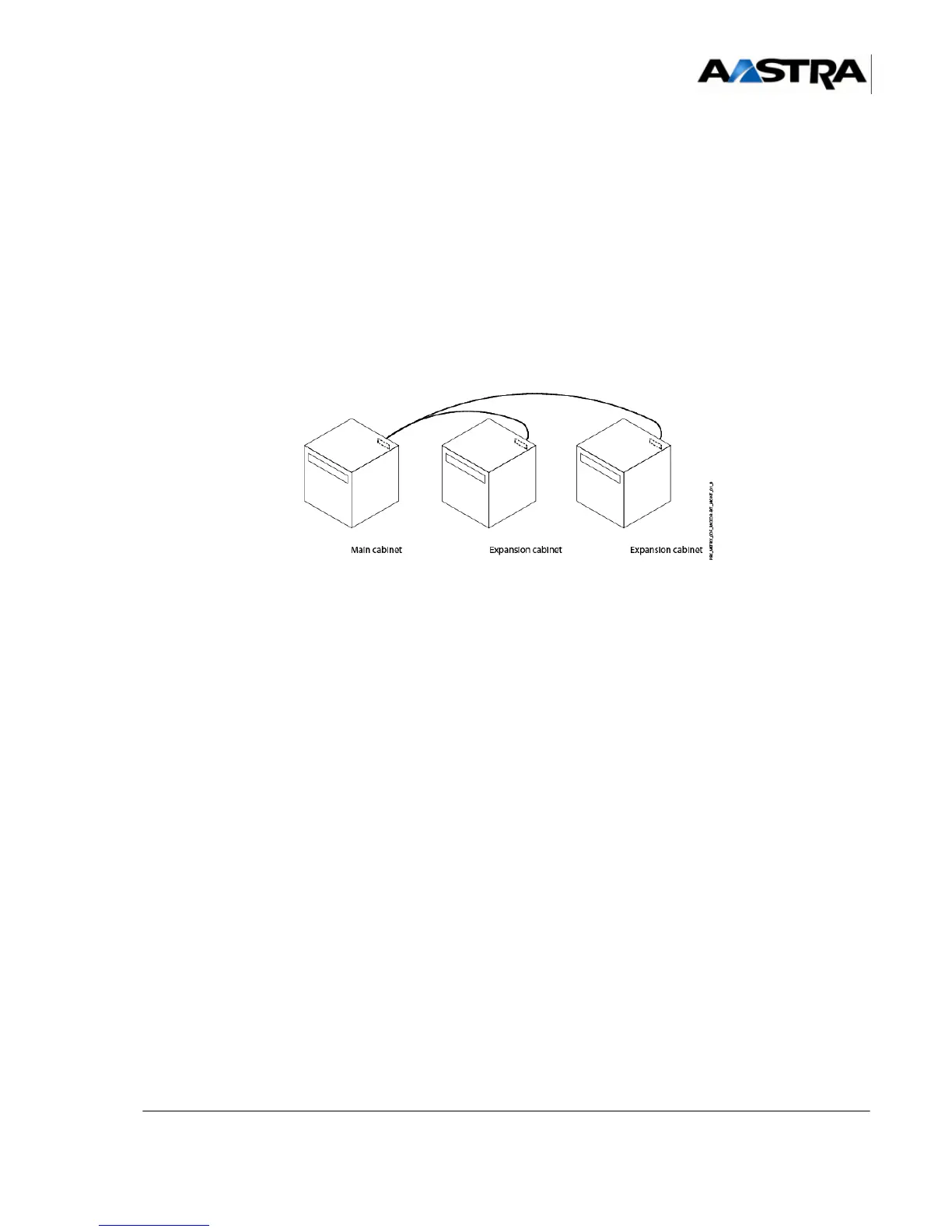

• Connect the expansion cabinet to the main cabinet using the connection cable(s).
- For an AXL extension connect to its two expansion cabinets:
• Install the cable on the front panel of the expansion cabinet cards.
• Install the battery cabinet if available.
• Connect the two battery leads.
• Make sure the polarity is correct.
• Connect the battery cable to the “48 V BATT.” connector of the power supply module
located on the front panel of the power supply module on an AXL iPBX.
• Connect one end of the mains cable to the power supply module(s) of the expansion
cabinet and the other end to a grounded mains power point.
• Power on the iPBX (expansion cabinets first then the main cabinet).
• Check that the yellow and green indicators on the front panel of the cabinet sub-
assemblies are lit, and that no red indicator is on (refer to Sections 4.3 to 4.14 to check
that the operating conditions shown by the indicators are correct).
• From the AMP, check that the software has detected the cabinet expansion.
• Configure the new expansion cabinet equipment.
• Configure the new expansion cabinet equipment
(see AMP operating manual).
• Save the configuration.
6.3.7.3 Adding an AXS, AXS12 and AXS6 expansion cabinet
Procedure
