Installation and Maintenance Manual - Aastra 5000 AMT/PTD/PBX/0058/4/6/EN
Description des sous-ensembles 01/2011 Page 173

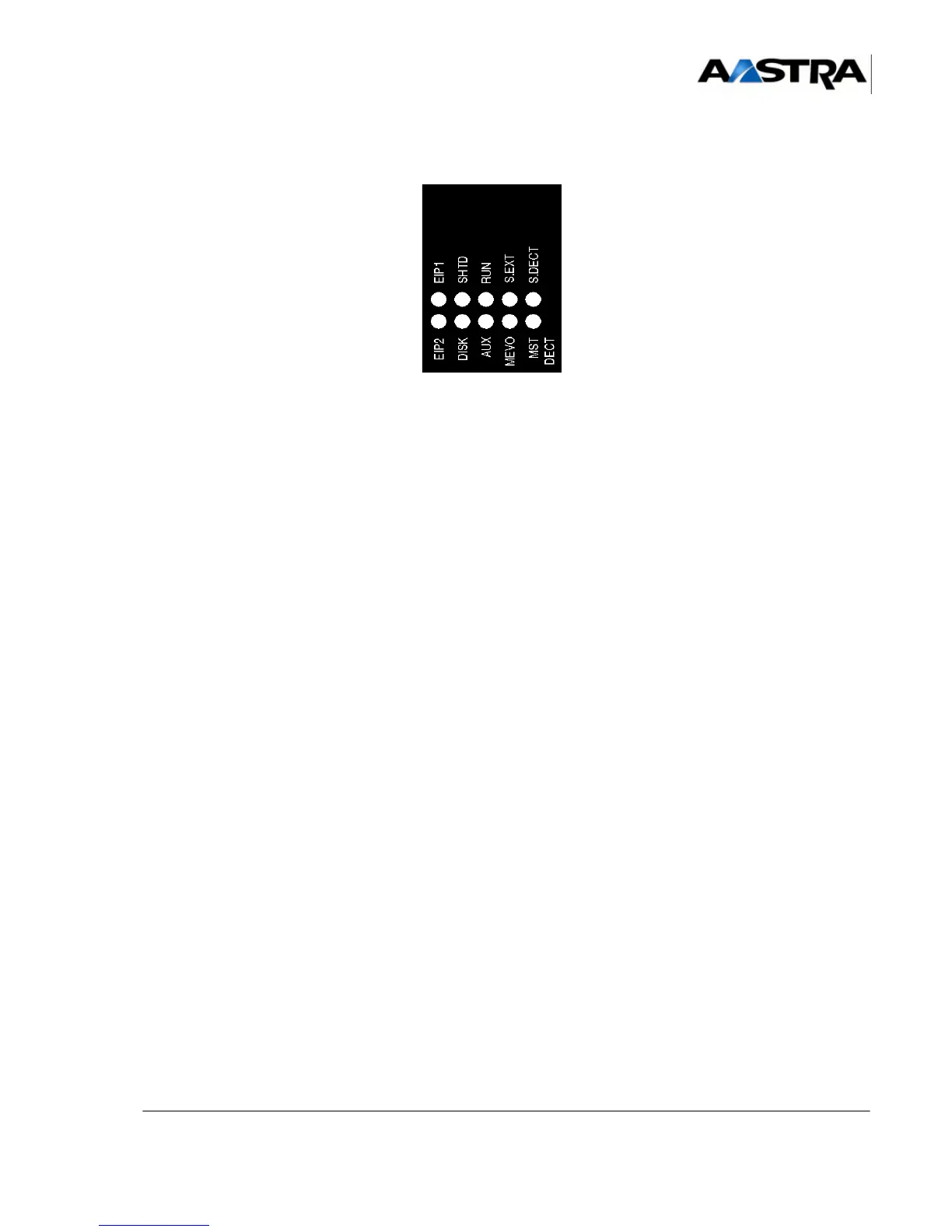

Figure 4.21 PRESENTATION OF UCV-L CARD INDICATORS
Pushbuttons
The front panel includes:
•An "RST" pushbutton for resetting the iPBX
•A "SHTD" (shutdown) push button:
Same procedure as for AXD, AXL and AXS/AXS12.
From the buttons on the CPU card front panel, you have to distinguish between two types
of restart operations:
• Restart with OS reboot (shutting down and restarting the iPBX)
• Forced restart (not recommended in normal operation).
Restart with OS reboot (shutting down and restarting the iPBX)
Pressing and holding down the "SHTD" button (5 seconds), triggers an "OS reboot"
(shutdown + iPBX restart).
Forced restart (not recommended in normal operation)
Press "RST". This button should only be used as last resort if pressing the
"SHTD" button does not work.
4.6.3 Hardware and software configuration
During operation, the UCV-L card does not have any hardware configuration. All the
configurations are performed by MMC from Aastra Management Portal:
• Master/Slave mode of the synchronisation port (by default set to Master).
• Priority/Non Priority mode of the synchronisation port (by default set to Non Priority).
• Setting of the input level for the external music on hold.
• Setting of the delay to apply to the DECT synchronisation signal.
