AMT/PTD/PBX/0058/4/6/EN Installation and Maintenance Manual - Aastra 5000
Page 160 01/2011 Description des sous-ensembles
4.5.4.1 Connecting an expansion cabinet (A2XD)
• Simplex configuration: connecting UCV-D (A) / RUCV-D (A) (see Figure 4.13 )
- Install the red clamps at each end of the AXD-A2XD connection cable.

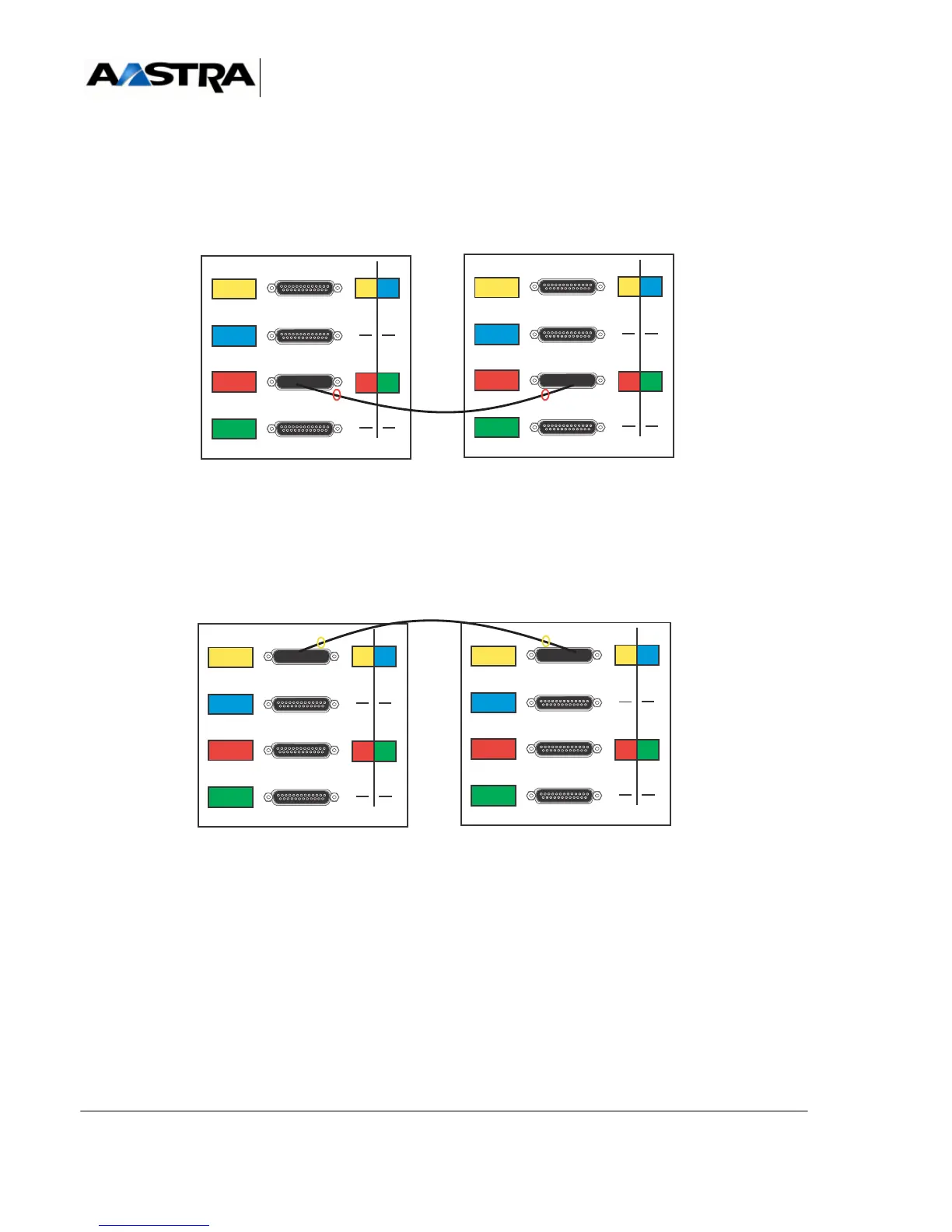

Figure 4.13 C
ONNECTING AN EXPANSION CABINET (SIMPLEX CONFIGURATION, UCV-D(A)/
RUCV-D(A))
• Simplex configuration: connecting UCV-D (B) / RUCV-D (B) (see Figure 4.14 )
- Install the yellow clamps at each end of the
AXD-A2XD connection cable.
Figure 4.14 C
ONNECTING AN EXPANSION CABINET (SIMPLEX CONFIGURATION, UCV-D(B)-
RUCV-D(B))
