Installation and Maintenance Manual - Aastra 5000 AMT/PTD/PBX/0058/4/6/EN
Description des sous-ensembles 01/2011 Page 181

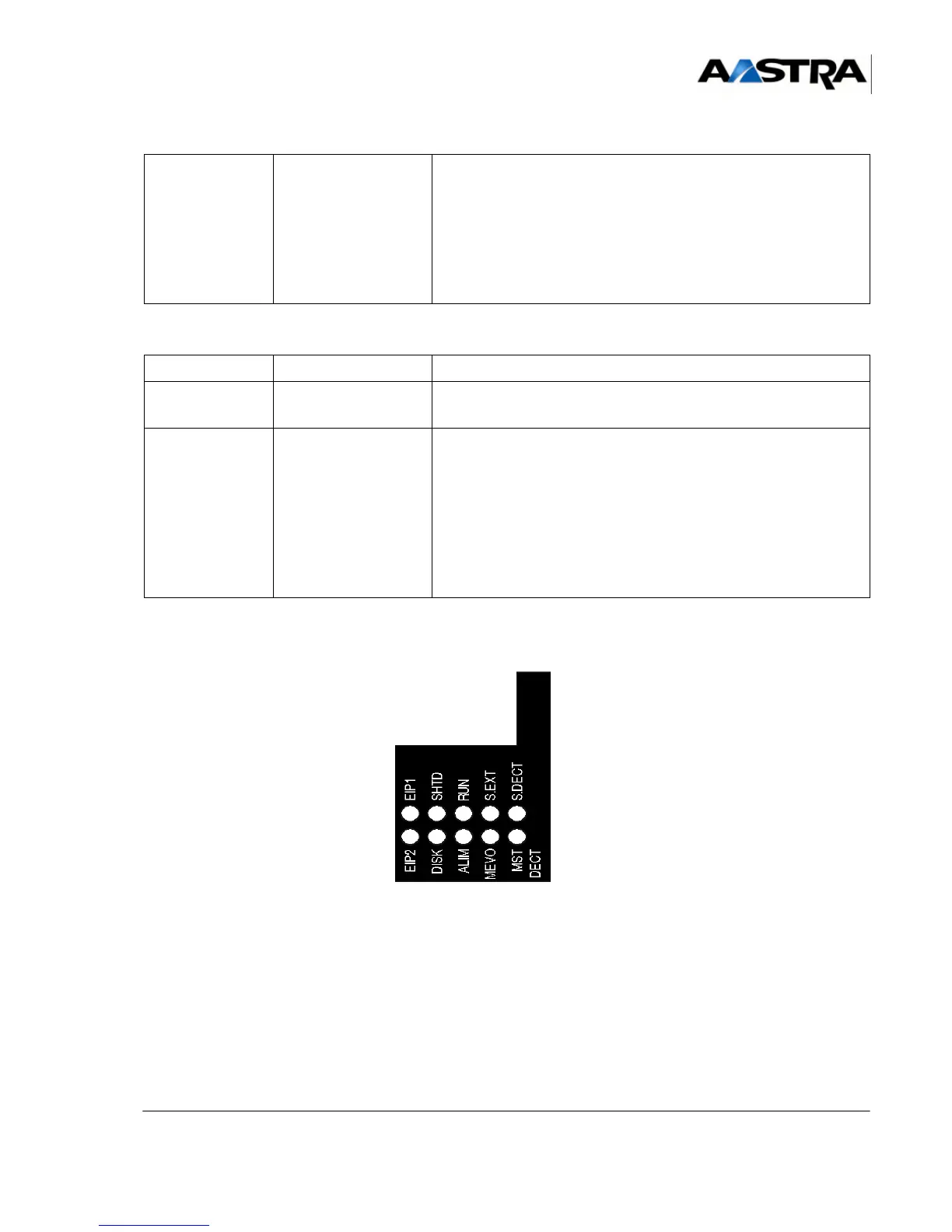

TABLEAU 4.22 PRESENTATION OF UCV-S CARD INDICATORS (2/2)
Figure 4.23 P
RESENTATION OF UCV-S CARD INDICATORS
Pushbuttons
•An "RST" push button. It should only be used as a last resort when the SHTD push
button is not working.
•A "SHTD" (shutdown) push button:
From the buttons on the CPU card front panel, you have to distinguish between two types
of restart operations:
• Restart with OS reboot (shutting down and restarting the iPBX)
S.DECT
(green/red)
ON green
ON red
Flashing green (slowly)
Flashing green
(average)
Flashing green
(rapidly)
DECT synchronisation correct
DECT synchronisation loss alarm
Received synchronisation not validated
Synchronisation test
Synchronisation successful
INDICATOR STATE EXPLANATION
MST DECT
(green)
On
Off
Active synchronisation master iPBX
Slave or Master iPBX
LAN
2 LEDs integrated
into RJ45
- 1 yellow LED:
Off
On
Flashing
- 1 green/yellow LED:
Off
ON green
ON yellow
Half Duplex link.
Full Duplex link.
Collisions
Link not set up.
Link set up at 100 Mb/s.
Link set up at 10 Mb/s.
TABLEAU 4.21 PRESENTATION OF UCV-S CARD INDICATORS (1/2)
