Installation and Maintenance Manual - Aastra 5000 AMT/PTD/PBX/0058/4/6/EN
Description des sous-ensembles 01/2011 Page 137
Indicators
The ADS 300X power supplies include 6 indicators on the front panel giving the following
indications:
4.2.4.5 Hardware configuration
The mains voltage, 115 V or 230V +/- 10%), is detected automatically, internally.
4.2.4.6 Installation and wiring
The ADS 300X power supply module is supplied with a battery connection cable fitted
with a 4 pin connector, with a centring piece to prevent polarity inversion when connecting
the backup battery.

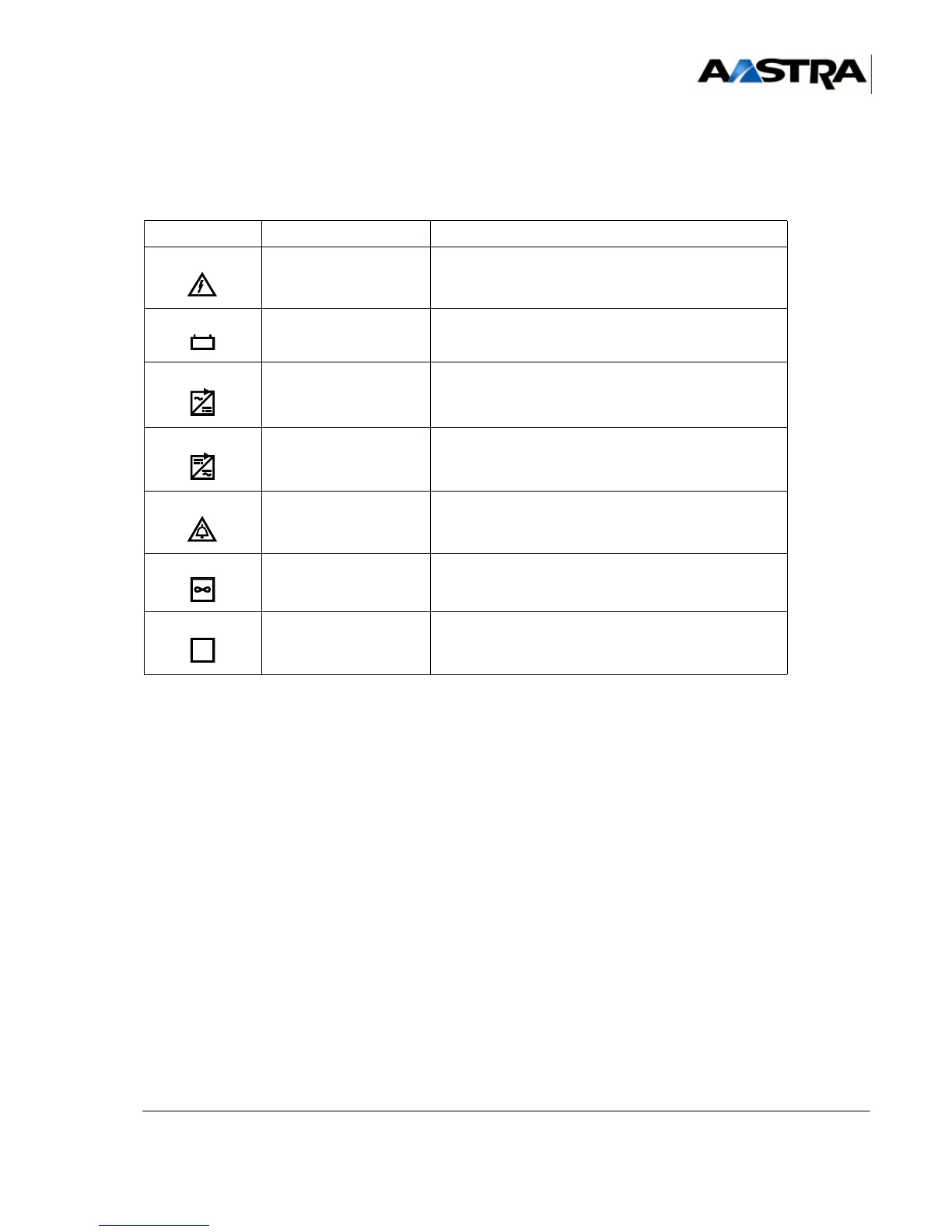

SYMBOL INDICATOR STATE EXPLANATION
On Line Power Present
On Battery connected
On Rectifier On
On Converter On
On Bell current generator On
On Fans present
On 40 V ISDN present
TABLEAU 4.4 PRESENTATION OF ADS 300X POWER SUPPLY
MODULE INDICATORS
48
