AMT/PTD/PBX/0058/4/6/EN Installation and Maintenance Manual - Aastra 5000
Page 266 01/2011 Description des sous-ensembles
4.14.4 LA8 card
4.14.4.1 Description
The LA8 card is used to connect 8 analogue set lines to an iPBX.
4.14.4.2 Functional description
The LA8 card is functionally identical to the LA16X card (see section 4.14.1.2) except for
the following differences:
• it ensures interfacing with only 8 analogue sets,
• the parameters for converting digital signals into analogue signals and from analogue
signals to digital signals are not loaded into the memory of the LA8 card when started,
but pre-programmed in the card at the factory.

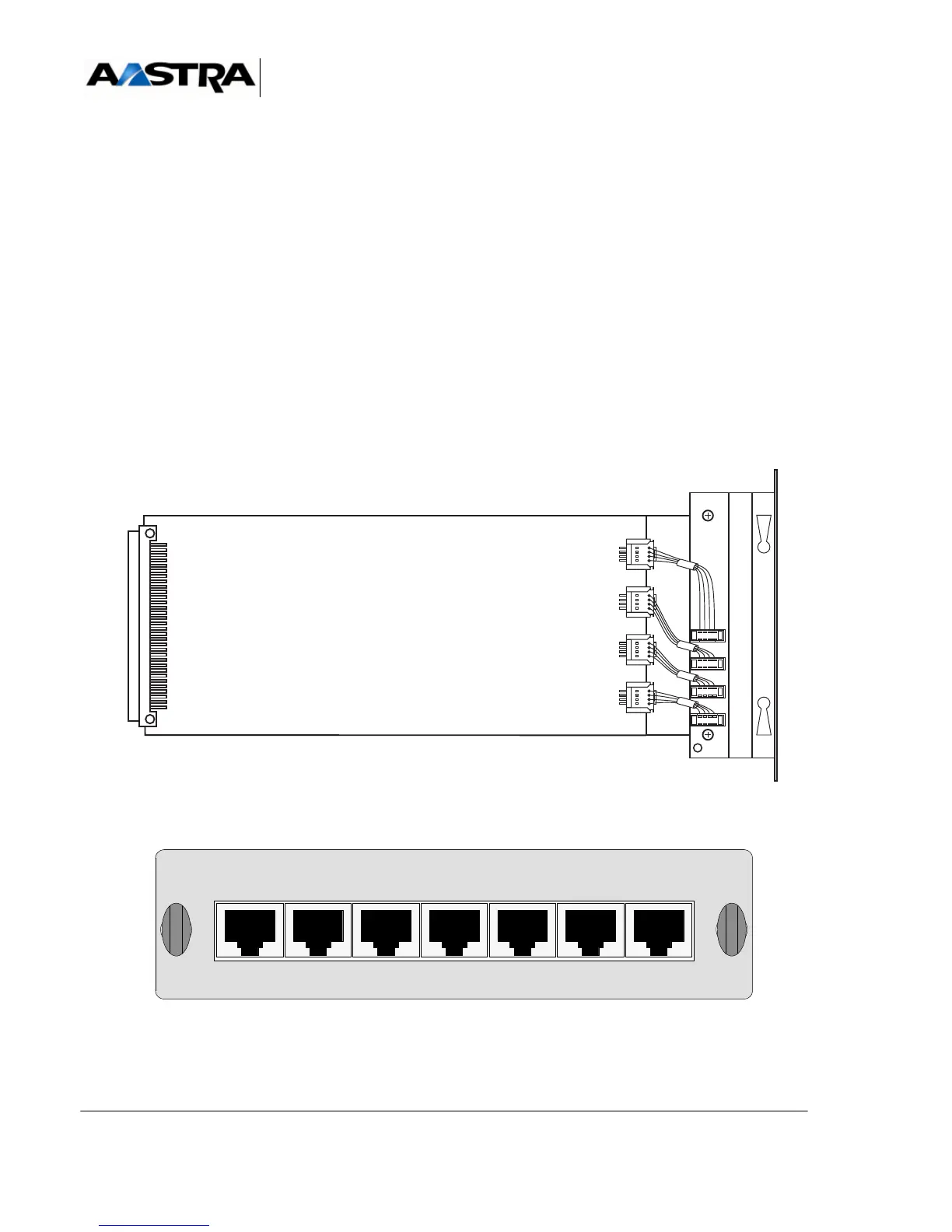

Figure 4.54 O
VERVIEW OF THE LA8 CARD
J1
J1
J2
J3
J4
1
4
1
4
J4
J5
J3
J2
1
4
1
4
LA8 CARD
A7
A0
LA8 X
P
B
X
_
M
A
T
R
I
X
_
C
A
R
T
E
_
L
A
8
-
R
J
_
F
A
V
_
0
1
_
0
1
LA8 CARD FRONT PANEL
