Installation and Maintenance Manual - Aastra 5000 AMT/PTD/PBX/0058/4/6/EN
Description des sous-ensembles 01/2011 Page 227
Wiring DECT base stations
Each terminal is connected to the ISDN S0 (BRI) interface of an LD4NX card, and uses
2 pairs: 1 transmit pair and 1 reception pair (refer to document [6] (see Section1.3) for
more information).
If there are a DECT base station and an S0 terminal supplied with 40 V (other than the
base station) on the same card, the base station will be powered with a 40 V (available
only on an AXL cabinet).

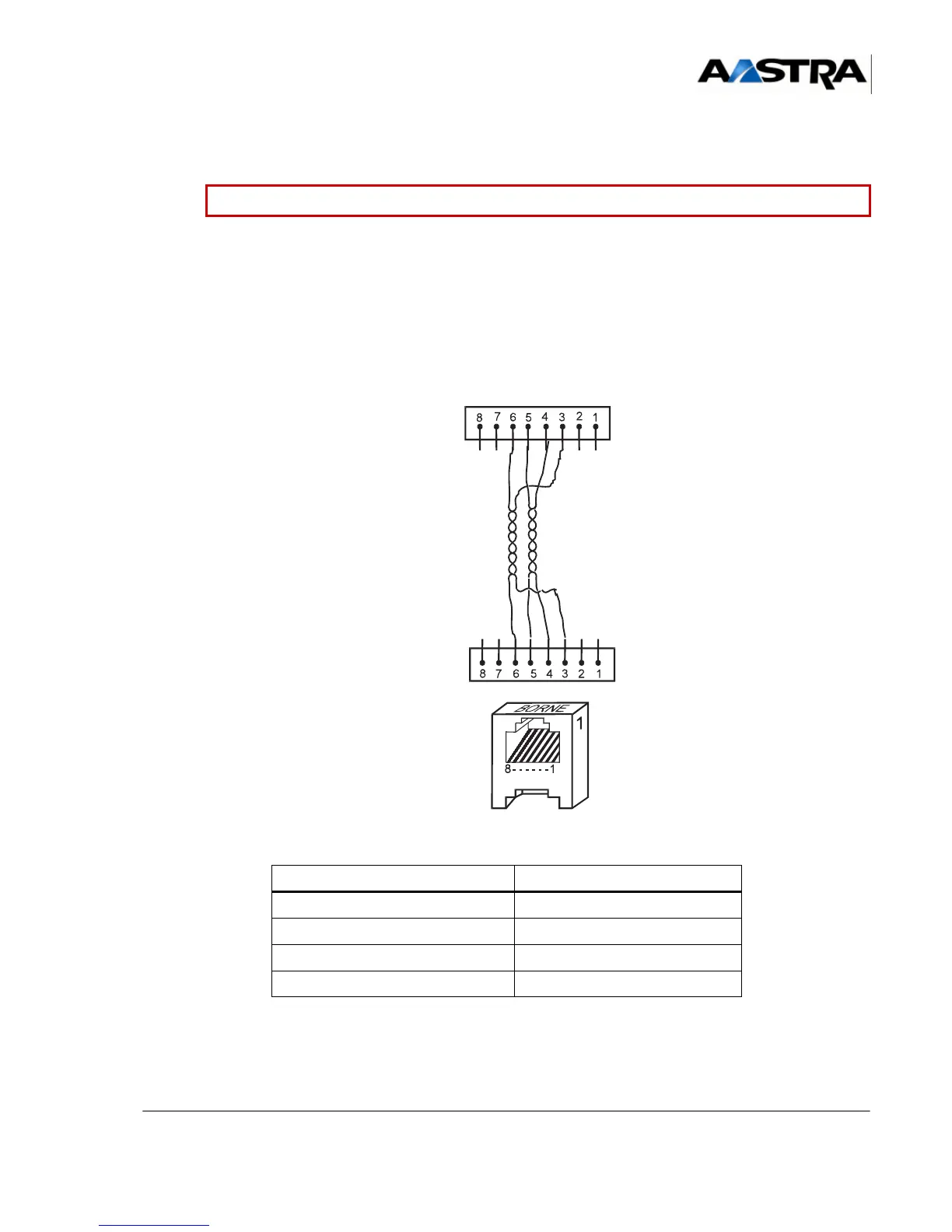

Figure 4.42 C
ONNECTING A DECT BASE STATION TO AN LD4NX CARD
TABLEAU 4.43
TABLEAU 4.44 S0 INTERFACE LINK WITH DECT BASE STATION
Caution: Never invert the polarities of the clock and transmit/receive pairs.
LD4N card RJ45 connector Base station RJ45 connector
Pin 6 (NRD) Pin 6
Pin 3 (RD) Pin 3
Pin 5 (NED) Pin 5
Pin 4 (ED) Pin 4
