Installation and Maintenance Manual - Aastra 5000 AMT/PTD/PBX/0058/4/6/EN
Description des sous-ensembles 01/2011 Page 267
4.14.4.3 Physical description (see Figure 4.54 )
Connectors

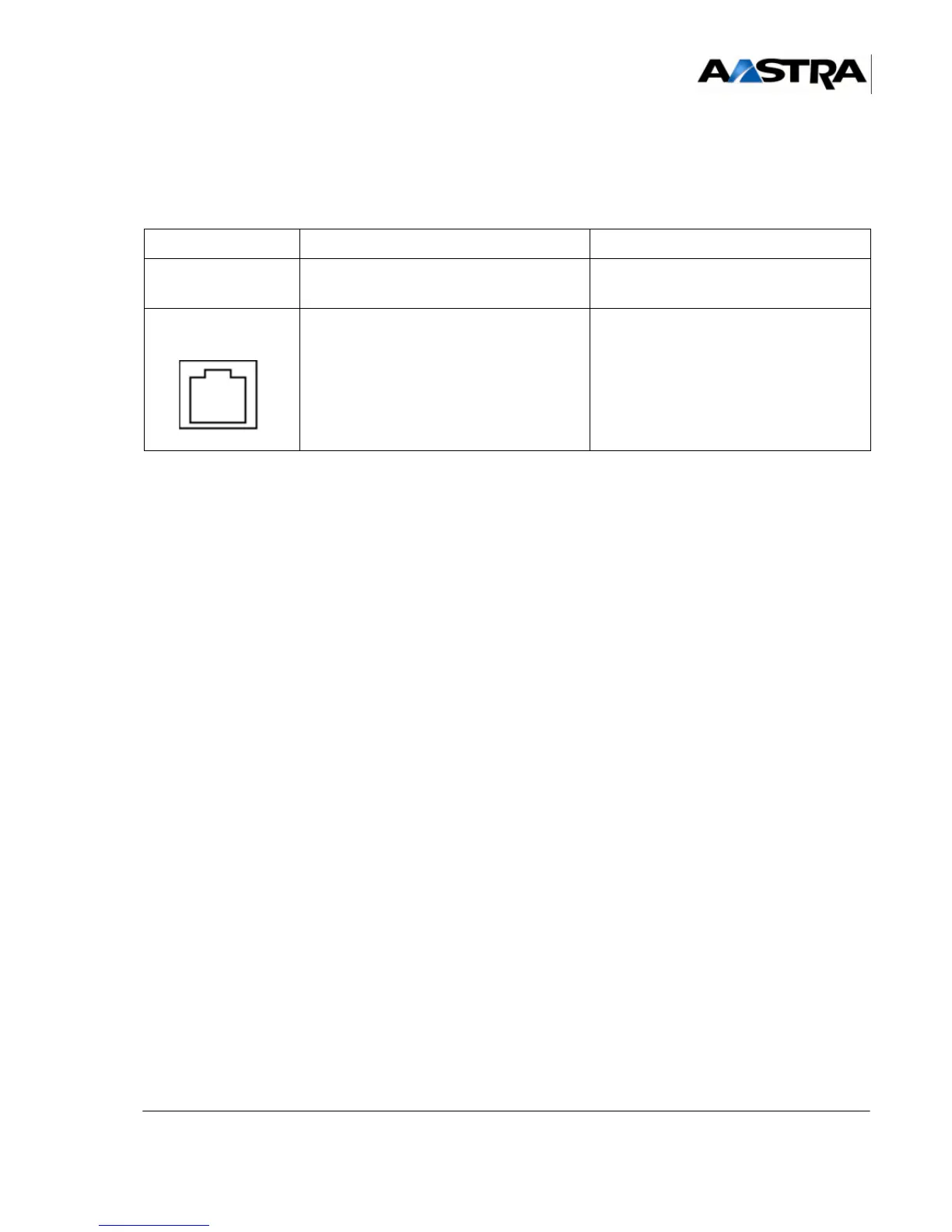

TABLEAU 4.72 DESCRIPTION OF LA8 CARD CONNECTORS
Indicators
This card has no signalling indicator.
4.14.4.4 Hardware configuration
The LA8 card has no configuration microswitch.
4.14.4.5 Installation and wiring
The LA8 card cannot be hot-plugged in a working iPBX. The iPBX must be powered off
before inserting the card. An LA8 card cannot be plugged into AXD and AXL expansion
cabinets either.
The other constraints relating to installing and wiring the LA8 card are identical to those
for the LA16X card (see Section 4.14.1.5).
The minimum diameter of the cables has to be 26AWG (0.4mm).
NAME FUNCTION/CHARACTERISTIC CONTACTS
J1 96-pin connector:
backplane connection.
A0 to A7 RJ45 connectors: each socket provides
one connection to an analogue set
• Pin 4: analogue set (i)+
• Pin 5: analogue set (i)-
• Pins 1, 2, 3, 6, 7, and 8: NC
