AMT/PTD/PBX/0058/4/6/EN Installation and Maintenance Manual - Aastra 5000
Page 382 01/2011 Installation and activation
6.11.1 ACCESSING THE USER INTERFACE VIA AN ANALOGUE MODEM
From a PC, set up a connection with the external analogue modem via the PC’s
integrated modem.
Then access the web browser installed on this PC (Internet Explorer, for example).
Enter the IP address, 192.168.0.101, the default value defined for this connection type via
the operating console in secure mode:
• https://192.168.0.101 (secure access mode).
Connectors
Only one access per Aastra X series system.

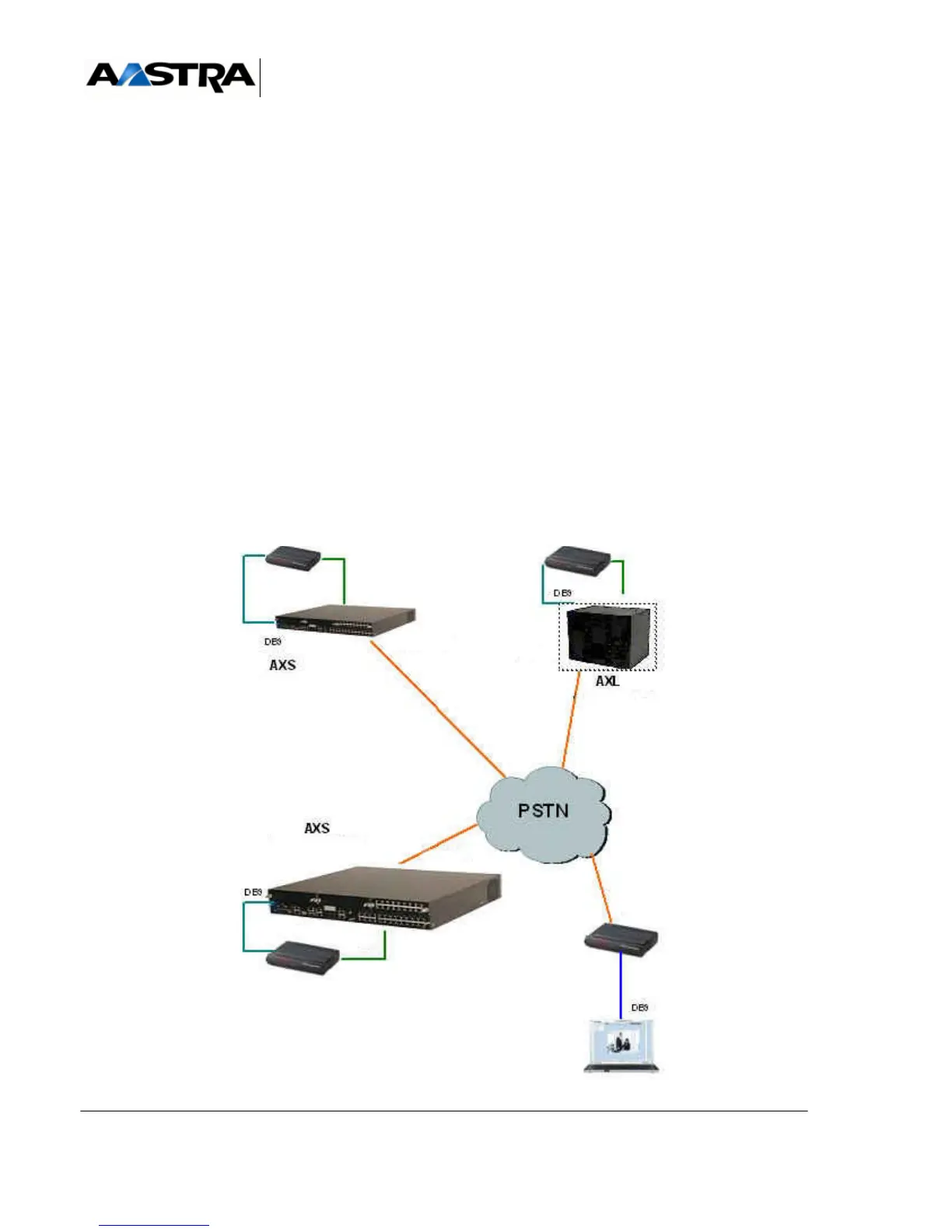

The analogue connection requires an external analogue modem between the gateway
and analogue network socket.
Nota : Aastra offers at the price a 56k US Robotics analogue modem.
A cable, DB25M, on the modem side - modem - DB9F on the gateway side, is used to
connect the modem to the gateway.
