AMT/PTD/PBX/0058/4/6/EN Installation and Maintenance Manual - Aastra 5000
Page 210 01/2011 Description des sous-ensembles

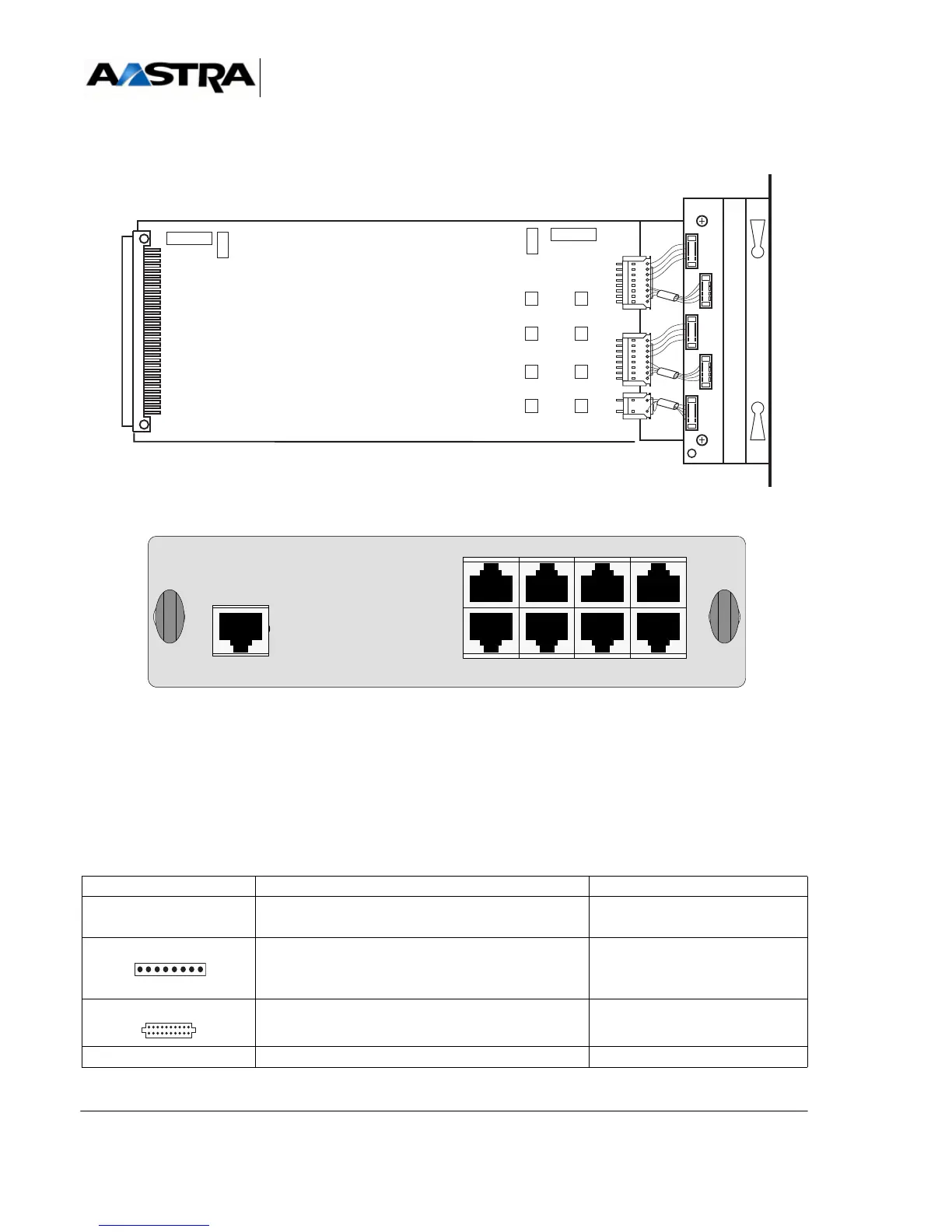

Figure 4.35 OVERVIEW OF THE LD4 CARD
4.13.1.3 Physical description
Connectors
NAME FUNCTIONS/CHARACTERISTICS CONTACTS
J1 96-pin connector:
backplane connection.
J4 HE14 connector -1 x 8 male pins, partially
equipped: used for loading programmable
components "On Site"
not used
J5 and J6 Two connectors AMP CMS 2 x 10 female pins:
host the ADPCM4V daughter cards.
J9 Male 3-pin connector partially equipped. not used
LD4 card
J1
J5
J2
J4
J6
J1
J2
J7
J8
J4
SW1
SW8
SW7
ADAPT
SW3 SW4 SW5
SW6
J3
CONSOLE
LD4 X
T
0
S
0
T
3
S
3
P
B
X
_
M
A
T
R
I
X
_
C
A
R
T
E
_
L
D
4
R
J
_
F
A
V
_
0
1
_
0
1
LD4 CARD FRONT PANEL
