AMT/PTD/PBX/0058/4/6/EN Installation and Maintenance Manual - Aastra 5000
Page 52 01/2011 Description et caractéristiques d’un PBX

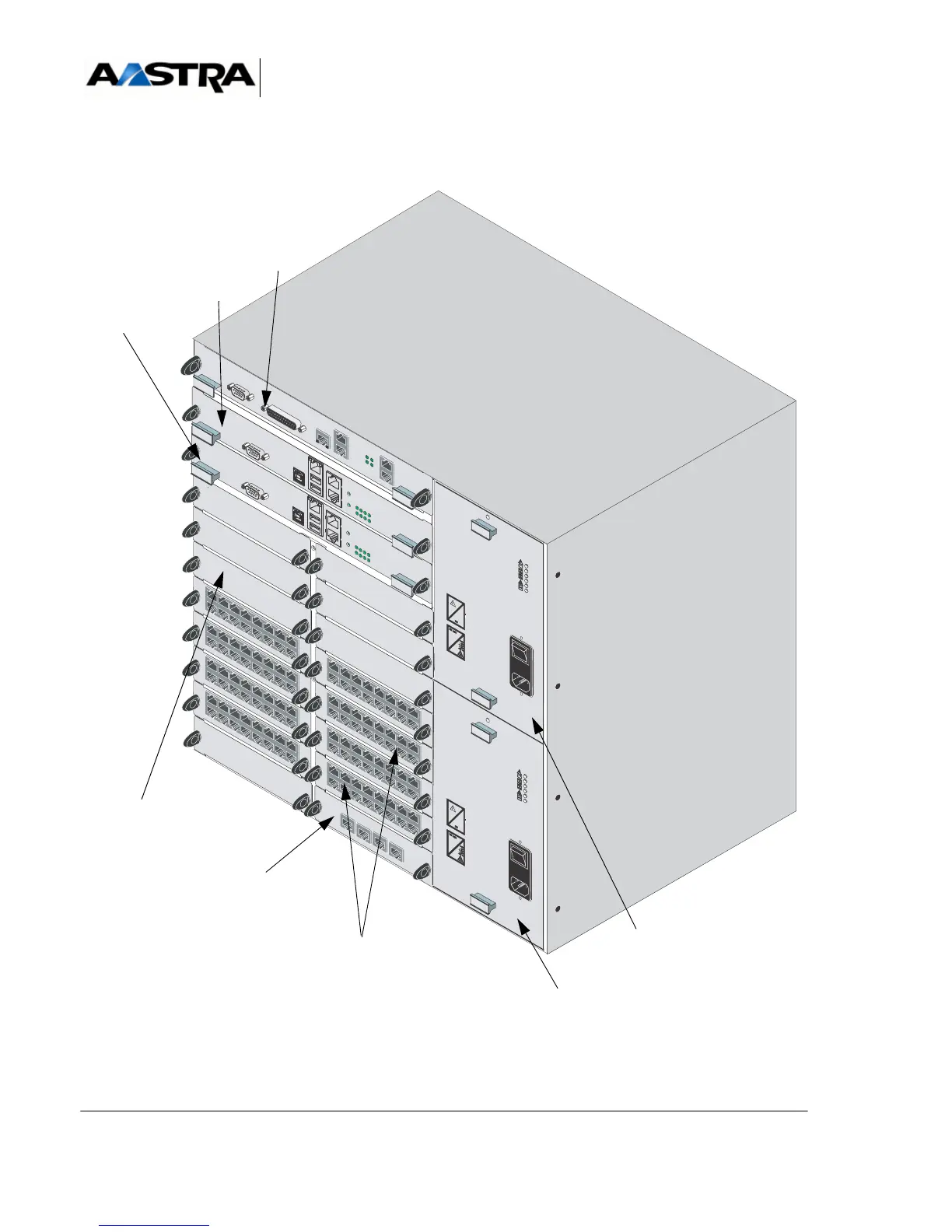

Figure 3.8 Overview of an AXD cabinet in duplex configuration
Power supply module
Power supply module
IUCV-D card
UCV
-D card (B)
UCV-D card (A)
Expansion cards
Blanking plate
(empty slot)
BTX card
(power supply module 2)
(power supply module 1)
