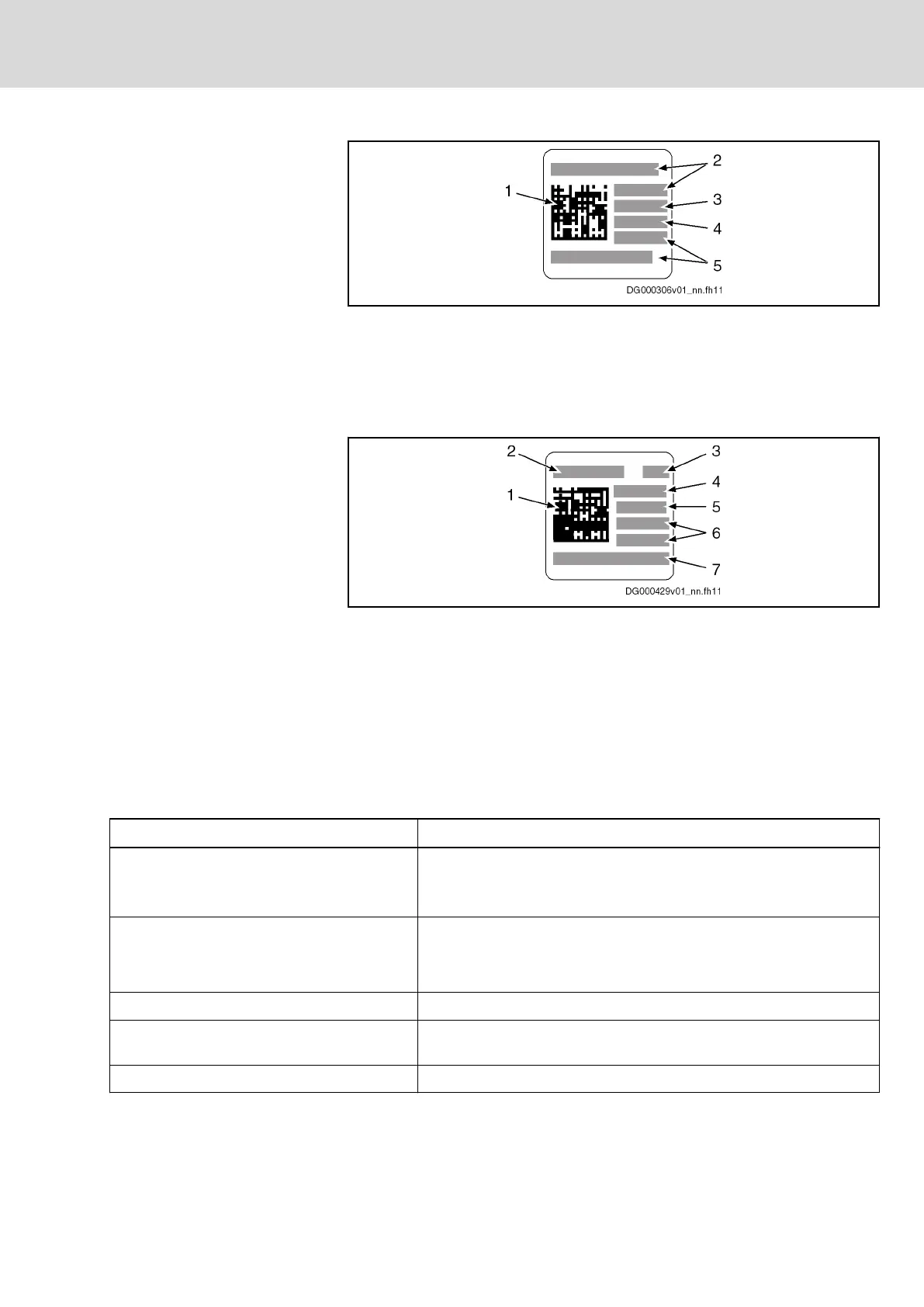

Type Plate (Firmware)
1 Bar code
2 Type
3 Factory identifier
4 Production week (example: 11W36 means: year 2011, week
36)
5 Part number
Fig. 5-3: Type Plate (Firmware)
Type Plate (Control Panel)
1 Bar code
2 Type
3 Hardware index
4 Factory identifier
5 Production week (example: 11W36 means: year 2011, week
36)
6 Part number
7 Serial number
Fig. 5-4: Type Plate (Control Panel)
5.2.2 Scope of supply
Standard To be ordered separately
Drive controller HCS01 DC bus connector X77 (DC bus connection; for HCS01.1E-W00xx-x-03
devices)
Order code: RLS0778/K06
Mounting and connection accessories HAS09 microSD memory card:
● PFM04.1-512-FW (with firmware)
● PFM04.1-512-NW (without firmware)
Connectors X3, X5, X6, X13, X31, X32, X47 Other accessories, such as SUP-E0x-MSM-BATTERYBOX
Touch guard X77 (DC bus connection; for
HCS01.1E-W00xx-x-03 devices)
Documentation
Tab. 5-2: Scope of supply HCS01
DOK-INDRV*-HCS01******-PR05-EN-P Bosch Rexroth AG 119/341
Rexroth IndraDrive CsDrive Systems with HCS01
Condition as supplied, identification, transport and storage
