Digital inputs (safety technology L options)
The digital inputs correspond to IEC 61131, type 2.

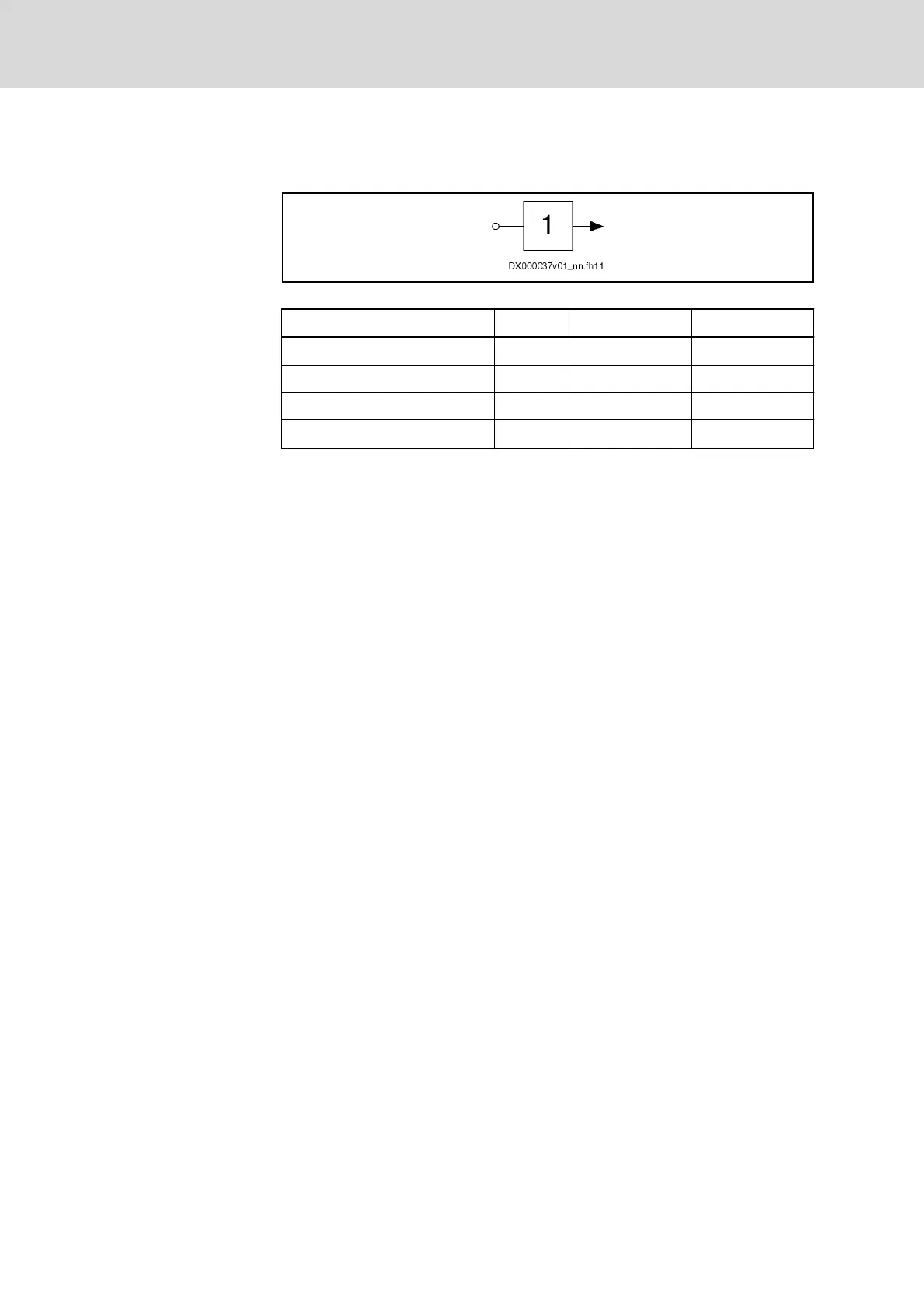

Fig. 7-29: Symbol
Data Unit Min. Max.
Allowed input voltage V -3 30
High V 11 30
Low V -3 5
Current consumption
1)
mA 7 15
1) For KCU02, the specified values must be multiplied with the
number of zone nodes of the drive line.
Tab. 7-29: Digital inputs (safety technology L options)
