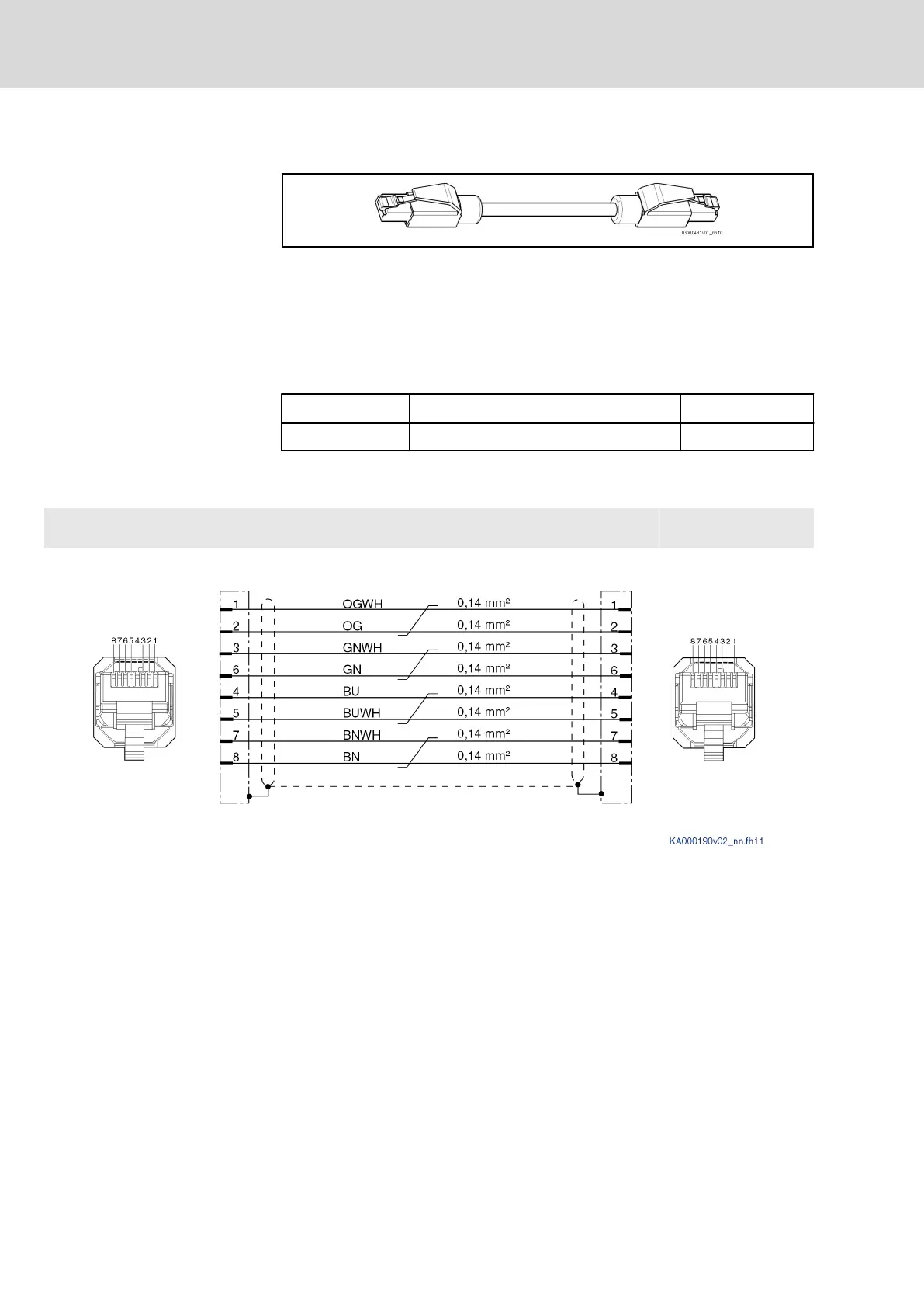

8.2.10 RKB0013, Multi-Ethernet Cable
Fig. 8-32: RKB0013
Use
Short cable for connecting a drive connection box KCU to a neighboring de‐
vice in the control cabinet.
Minimum bending radius: 30.75 mm
Length That Can Be Ordered, Or‐
der Code
Length Order code Parts number
0.55 m RKB0013/00,55 R911317801
Tab. 8-15: RKB0013
RKB0013
Plug-in connector bus Bulk cable Plug-in connector bus
RJ-45, 8-pin sercos III cable, 100-Base-T, CAT5E, shielded RJ-45, 8-pin
Use instruction: only fixed lengths
Tab. 8-16: Interconnection Diagram RKB0013
Bosch Rexroth AG DOK-INDRV*-HCS01******-PR05-EN-P280/341
Rexroth IndraDrive CsDrive Systems with HCS01
Cables, accessories, additional components
