Bosch Rexroth IndraDrive CsDrive System with HCS01 User Manual

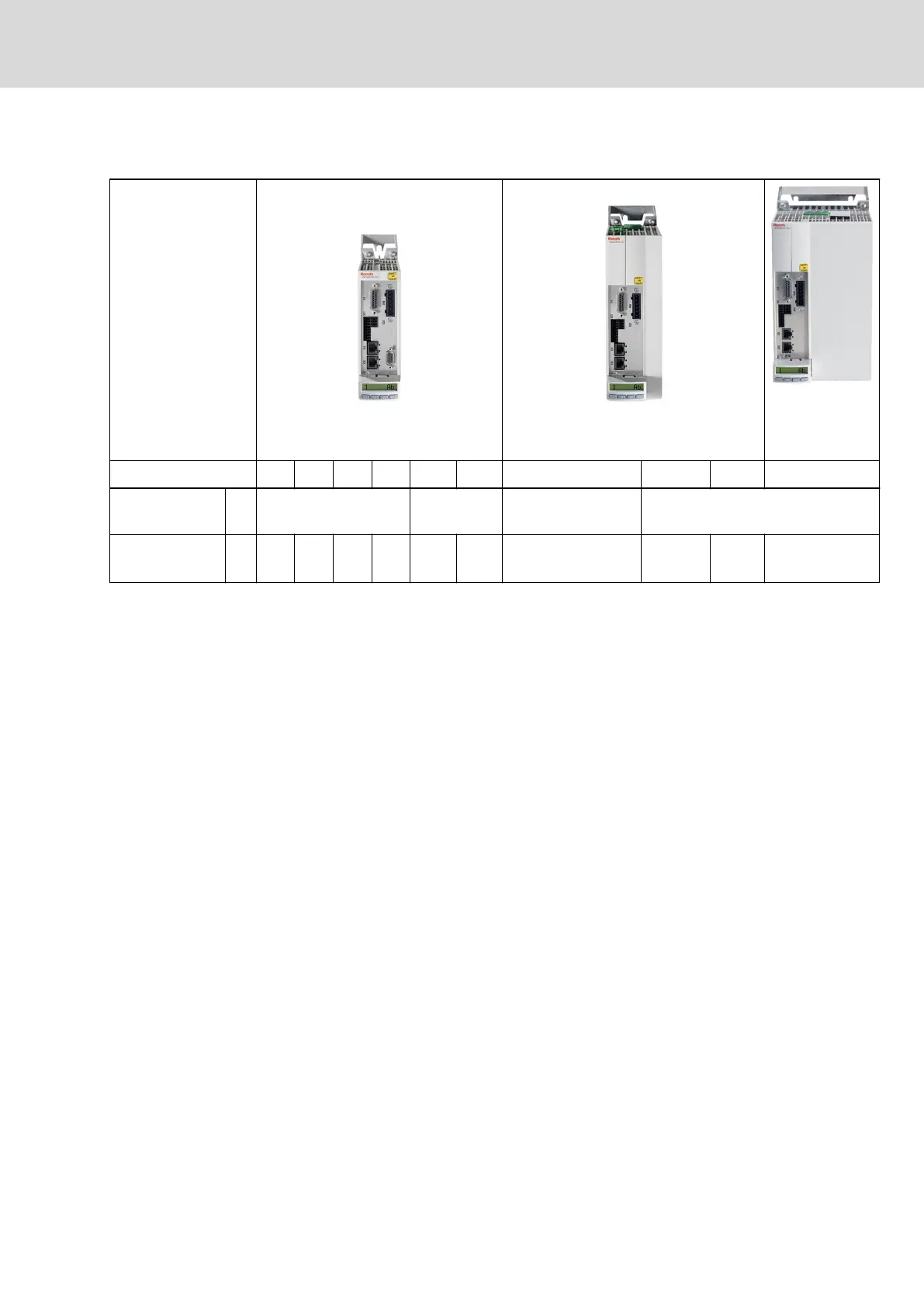

Performance features
Size 1
(Width: 50 mm; Height: 215 mm)
Size 2
(Width: 70 mm; Height: 268 mm)
Size 3
(Width: 130 mm;
Height: 268 mm)
HCS01.1E-W00… → 03 06 09 13 05 08 18-A-02 18-A-03 28 54
Mains connec‐
tion voltage
V 3 AC 110 … 230 V* 3 AC 200 …
500 V**
3 AC 110 … 230 V* 3 AC 200 … 500 V**
Maximum cur‐
rent
A
rm
s
3,3 6,0 9,0 13,0 5,0 8,0 18,0 18,0 28,0 54,0
* Single-phase operation allowed; for HCS01.1E-W0013 and
HCS01.1E-W0018-A-02 with derating
** Single-phase operation not allowed
Tab. 1-4: Converter HCS01 - Performance Features
