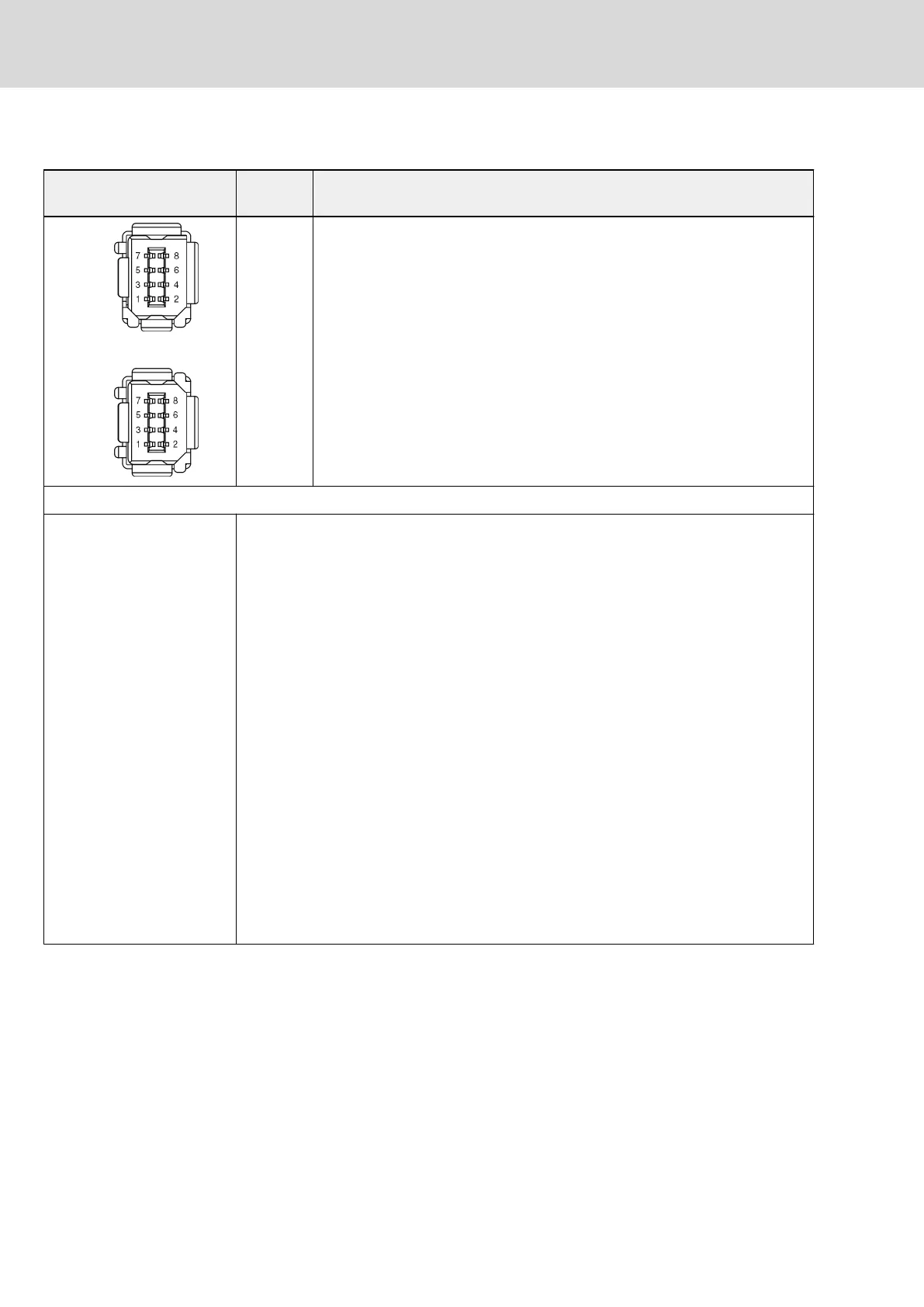

X42, X43, Safe Motion safety technology (communication)
View Identifica‐
tion
Function
X42:
X43:
X42
X43
Connection points for connecting the HSZ01
1)
safety zone module and the
safety zone nodes:
X42: Input
X43: Output
Connection cable ● Maximum total length of all cables of a safety zone: 2500 m
● Maximum length of one cable between two connection points: 100 m
● Number of safety zone nodes (without HSZ01):
– Maximum: 35
– Minimum: 1
● Ready-made cables that can be ordered:
– RKB0051
Short cables to connect devices arranged side by side in the control cabinet.
Available lengths: 0.19 m; 0.25 m; 0.35 m; 0.55 m
Minimum bending radius: 4xD (= 4x6 mm = 24 mm)
Order code for a 0.55 m long cable: RKB0051/00,55
– RKB0052
Long cables to connect remote communication nodes, also outside of the con‐
trol cabinet.
Available lengths: 1 m; 2 m; 5 m
Minimum bending radius: 8xD (= 8x6 mm = 48 mm)
Order code for a 5 m long cable: RKB0052/005,0
Flexible installation of the cable is not allowed.
1) See Project Planning Manual "IndraDrive Additional Compo‐
nents and Accessories" (R911306140).
Tab. 6-30: X42, X43
Bosch Rexroth AG DOK-INDRV*-HCS01******-PR05-EN-P168/341
Rexroth IndraDrive CsDrive Systems with HCS01
Mounting and installation
