I [mA] Encoder current consumption
l [m] Cable length
0.5 mm
2
; 1.0 mm
2
Line cross sections

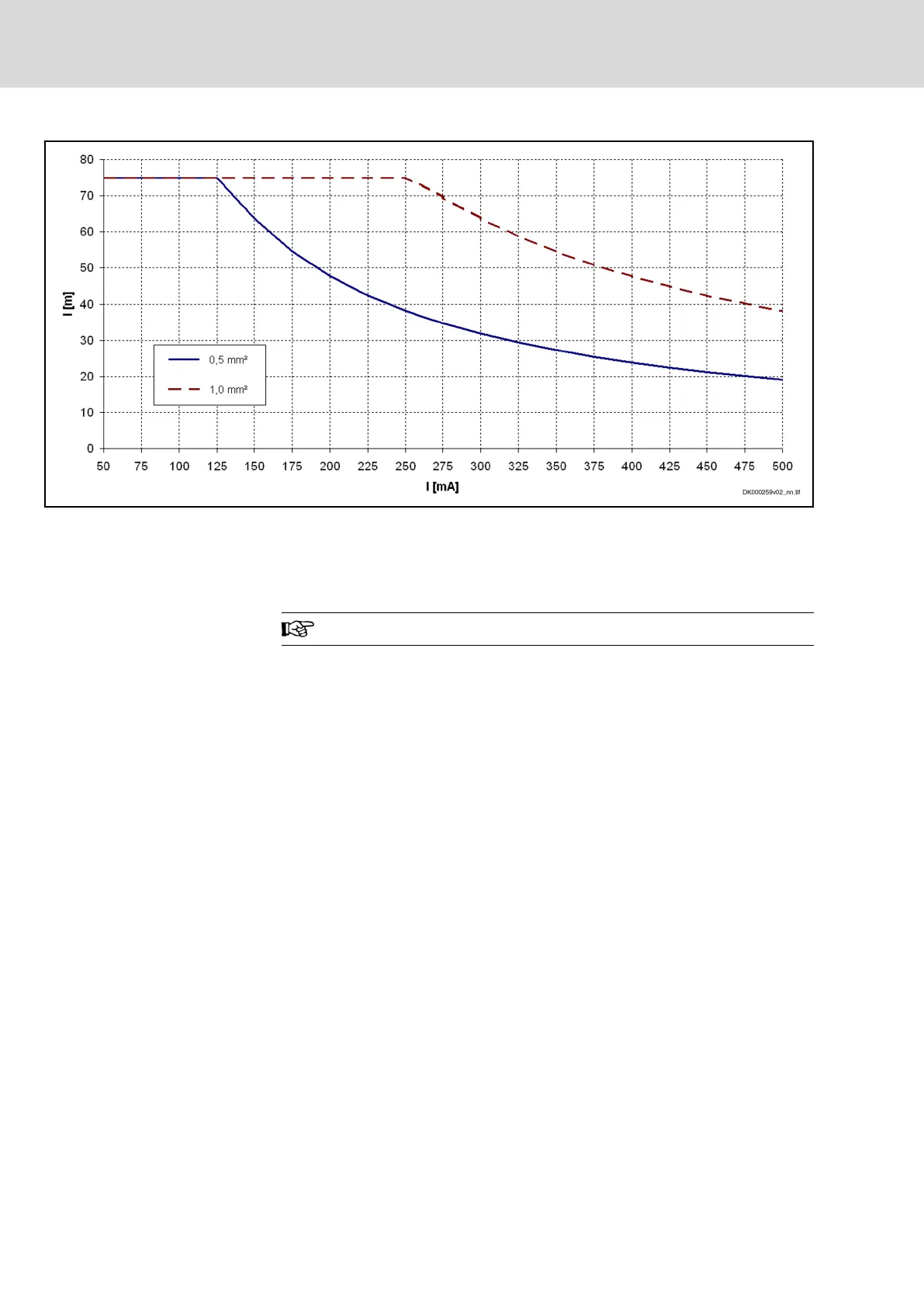

Fig. 7-15: Maximum allowed encoder cable lengths for 12 V encoder systems
depending on line cross section at supply voltage of 10 V
Nominal current consumption of the MSK motor encoders: 60 mA
Allowed encoder cable length for
resolver encoder systems
75 m at most (The cross section of the supply voltage lines has to be at least
0.5 mm
2
.)
Bosch Rexroth AG DOK-INDRV*-HCS01******-PR05-EN-P198/341
Rexroth IndraDrive CsDrive Systems with HCS01
Technical data of the components
