Assignment HLR01.2 to HCS01
Braking resistor
HLR01.2N-…
Drive controller
HCS01.1E-W00…
0K06-N100R-E-003 03, 06, 09, 13
0K06-N180R-E-007 05, 08
01K0-N68R0-E-007 18-02
18-03, 28
01K0-N28R0-E-007 54

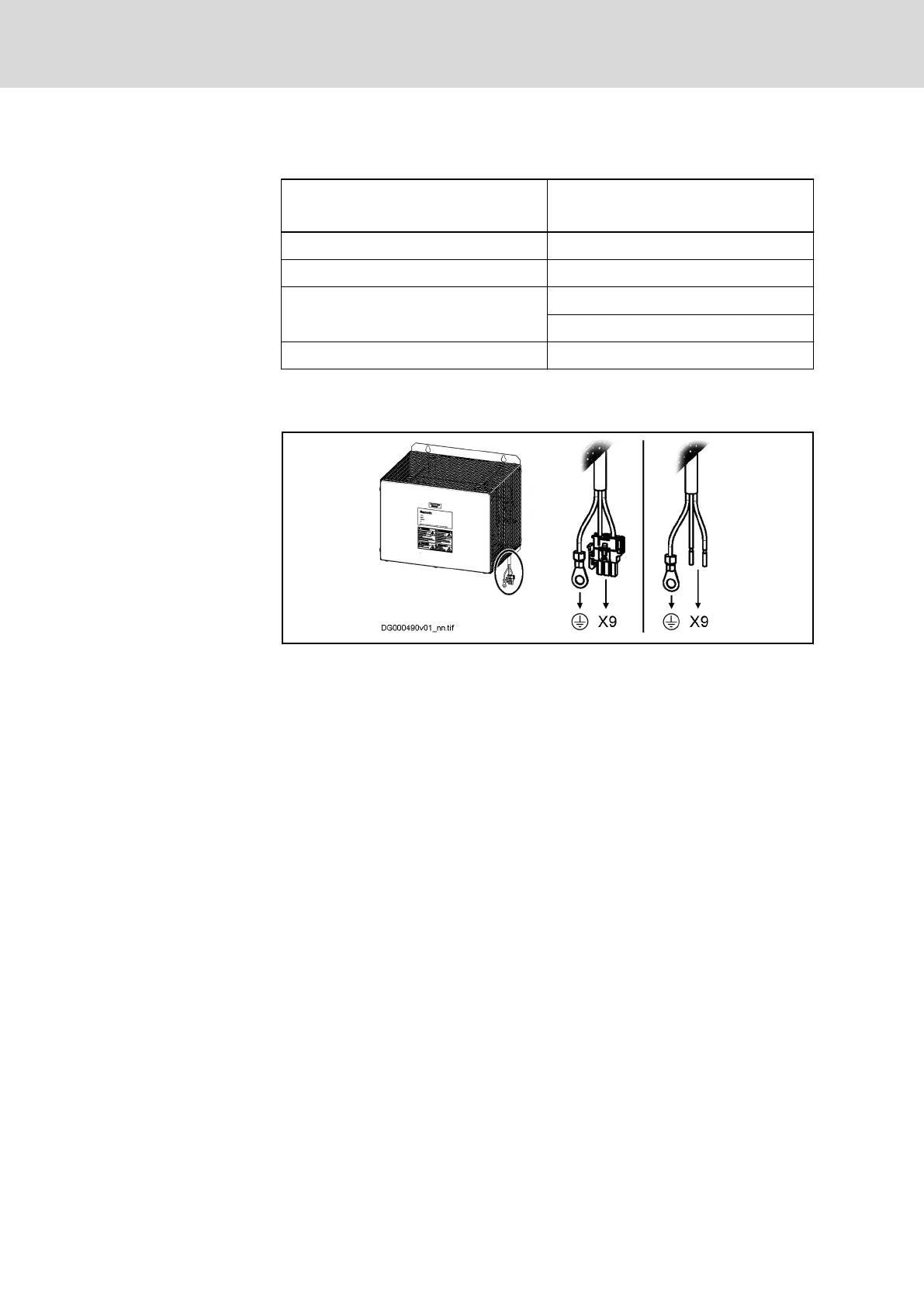

Tab. 8-35: Assignment HLR01.2 to HCS01
Installation
Connection
Fig. 8-55: Connection
When installing the braking resistor, observe the instructions given in the de‐
scription of connection point X9.
Snap-on ferrite
The accessory HAS05.1-015-NNN-NN (snap-on ferrite) ensures that
Class C3 of the EMC Directive EN 61800-3 is complied with for braking resis‐
tors installed outside of the control cabinet.
The snap-on ferrite is designed for the following components:
■ HCS01.1E-W0018 + HLR01.2N-01K0-N68R0-E-007
■ HCS01.1E-W0028 + HLR01.2N-01K0-N68R0-E-007
■ HCS01.1E-W0054 + HLR01.2N-01K0-N28R0-E-007
Bimetal protection relay
Using a bimetal protection relay you can establish overload protection for ex‐
ternal braking resistors.
Integrate the isolated N/C contact of the relay in the control circuit for mains
connection. See also chapter "Control Circuit for the Mains Connection" on
page 104.
Bosch Rexroth AG DOK-INDRV*-HCS01******-PR05-EN-P306/341
Rexroth IndraDrive CsDrive Systems with HCS01
Cables, accessories, additional components
