Bosch Rexroth IndraDrive CsDrive System with HCS01 User Manual

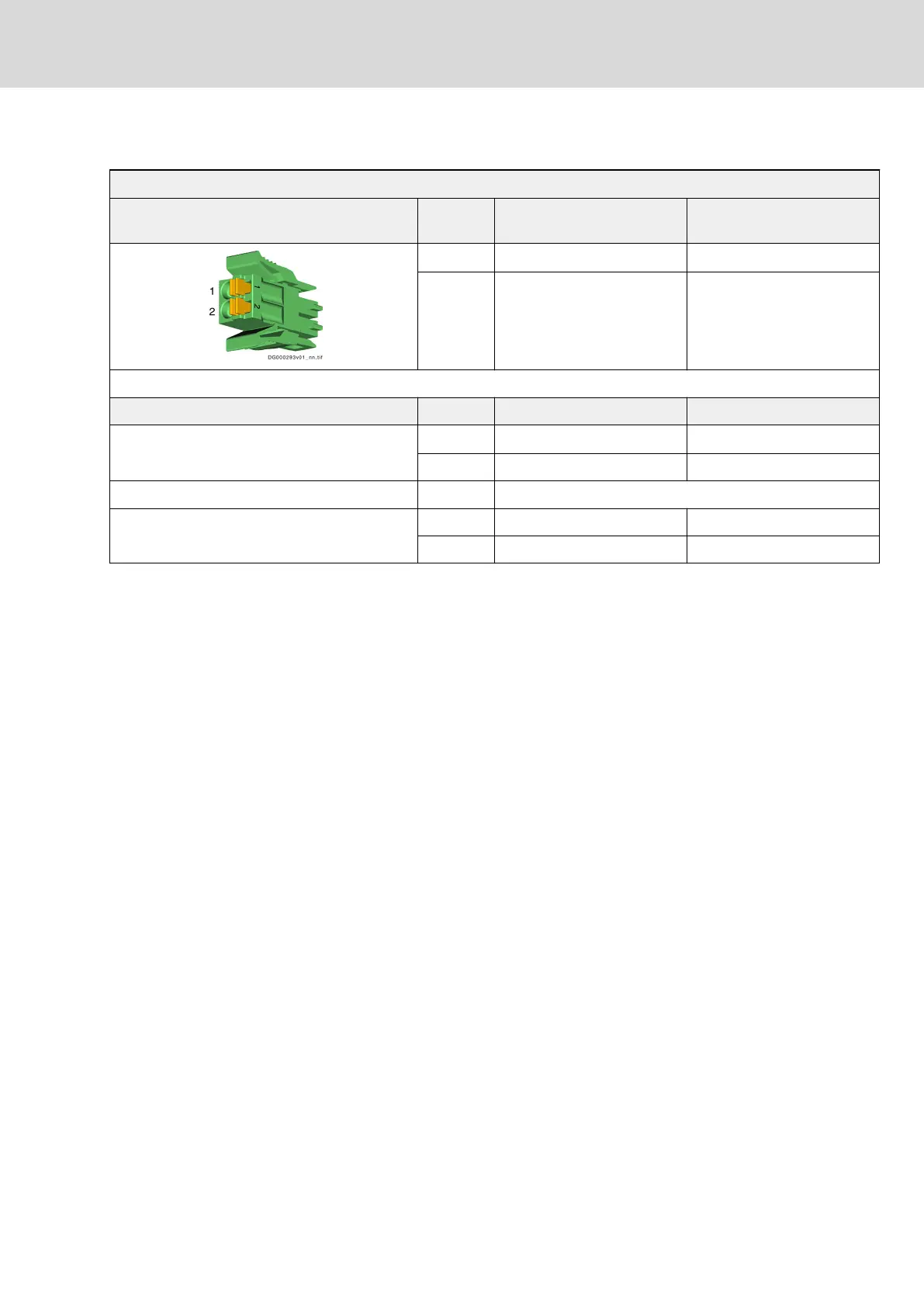

X47, Bb relay contact, module bus
HCS01.1E-xxxxx-x-02
View Connec‐
tion
Signal name Function
1 Rel1
Bb relay contact
1)
2 Rel2
Bb relay contact
1)
Spring terminal (connector) Unit min. max.
Connection cable
Stranded wire
mm
2
0.2 1.5
AWG 24 16
Stripped length mm 10
Contact rating V 30
A 0.01 1
1) Wire the Bb relay contact in the control circuit for mains con‐
nection (see chapter "Control Circuit for the Mains Connection"
on page 104). When the contact opens, the mains contactor
must interrupt the power supply.
Tab. 6-17: Function, pin assignment, properties
Technical data
chapter "Relay Contact Type 2" on page 229
DOK-INDRV*-HCS01******-PR05-EN-P Bosch Rexroth AG 149/341
Rexroth IndraDrive CsDrive Systems with HCS01
Mounting and installation
