1.2 System configuration
1.2.1 System structure
* Optional
24V Control voltage supply
COM Communication
DST Autotransformer
F Fuses
HCS01 Converter
HLC DC bus capacitor unit (for devices with DC bus connection)
HLR External braking resistor
HNL Mains choke
NF Mains filter
K1 External mains contactor
M Motor
RB Integrated braking resistor (at the back of the drive controller)

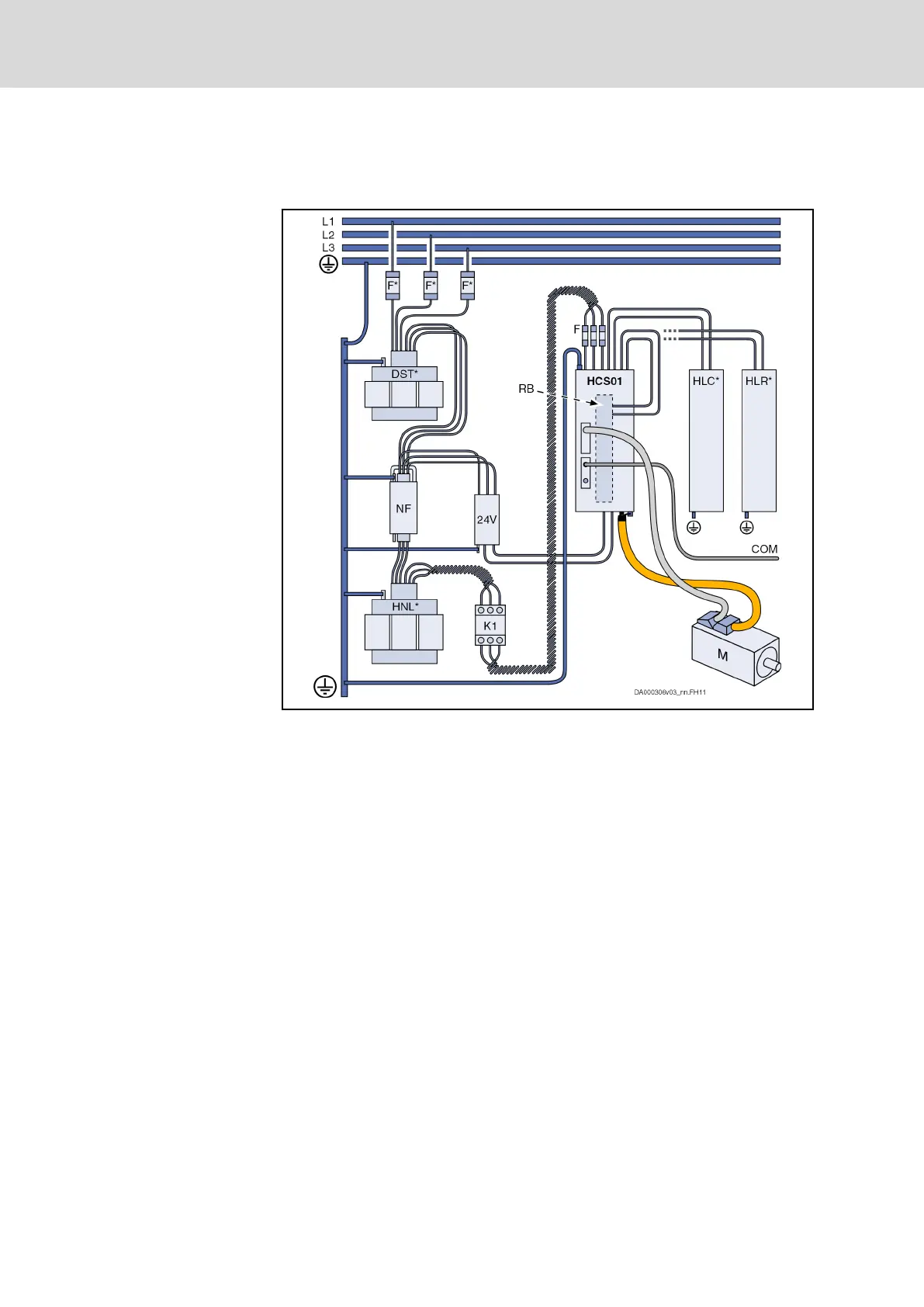

Fig. 1-1: Drive System Rexroth IndraDrive Cs
