Bosch Rexroth IndraDrive CsDrive System with HCS01 User Manual

7.1.2 EM - encoder emulation
Cables
Data Symbol Unit max.
Length (shielded cable)
l
shield
m 40
Length (unshielded cable)
l
unshield
m 30
Capacitance C pF/m 60
Tab. 7-8: Cables
Incremental encoder emulation
Connection

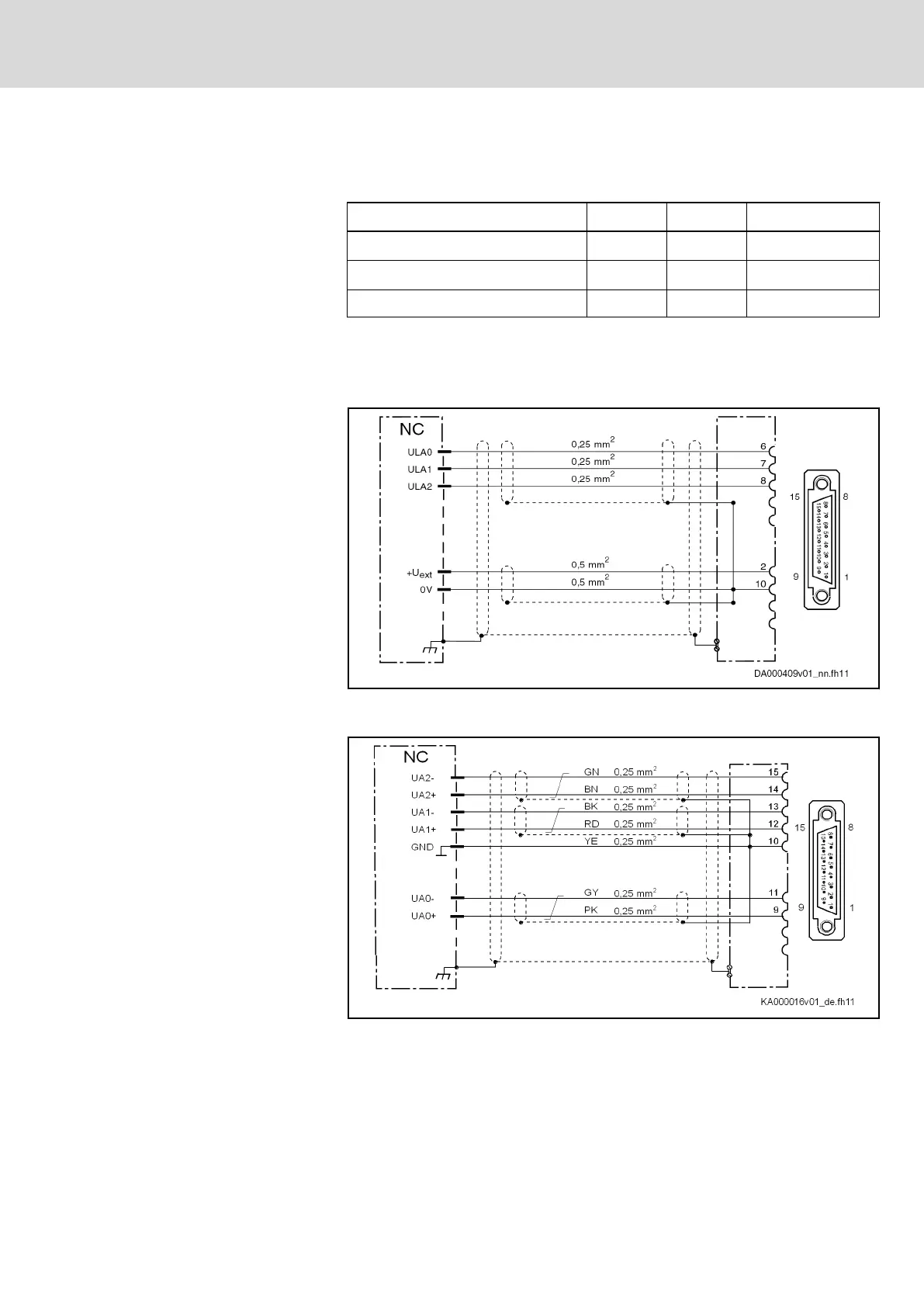

Fig. 7-19: Incremental encoder with signal level conversion (single-ended)
Fig. 7-20: Incremental encoder (RS422)
DOK-INDRV*-HCS01******-PR05-EN-P Bosch Rexroth AG 203/341
Rexroth IndraDrive CsDrive Systems with HCS01
Technical data of the components
