8.2.11 Hall Sensor Adapter Box (SHL03.1-NNN-S-NNN)
Use
The Hall sensor adapter box "SHL03.1-NNN-S-NNN" (material number:
R911335257) is used to operate linear MCL motors. The Hall sensor adapter
box processes signals of the following systems:
● Digital Hall sensor
● Length measuring system
The Hall sensor adapter box transmits the signals for encoder evaluation to
the drive controller.
The housing is made of sheet steel and has the degree of protection IP20.
For detailed information on linear MCL motors, see the documentation
"Rexroth IndraDyn L, Ironless Linear Motors MCL" (R911330592).
Dimensions

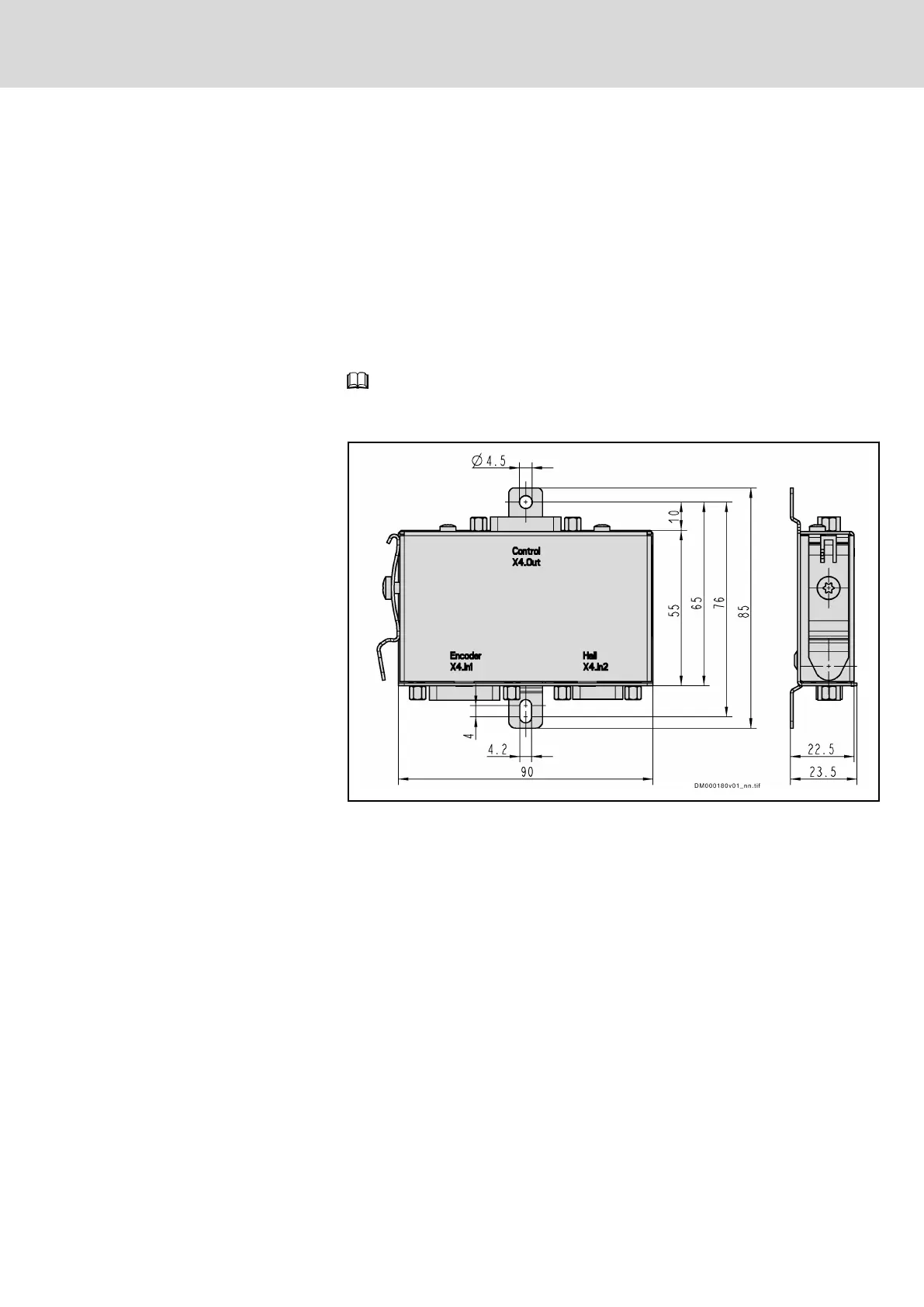

Fig. 8-33: Dimensions
Mounting
Options for mounting:
● Top-hat rail (TH 35-7.5 according to EN 60715)
● With 2 screws (M4) to the mounting surface; select the appropriate
screw type and length for the mounting surface
The mounting position can be selected as desired.
DOK-INDRV*-HCS01******-PR05-EN-P Bosch Rexroth AG 281/341
Rexroth IndraDrive CsDrive Systems with HCS01
Cables, accessories, additional components
