Module bus cable shield connection
Use shielded cables for the module bus in the following cases:
● An individual module bus connection is > 0.5 m long.
● All drive system module bus connections together are > 3 m long.
The HAS09.1-001 accessories contain parts for assembling shielded module
bus cables:
● Heat shrink tubing (3 × 20 mm)
● Self-adhesive copper tape (1 × 30 mm)
Use shielded cables of a conductor size ≥ 2 × 0.5 mm
2
.
Observe the data of connection point X47.

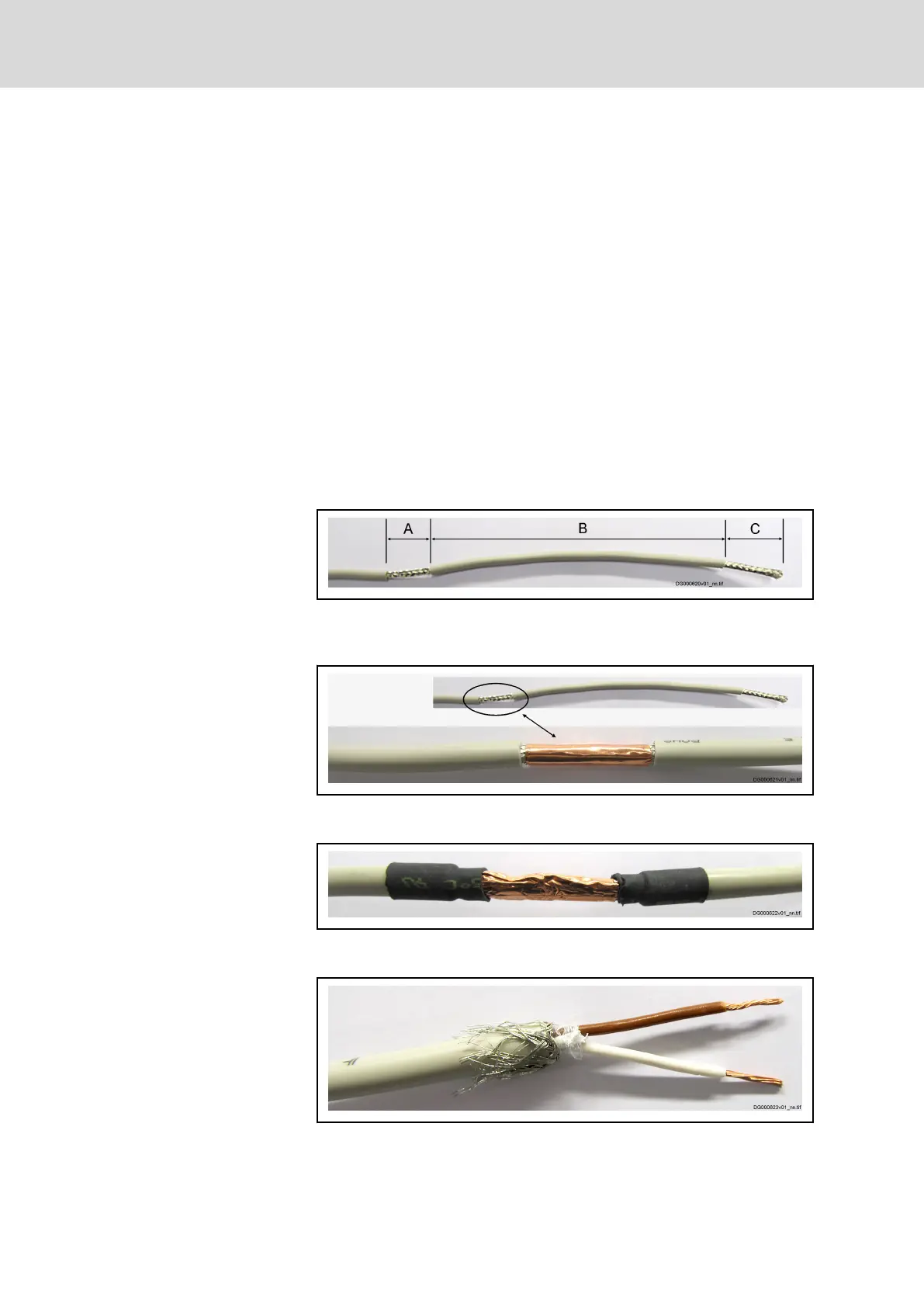

Assembling cables:
1. Strip cable: A = 24 mm, B = 180 mm, C = 35 mm
Fig. 8-5: Stripping the cable
2. Remove protective foil, then wrap self-adhesive copper tape around
shield braid.
Fig. 8-6: Copper tape
3. Put 2 heat shrink tubings on cable and shrink them.
Fig. 8-7: Heat shrink tubing
4. Fold back shield braid over cable jacket and strip wire ends.
Fig. 8-8: Shield braid, wire ends
Bosch Rexroth AG DOK-INDRV*-HCS01******-PR05-EN-P256/341
Rexroth IndraDrive CsDrive Systems with HCS01
Cables, accessories, additional components
