8.2.2 DC Bus Connector (RLS0778/K06)
Use
Connector for connecting
● the DC buses of several HCS01.1E-W00xx-x-03 drive controllers
● an HCS01.1E-W00xx-x-03 drive controller to a DC bus capacitor unit

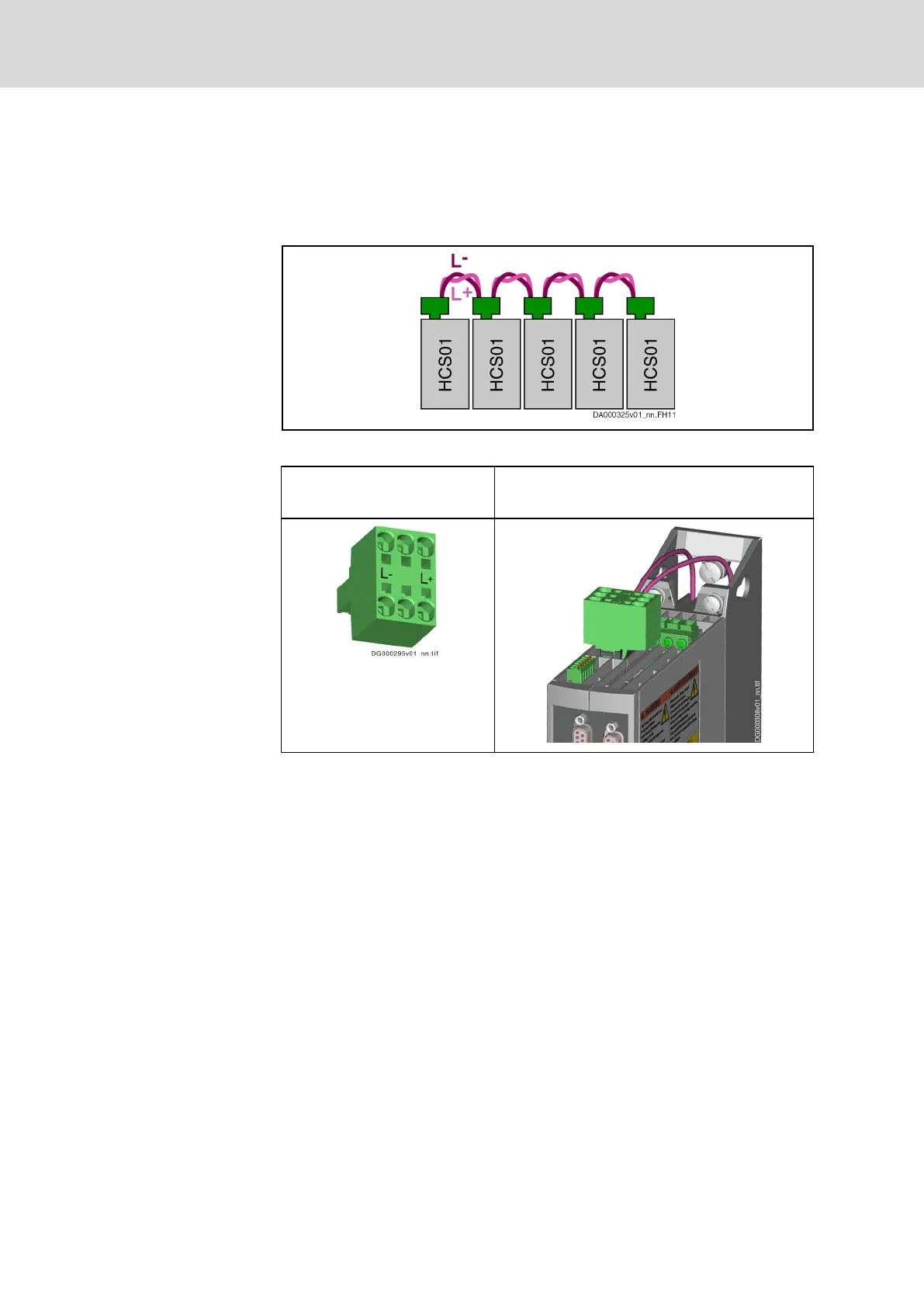

Fig. 8-11: Connecting the DC Buses via DC Bus Connectors
DC bus connector DC bus connector at device
(connection point X77)
Order code:
RLS0778/K06
Tab. 8-5: DC Bus Connector
Bosch Rexroth AG DOK-INDRV*-HCS01******-PR05-EN-P258/341
Rexroth IndraDrive CsDrive Systems with HCS01
Cables, accessories, additional components
