TTL (12 V supply voltage)
See the connection diagram for how to connect the encoder system.
Connection diagram
1) Line cross section ≥ 0.5 mm²; observe allowed encoder cable
length
2) Line cross section ≥ 0.14 mm²

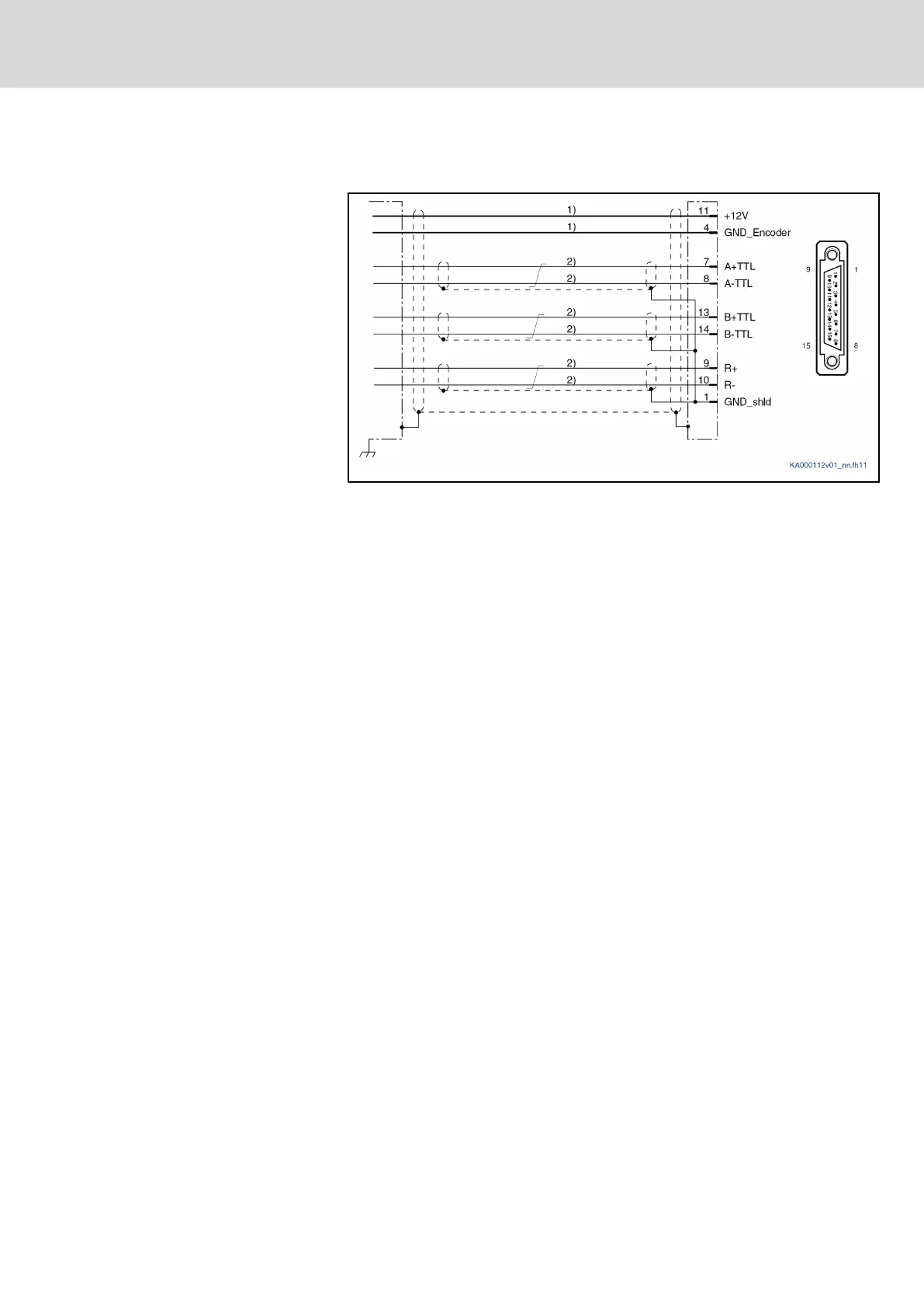

Fig. 7-8: TTL encoder system connection diagram
Power supply
12 V (the voltage is made available via the EC interface)
Technical specification of the power supply: See chapter "12 V power supply"
on page 195
Cable length
The maximum allowed cable length depends on several factors: See chapter
"Encoder cable length" on page 197
DOK-INDRV*-HCS01******-PR05-EN-P Bosch Rexroth AG 189/341
Rexroth IndraDrive CsDrive Systems with HCS01
Technical data of the components
