Description Symbol Unit Value

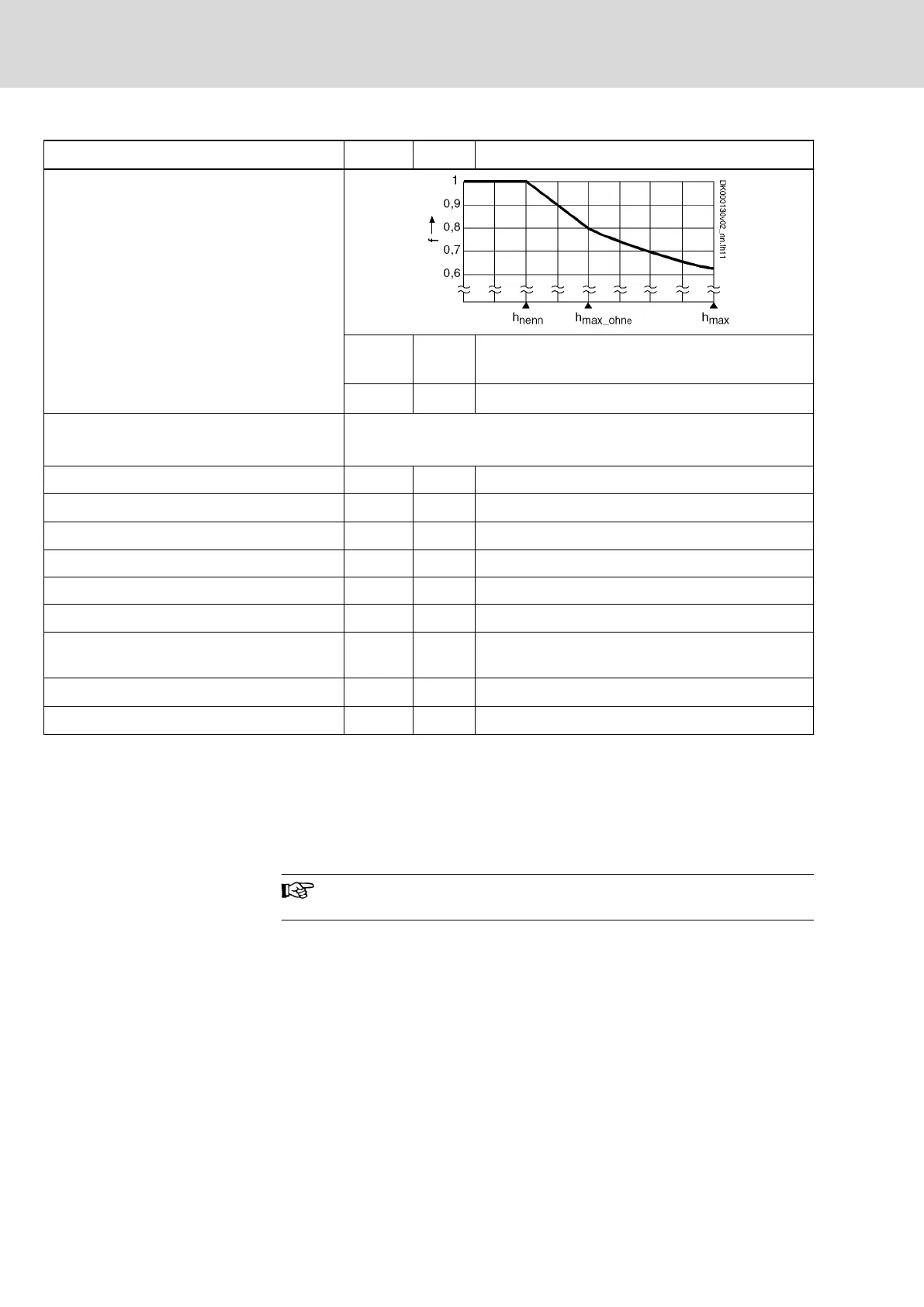

Derating vs. installation altitude:
At an installation altitude h > h
nom
, the perform‐
ance data
2)
reduced by factor f is available.
At an installation altitude in the range h
max_with‐
out
to h
max
, an isolating transformer has to be
installed on the drive system mains connec‐
tion.
Use above h
max
is not allowed!
h
max_with‐
out
m 2000
h
max
m 4000
Simultaneous derating for ambient tempera‐
ture and installation altitude
Allowed;
reduce with factors f and f
Ta
Relative humidity % 5 … 95
Absolute humidity
g/m
3
1 … 29
Moisture condensation Not allowed
Climatic category (IEC 721) 3K3
Allowed pollution degree (EN 50178) 2
Allowed dust, steam EN 50178 Tab. A.2
Vibration sine: Amplitude (peak-peak) at
10 … 57 Hz
1)
mm 0.15
Vibration sine: Acceleration at 57 … 150 Hz
1)
g 1
Overvoltage category III (according to IEC 60664-1)
1) According to EN 60068-2-6
2) Reduced performance data for drive controllers: permitted DC
bus continuous power, permitted mains voltage, braking resis‐
tor continuous power, continuous current
Tab. 4-13: Ambient and operating conditions
4.4.2 Control cabinet design and cooling
The only mounting position allowed for supply units and drive
controllers to be installed in control cabinets is G1.
Bosch Rexroth AG DOK-INDRV*-HCS01******-PR05-EN-P56/341
Rexroth IndraDrive CsDrive Systems with HCS01
Combining the individual components
