7.2 Control panel
7.2.1 Design
Standard control panel HAP01.1N
For a detailed description of the control panel, see the documen‐
tation "Application Manual, Functions" of the firmware used.

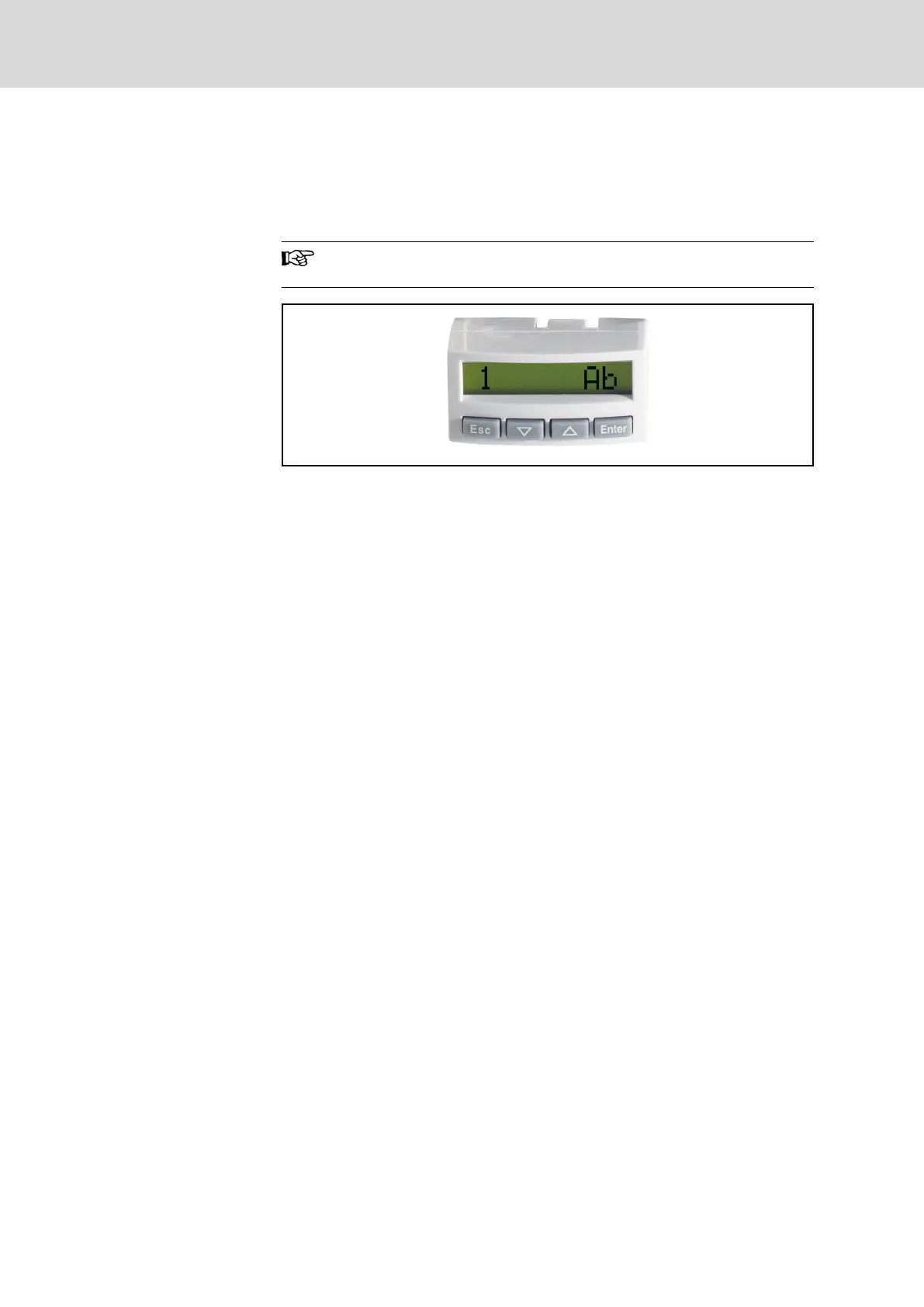

Fig. 7-35: Standard control panel HAP01.1N
Description
The standard control panel
● has a single-line display
● must have been plugged in when the drive controller is switched on so
that it can be recognized (not suited for hot plug)
● can be used as programming module
● The display shows operating states, command and error diagnoses and
pending warnings.
● Using the four keys, the commissioning engineer or service technician
can have extended diagnoses displayed and trigger simple commands.
● Memory
– 400 kbytes for MLD boot program
– 492 bytes for MLD retain variables
Bosch Rexroth AG DOK-INDRV*-HCS01******-PR05-EN-P230/341
Rexroth IndraDrive CsDrive Systems with HCS01
Technical data of the components
