Bosch Rexroth IndraDrive CsDrive System with HCS01 User Manual

6.2.2 Connection points

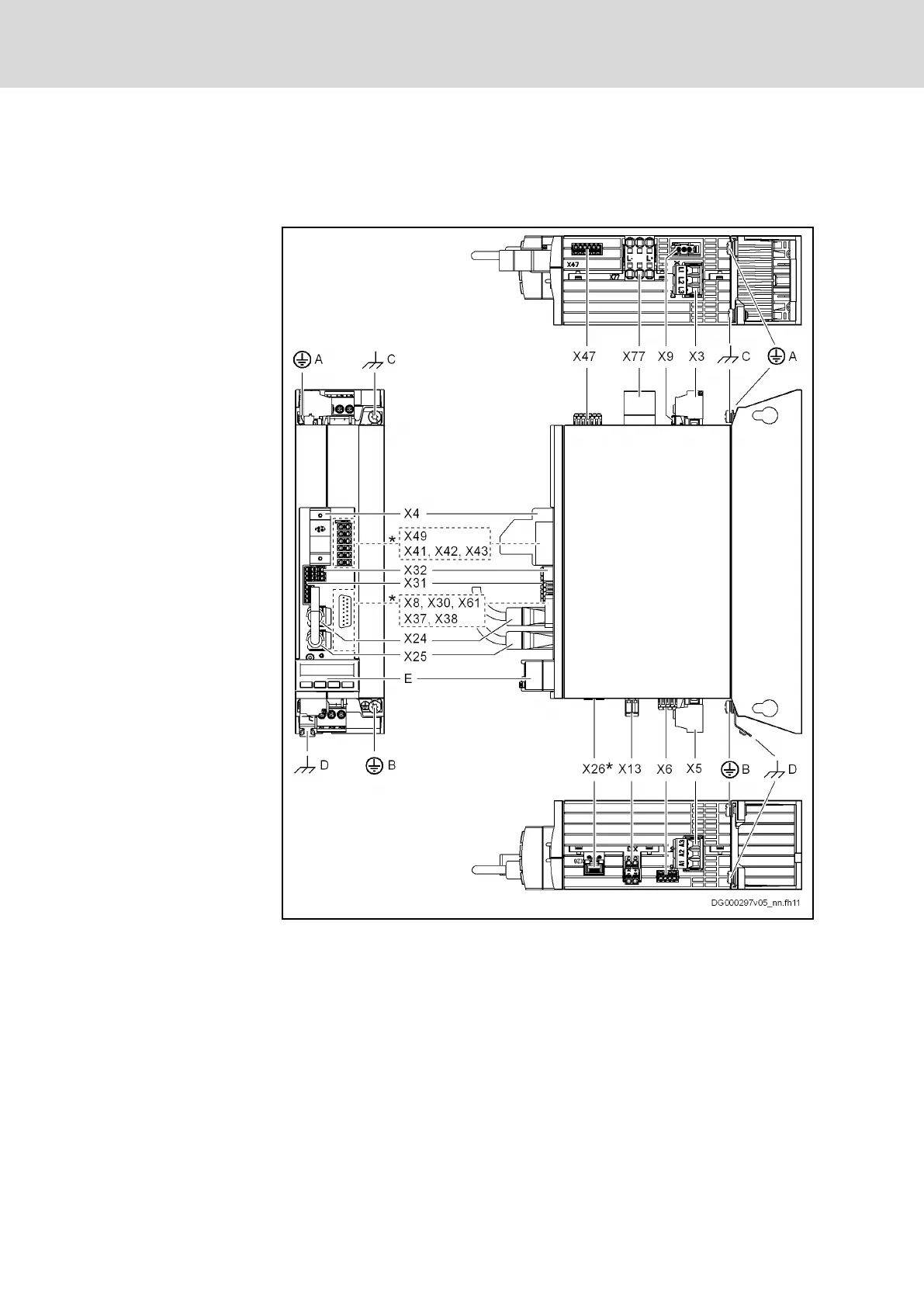

Arrangement of the HCS01 connection points
HCS01 connection points (ECONOMY, BASIC)
* Optional connection point
A Connection point of equipment grounding conductor, mains
B Connection point of equipment grounding conductor, motor
C Control line shield connection
D Motor cable shield connection
E Control panel
X3 Mains connection
X4 Motor encoder
X5 Motor connection
X6 Motor temperature monitoring, motor holding brake
X8 Encoder evaluation (EC option); encoder emulation (EM op‐
tion)
X9 Integrated/external braking resistor
X13 24V supply (control voltage)
Bosch Rexroth AG DOK-INDRV*-HCS01******-PR05-EN-P124/341
Rexroth IndraDrive CsDrive Systems with HCS01
Mounting and installation
