Bosch Rexroth IndraDrive CsDrive System with HCS01 User Manual

4 Combining the individual components
4.1 Documentations
See chapter "Documentations" on page 25
4.2 Brief description of individual components
4.2.1 HCS01 - brief description and design
Brief description
The compact converters HCS01 are part of the Rexroth IndraDrive Cs prod‐
uct range and are used to operate Rexroth IndraDyn motors or third-party
motors.
HCS01 types:
● 02: Mains connection voltage 3 AC 110 … 230 V
● 03: Mains connection voltage 3 AC 200 … 500 V

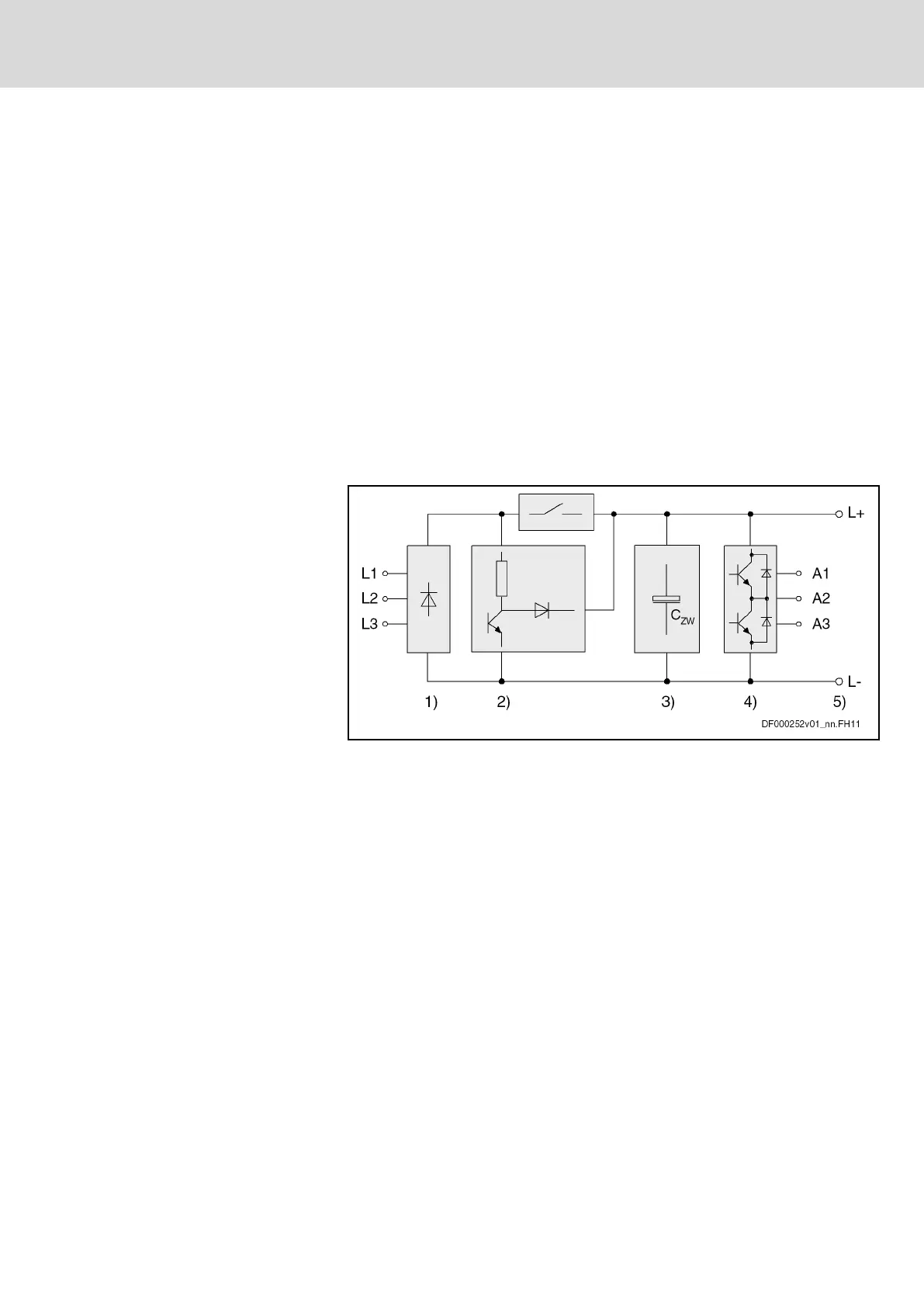

Design, block diagram
1) Mains input with rectifier
2) Braking resistor circuit; charging current limitation
3) DC bus capacitances
4) Inverter stage with output to motor
5) DC bus connection
Fig. 4-1: HCS01 block diagram
4.3 Configuring the drive system
4.3.1 Converter
The selection of the appropriate converter depends on
● Mains type
● Mains Voltage
● Mains supply (1-phase or 3-phase)
DOK-INDRV*-HCS01******-PR05-EN-P Bosch Rexroth AG 41/341
Rexroth IndraDrive CsDrive Systems with HCS01
Combining the individual components
