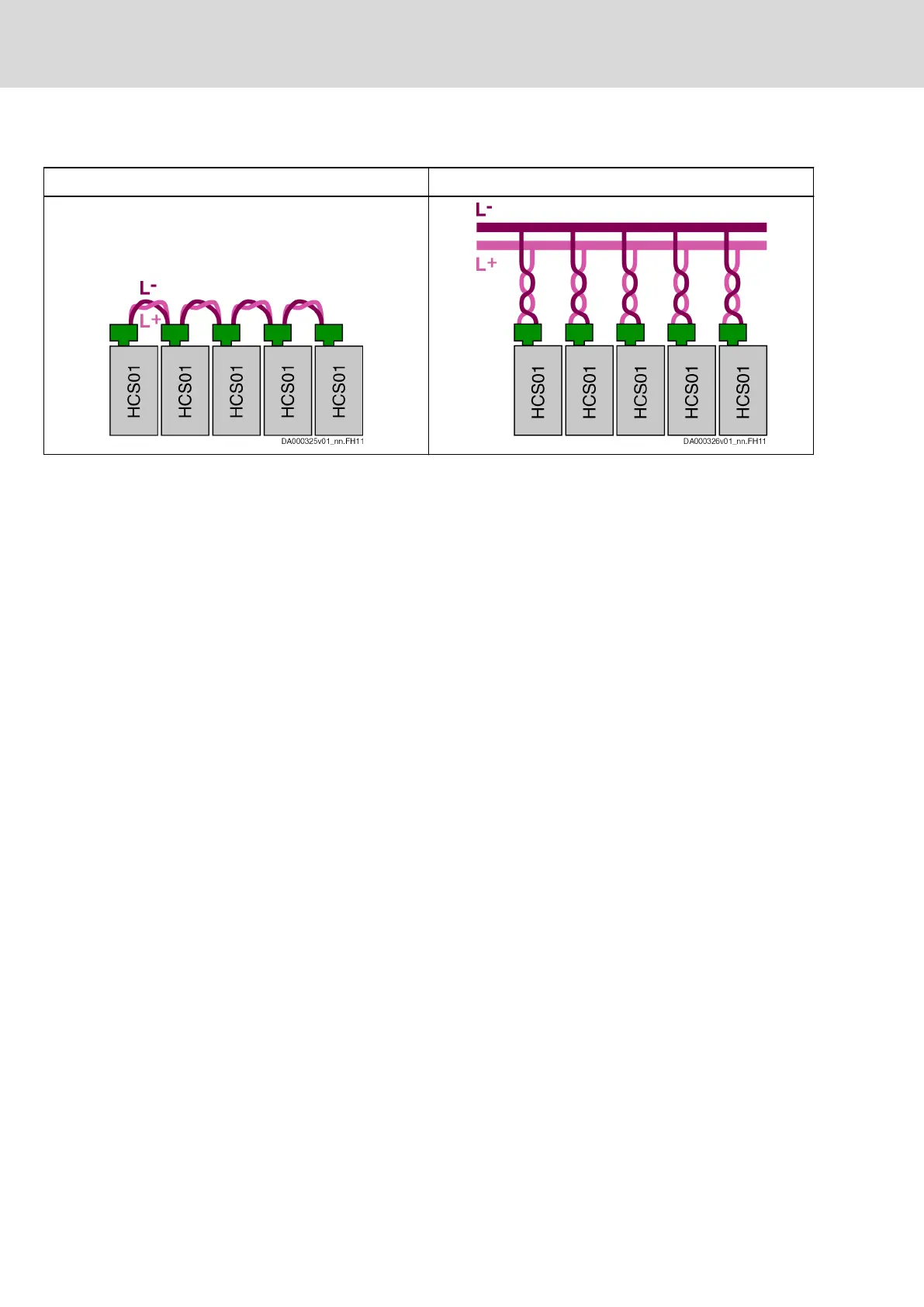

Options for interconnecting the DC buses of several devices:
Direct connection Indirect connection via connecting bars
Tab. 6-21: DC Bus Connection
Bosch Rexroth AG DOK-INDRV*-HCS01******-PR05-EN-P154/341
Rexroth IndraDrive CsDrive Systems with HCS01
Mounting and installation
