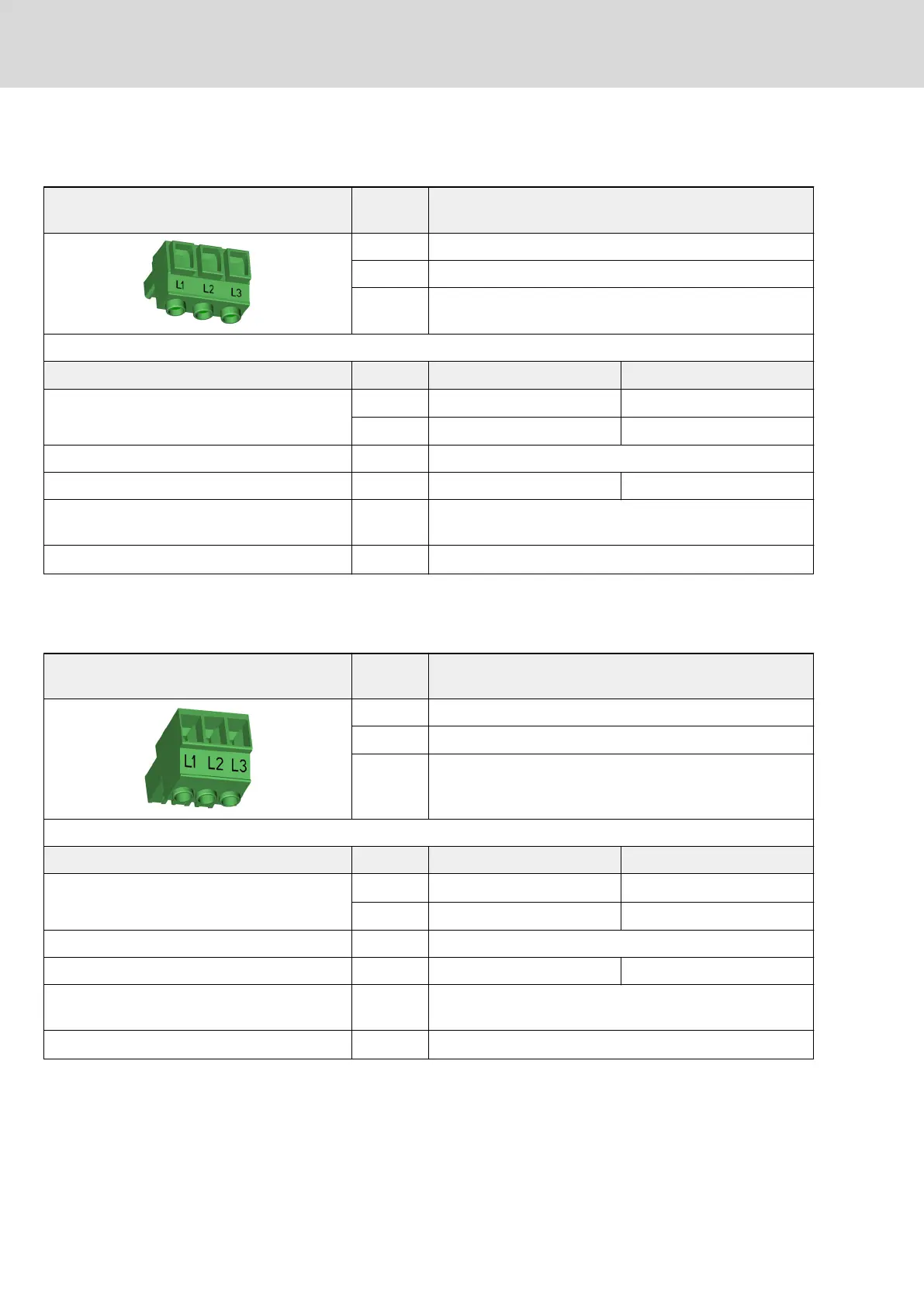

X3, mains connection HCS01.1E-W0003...W0013-x-02, -W0005-x-03,
-W0008-x-03
View Identifica‐
tion
Function
L1 Connection to mains power supply (L1)
L2 Connection to mains power supply (L2)
L3 Connection to mains power supply (L3)
Terminal block Unit min. max.
Connection cable
Stranded wire
mm
2
0.25 2.5
AWG 24 14
Stripped length mm 8
Tightening torque Nm 0.5 0.6
Occurring current load and minimum required
connection cross section
See technical data of device used (I
LN
and A
LN
)
Occurring voltage load See technical data of device used (U
LN
or U
LN_nom
)
Tab. 6-1: Function, pin assignment, properties
X3, mains connection HCS01.1E-W0018-x-02, -W0018-x-03, -W0028-
x-03
View Identifica‐
tion
Function
L1 Connection to supply mains (L1)
L2 Connection to supply mains (L2)
L3 Connection to supply mains (L3)
Terminal block Unit Min. Max.
Connection cable
Stranded wire
mm
2
0,25 6,0
AWG 24 10
Stripped length mm 10
Tightening torque Nm 0,5 0,8
Occurring current load and minimum required
connection cross section
See technical data of device used (I
LN
and A
LN
)
Occurring voltage load See technical data of device used (U
LN
or U
LN_nenn
)
Tab. 6-2: Function, Pin Assignment, Properties
Bosch Rexroth AG DOK-INDRV*-HCS01******-PR05-EN-P130/341
Rexroth IndraDrive CsDrive Systems with HCS01
Mounting and installation
