8.2.8 Encoder cable for MSM motors with absolute value encoder M5
(RKG0065)

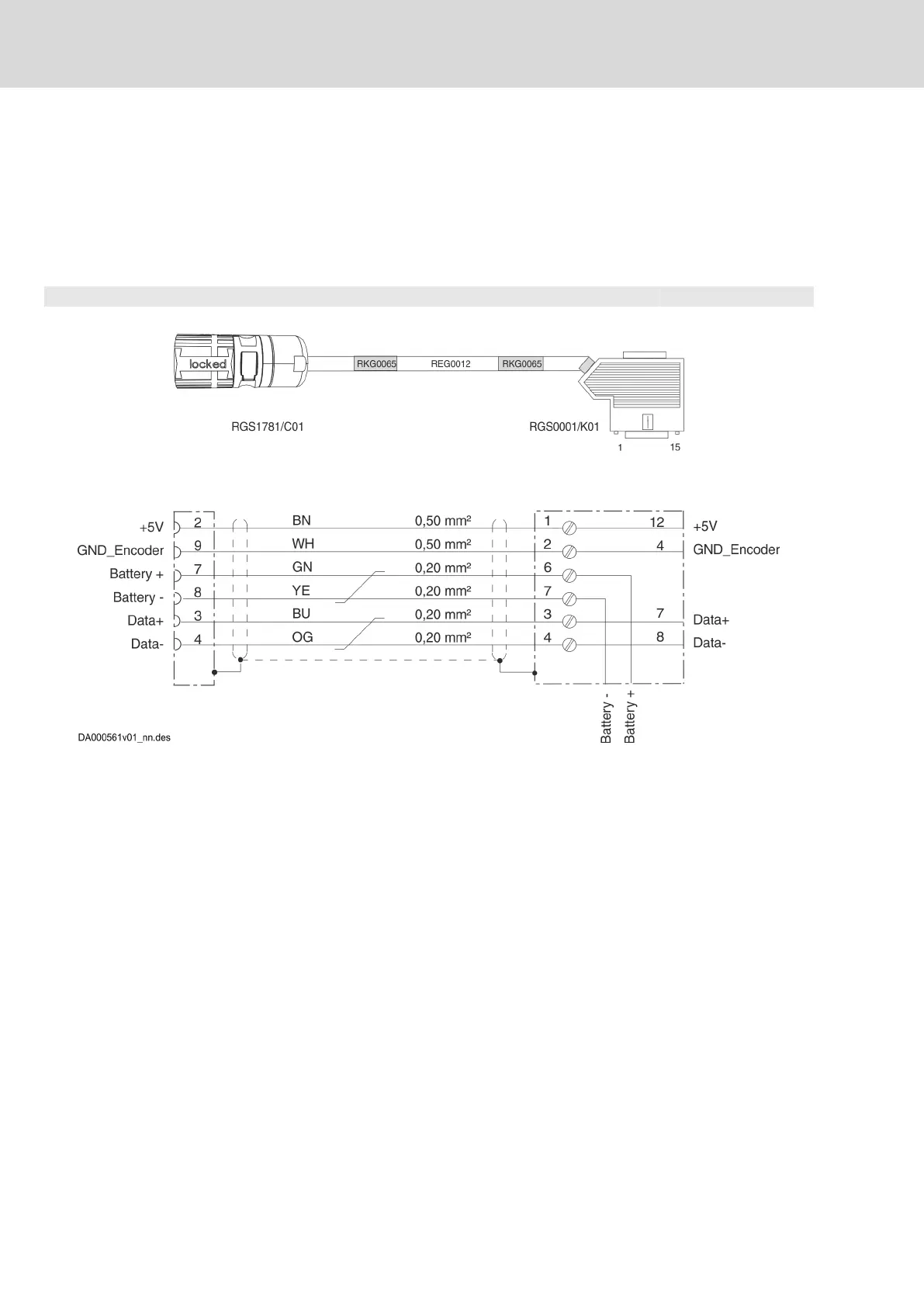

The RKG0065 encoder cable (mat. no.: R911347431) is used to operate
MSM motors with absolute value encoder M5. The encoder cable is connec‐
ted to the encoder evaluation of the drive controller via a D-Sub connector
with integrated 4-pin spring terminal (RGS0001/K01).
Encoder connection Bulk cable HCS01 connection
Tab. 8-12: RKG0065
Bosch Rexroth AG DOK-INDRV*-HCS01******-PR05-EN-P278/341
Rexroth IndraDrive CsDrive Systems with HCS01
Cables, accessories, additional components
