7.1.3 ET - Multi-Ethernet
Display elements
A Two unicolor port LEDs
Identification: e.g. H10, H11, H12, H13
B Multicolor diagnostic LED
Identification: e.g. H24, NET ST

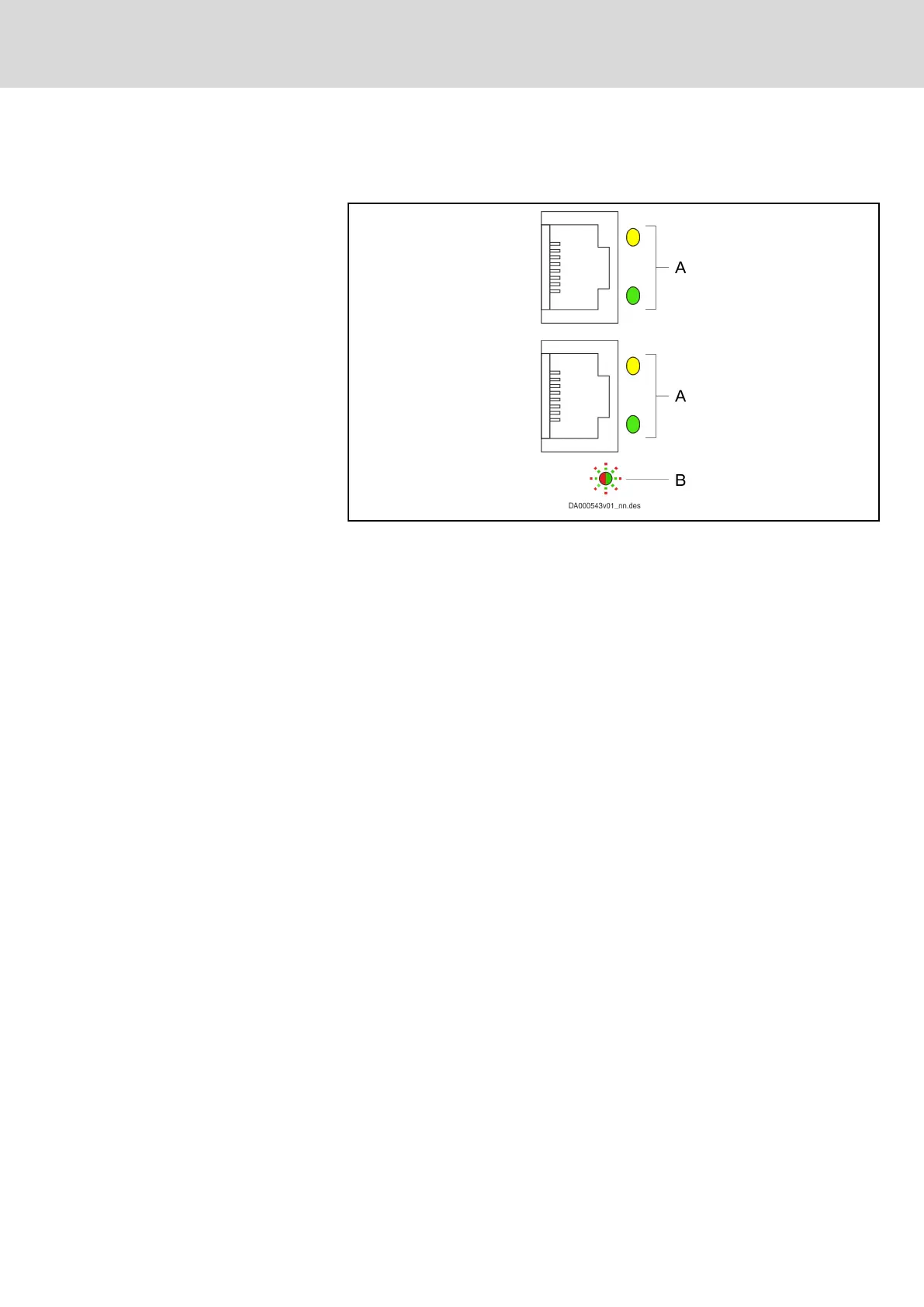

Fig. 7-24: ET, display elements
The LED display depends on the field bus system.
Port LED
● chapter "EtherNet/IP" on page 208
● chapter "EtherCAT" on page 208
● chapter "sercos III" on page 208
● chapter "PROFINET IO" on page 209
Diagnostic LED
● chapter "EtherNet/IP" on page 210
● chapter "EtherCAT" on page 211
● chapter "sercos III" on page 212
● chapter "PROFINET IO" on page 213
DOK-INDRV*-HCS01******-PR05-EN-P Bosch Rexroth AG 207/341
Rexroth IndraDrive CsDrive Systems with HCS01
Technical data of the components
