X9, integrated/external braking resistor
Lethal electric shock by live parts with more
than 50 V!
Exclusively operate the device
● with plugged on connectors (even if there haven't been any lines con‐
nected to the connectors) and
● with connected equipment grounding conductor!
Function
X9 is used to connect the integrated or external braking resistor HLR. By
means of an internal switch, the braking resistor is connected to the DC bus.
Parameterize the external braking resistor by means of the firm‐
ware to protect the drive controller and the braking resistor
against overload:
● P-0-0860, Converter configuration
● P-0-0858, Data of external braking resistor
Connection (HCS01.1E-W0003…
W0028)

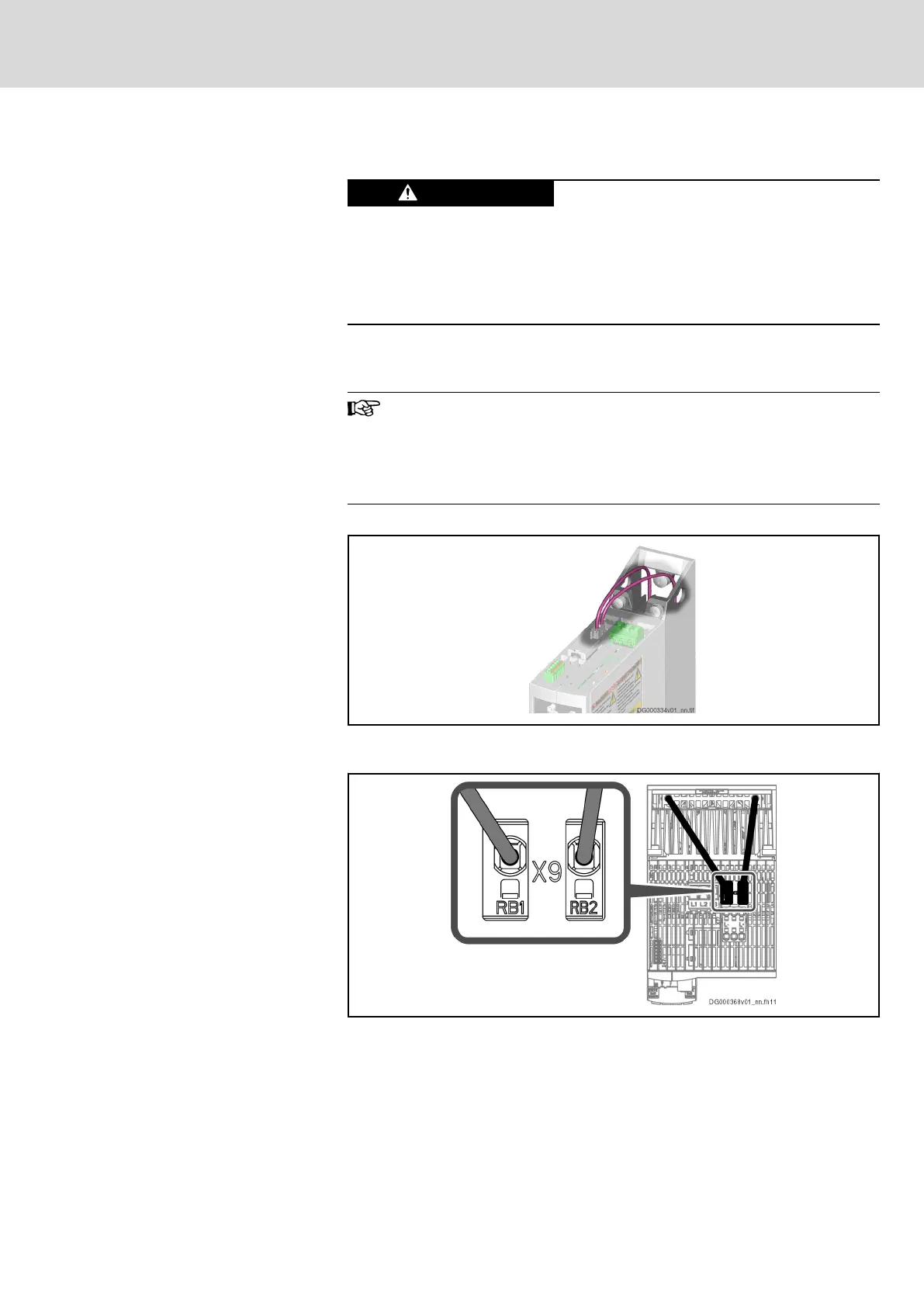

Fig. 6-7: Connecting the braking resistor (HCS01.1E-W0003…W0028)
Connection (HCS01.1E-W0054)
Fig. 6-8: Connecting the braking resistor (HCS01.1E-W0054)
Notes on installation
Maximum allowed line length to external braking resistor: 5 m
Twist unshielded lines.
DOK-INDRV*-HCS01******-PR05-EN-P Bosch Rexroth AG 141/341
Rexroth IndraDrive CsDrive Systems with HCS01
Mounting and installation
