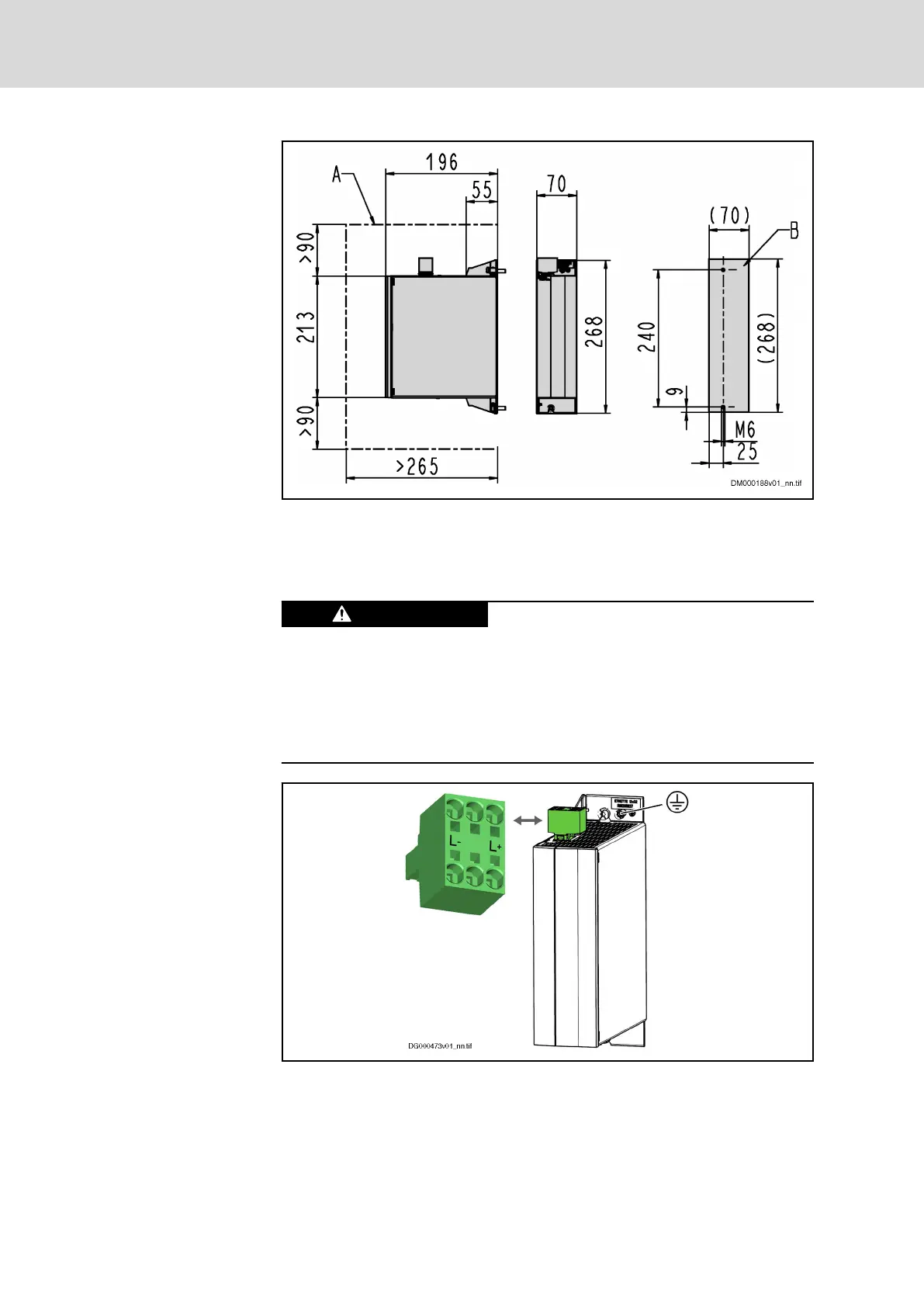

Dimensions
A Minimum mounting clearance
B Boring dimensions
Fig. 8-59: Dimensions
Connection
Lethal electric shock by live parts with more
than 50 V!
Before working on live parts: De-energize installation and secure power
switch against unintentional or unauthorized re-energization.
Wait at least 30 minutes after switching off the supply voltages to allow dis‐
charging.
Check whether voltage has fallen below 50 V before touching live parts!
Fig. 8-60: Connection points (DC Bus (L+ L-), equipment grounding conductor)
Bosch Rexroth AG DOK-INDRV*-HCS01******-PR05-EN-P310/341
Rexroth IndraDrive CsDrive Systems with HCS01
Cables, accessories, additional components
