Properties

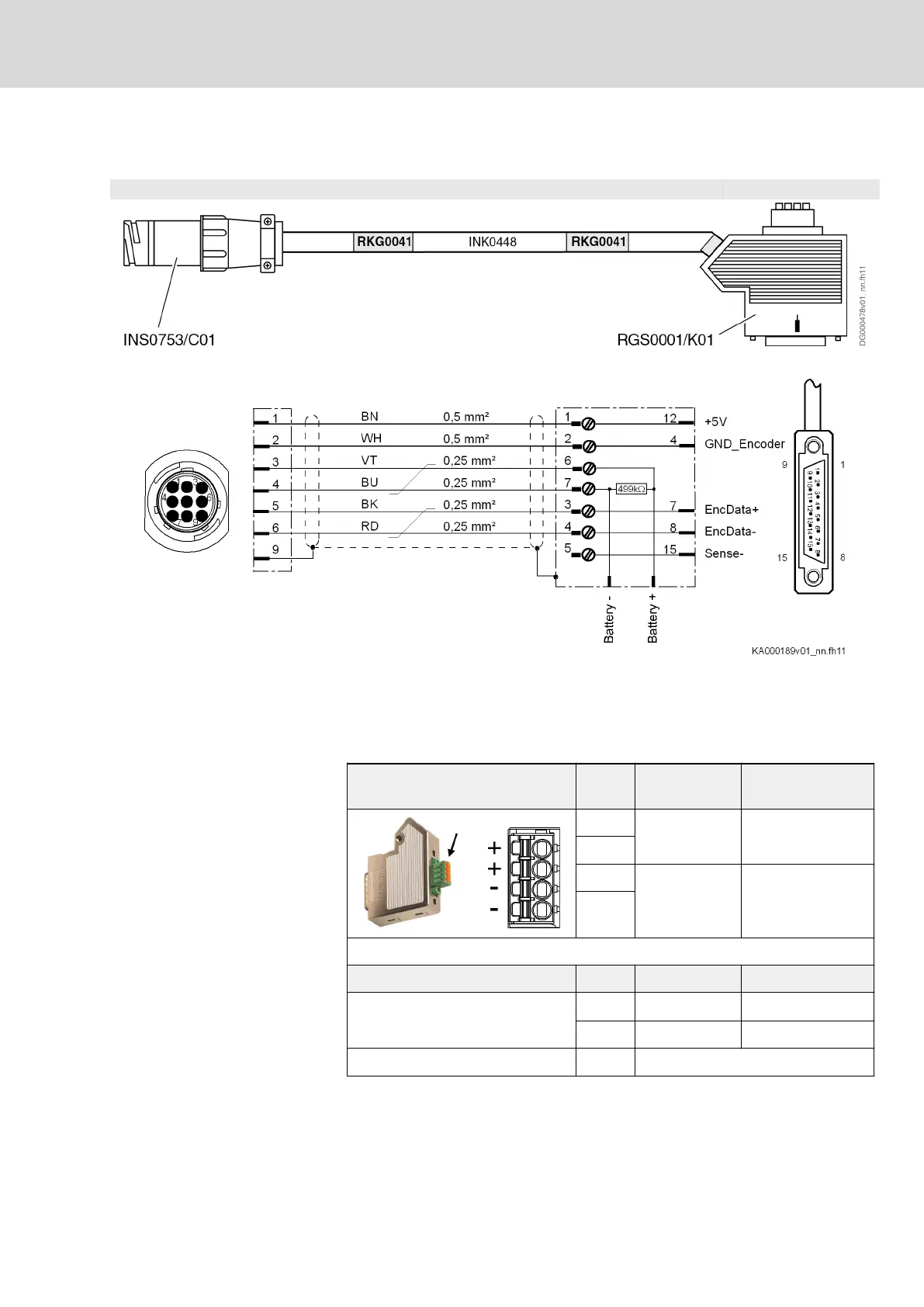

Encoder connection Bulk cable HCS01 connection
Tab. 8-9: RKG0041
Length
40 m at most (reason: no Sense line active).
Spring terminal
View Con‐
nection
Signal name Function
+ +3.6V Voltage input
+
- 0V Reference potential
-
Spring terminal (connector) Unit min. max.
Connection cable
Stranded wire
mm
2
0.2 1.5
AWG 24 16
Stripped length mm 10
Tab. 8-10: Spring terminal
DOK-INDRV*-HCS01******-PR05-EN-P Bosch Rexroth AG 269/341
Rexroth IndraDrive CsDrive Systems with HCS01
Cables, accessories, additional components
