Bosch Rexroth IndraDrive CsDrive System with HCS01 User Manual

8.2.9 RKB0011, Multi-Ethernet Cable

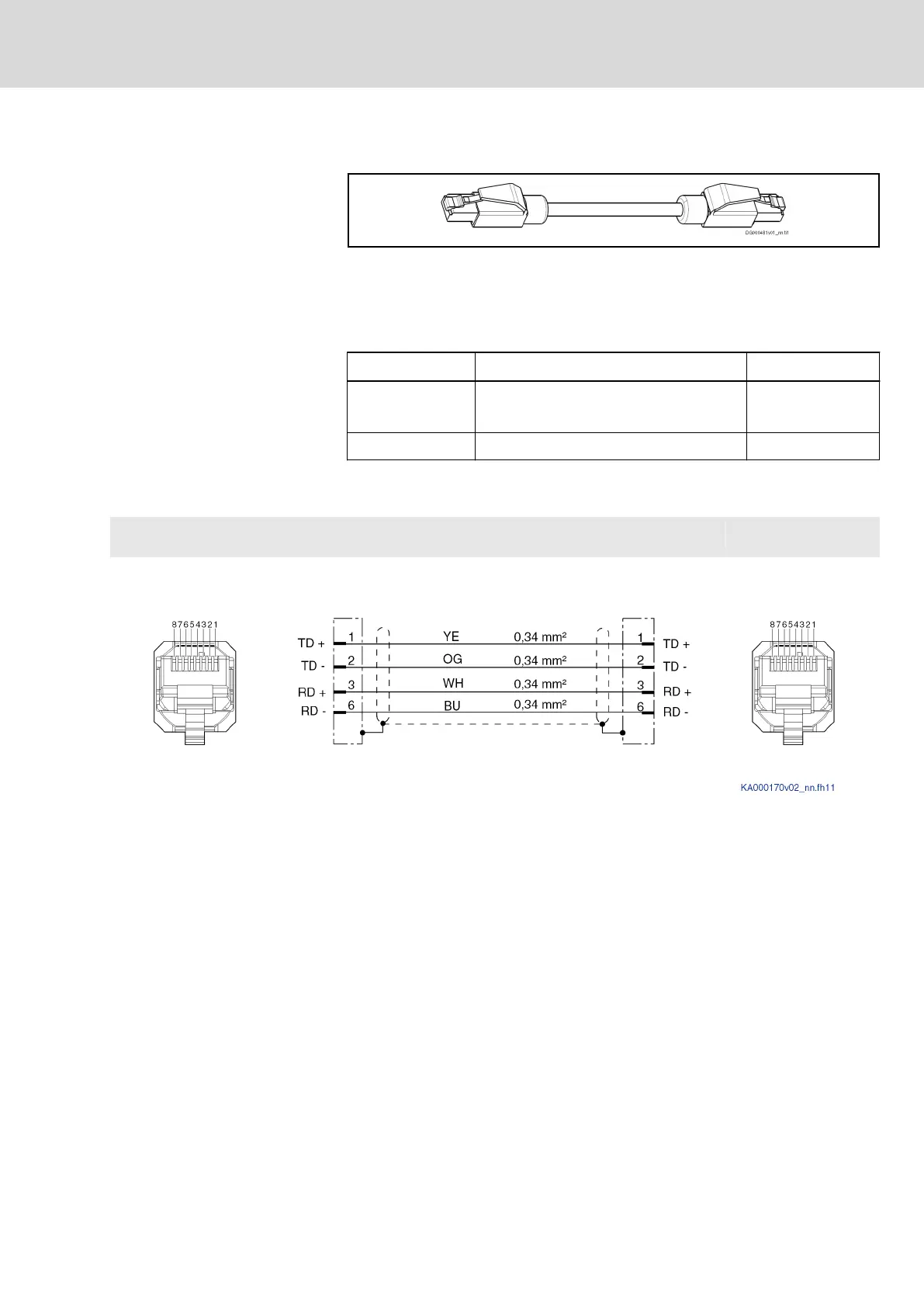

Fig. 8-31: RKB0011
Use
The cable connects the drive system to the higher-level control.
Length That Can Be Ordered, Or‐
der Code
Length Order code Parts number
Select as desired
(max. 100 m)
RKB0011/xxx,x (xxx,x = length in meters)
Example: 13.5 m ⇒ RKB0011/013,5
R911316888
5 m RKB0011/005,0 R911321548
Tab. 8-13: RKB0033
RKB0011
Plug-in connector bus Bulk cable Plug-in connector bus
RBS0016/S01 (RJ-45,
4-pin)
REB0400 RBS0016/S01 (RJ-45,
4-pin)
Tab. 8-14: Interconnection Diagram RKB0011
DOK-INDRV*-HCS01******-PR05-EN-P Bosch Rexroth AG 279/341
Rexroth IndraDrive CsDrive Systems with HCS01
Cables, accessories, additional components
