Looping through the voltage
3.6 V Direct voltage source (battery or UPS)
A Shielded lines, e.g. (2x0,5)C; connect cable shield to shield
connection at top of device
B Twisted single wires

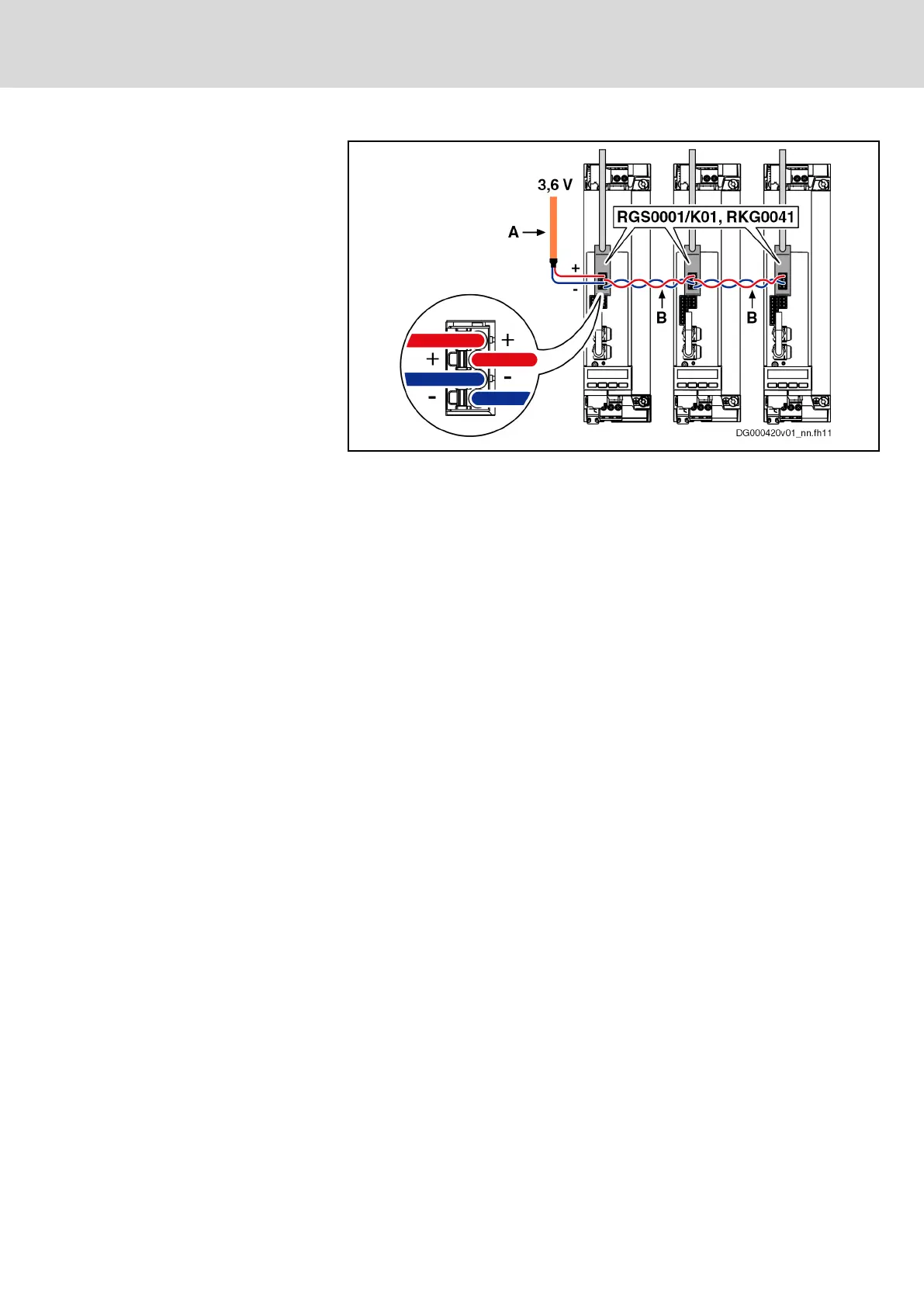

Fig. 8-27: Looping through the voltage
Replacement of devices
When replacing an HCS01, observe the following aspect:
Leave the 4-pin spring terminal with the connected battery/UPS at the D-Sub
connector so that voltage is still applied and the encoder position is retained.
DOK-INDRV*-HCS01******-PR05-EN-P Bosch Rexroth AG 273/341
Rexroth IndraDrive CsDrive Systems with HCS01
Cables, accessories, additional components
