Bosch Rexroth IndraDrive CsDrive System with HCS01 User Manual

Selected transformers
Degree of protection IP00

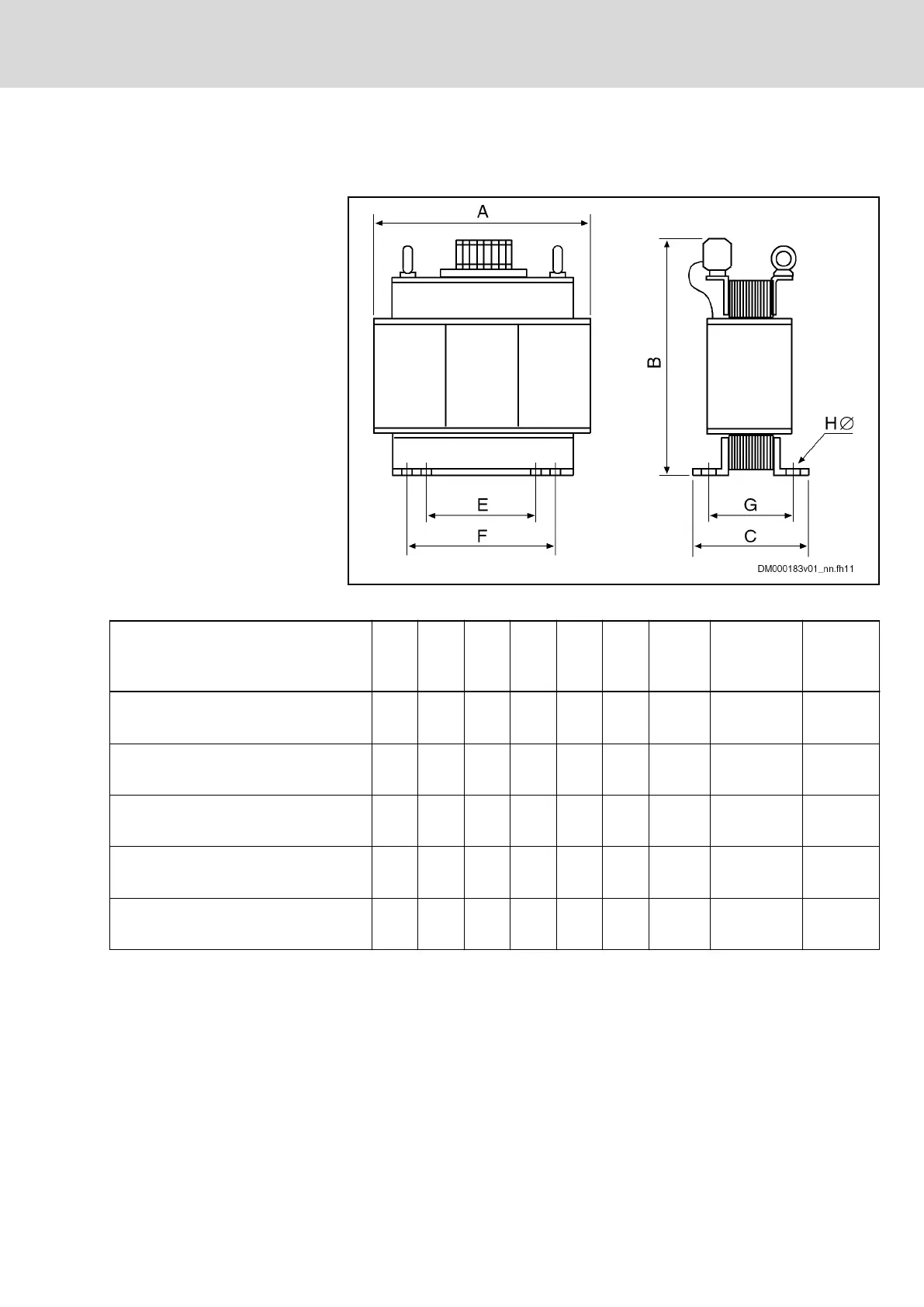

Fig. 8-42: Dimensional drawing
kVA / type of construction / nominal in‐
put voltage - nominal output voltage
(Material number)
A B C E F G HØ Terminal
connector
[mm
2
]
Weight
[kg]
2,00 / S / 380,415,440 - 220
(R911226187)
205 210 120 95 145 85 7×15 4 12
2,50 / S / 380,415,440 - 220
(R911219217)
205 210 130 95 145 95 7×15 6 13
4,00 / S / 380,415 - 220
(R911216703)
240 260 150 110 170 120 11×15 6 24
5,00 / S / 380,415,440 - 220
(R911219831)
300 325 140 140 210 110 11×15 10 31
7,50 / S / 380,415,440 - 220
(R911219497)
300 310 155 140 210 125 11×18 10 36
Tab. 8-24: Data
DOK-INDRV*-HCS01******-PR05-EN-P Bosch Rexroth AG 291/341
Rexroth IndraDrive CsDrive Systems with HCS01
Cables, accessories, additional components
