Bosch Rexroth IndraDrive CsDrive System with HCS01 User Manual

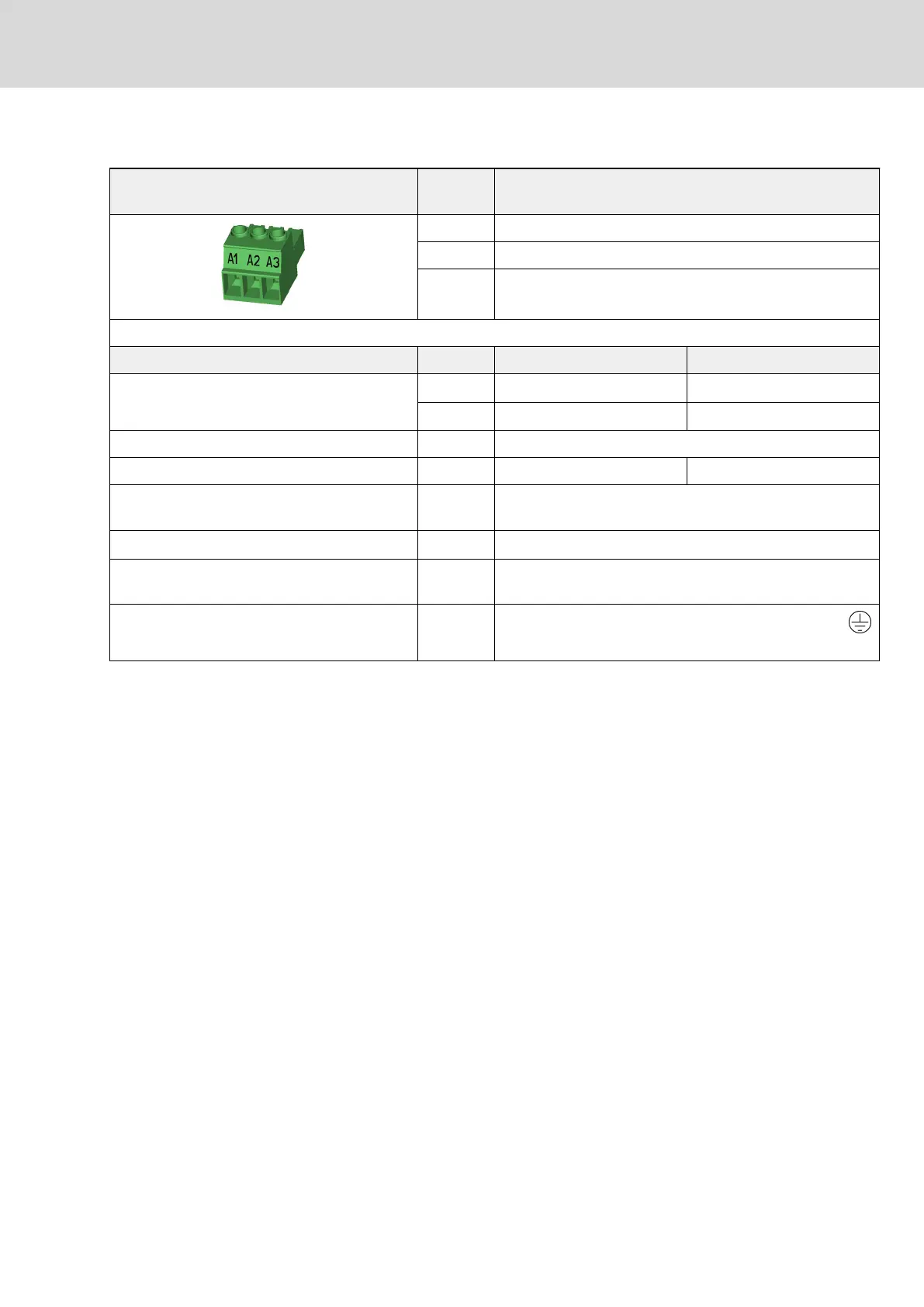

X5, Motor Connection HCS01.1E-W0054-x-03
View Identifica‐
tion
Function
A1 For power connection U1 at motor
A2 For power connection V1 at motor
A3 For power connection W1 at motor
Screw connection at connector Unit Min. Max.
Connection cable
Stranded wire
mm
2
0,75 10,0
AWG 18 8
Stripped length mm 14
Tightening torque Nm 1,5 1,7
Occurring current load and minimum required
connection cross section
A See technical data of device used (I
out
)
Occurring voltage load V See technical data of device used (U
out
)
Short circuit protection A1, A2, A3 against each other and each of them against
ground
Connection of equipment grounding conductor
Via connection point of equipment grounding conductor
at device
Tab. 6-8: Function, Pin Assignment, Properties
DOK-INDRV*-HCS01******-PR05-EN-P Bosch Rexroth AG 137/341
Rexroth IndraDrive CsDrive Systems with HCS01
Mounting and installation
