5-8 Phaser 5500 Printer Service Manual
Registration
Leading Edge to Trailing Edge (Process) Registration Troubleshooting Procedure
Actions and Questions Yes No

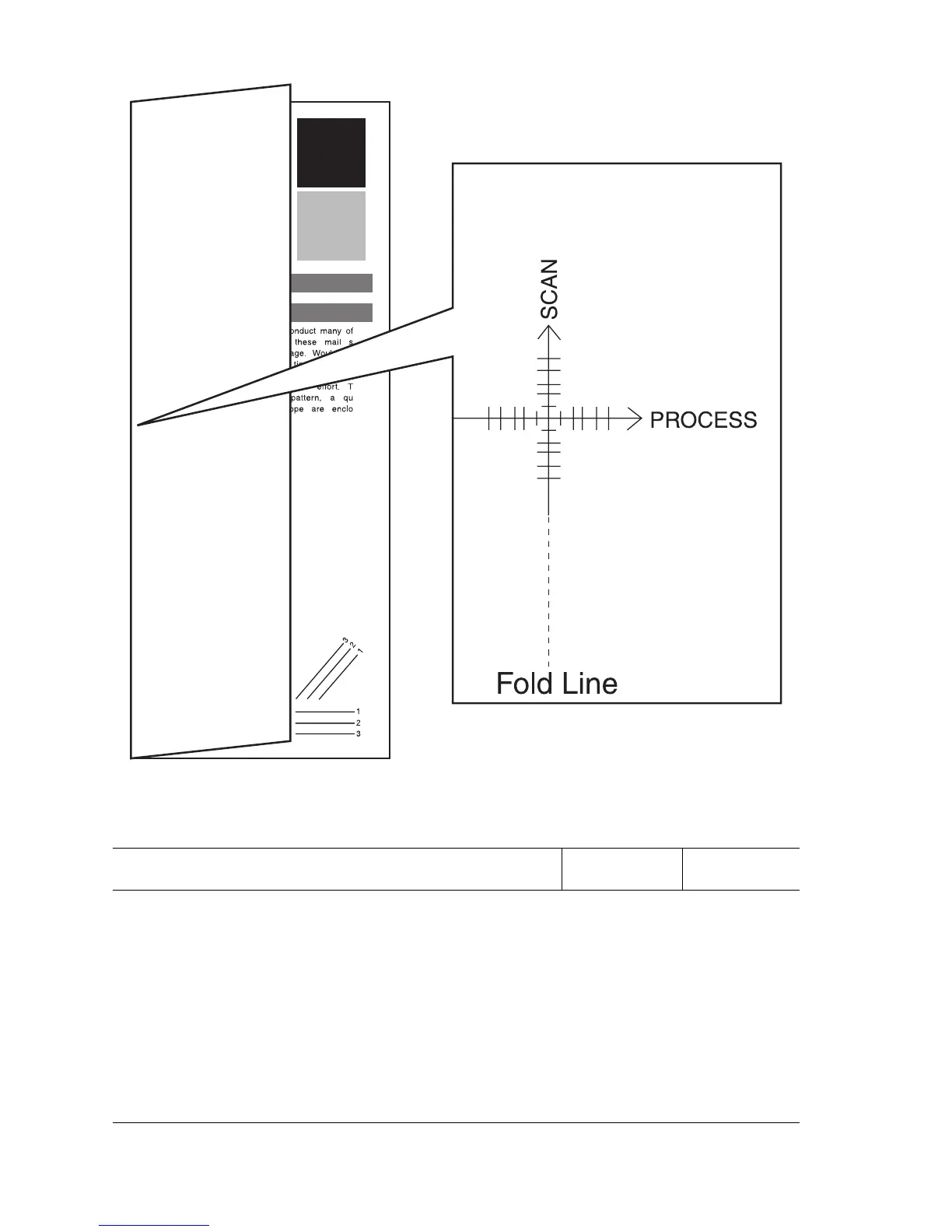

Measure the registration on two consecutive test prints. Fold
the paper in half (leading edge to trailing edge). Observe the
fold line of the paper with reference to the cross hairs of the
target.
Is the fold within +/- 2.5 mm of the target cross hairs
(each line on the target is 1 mm).
The test prints
meet the
Leading Edge
to Trailing
Edge
Registration
Specification.
Go to
"Registration
(Side to Side)"
on page 5-9.
Go to
"Registration"
on page 5-45.
s5500-051
