6-4 Phaser 5500 Printer Service Manual
Adjustments
Checking Registration
This procedure checks the printer registration in the horizontal (scan) direction and
the vertical (process) direction for both simplex and duplex printing. If any
registration measurement does not meet the specification, use the Printer NVRAM
Adjustments utilities found in Service Diagnostics to make the necessary registration
adjustments.
Start the registration adjustment procedure by verifying that the current settings in
NVRAM are at the factory defaults of 50 for the scan direction and 33 for the process
direction. Once set to factory defaults, perform registration testing on all input trays in
both simplex and duplex modes. Use the job defaults to change the supply tray and
mode to generate Print Quality test prints from each source.
1. From the Main menu, select Troubleshooting, then press the OK button.
2. Select Print Quality Problems, then press the OK button.
3. Select Test Prints, then press the OK button. Depending on your job settings,
two or more Print Quality Test prints should print.

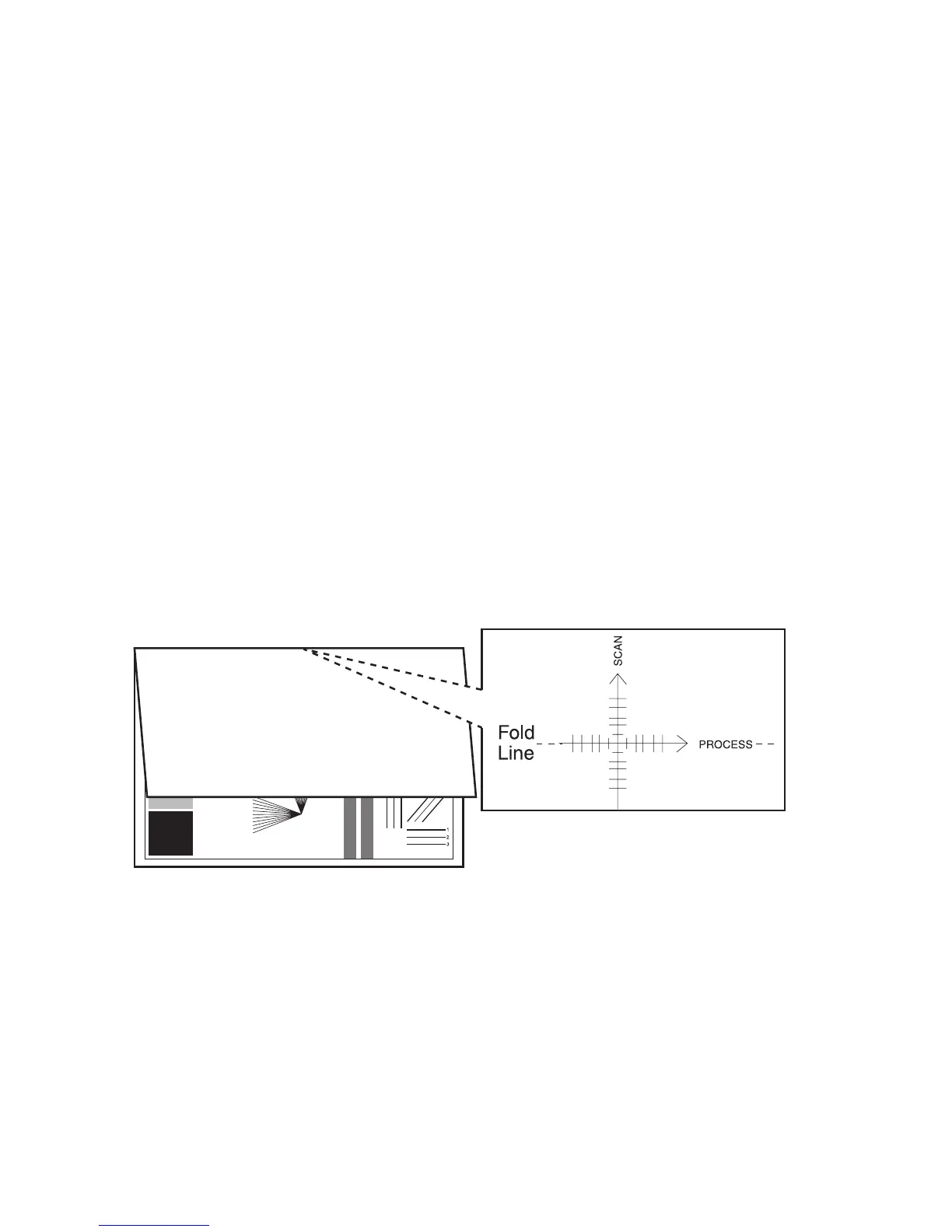

4. For the scan direction, side-to-side, fold the test print like this:
s5500-052
