8-64 Phaser 5500 Printer Service Manual

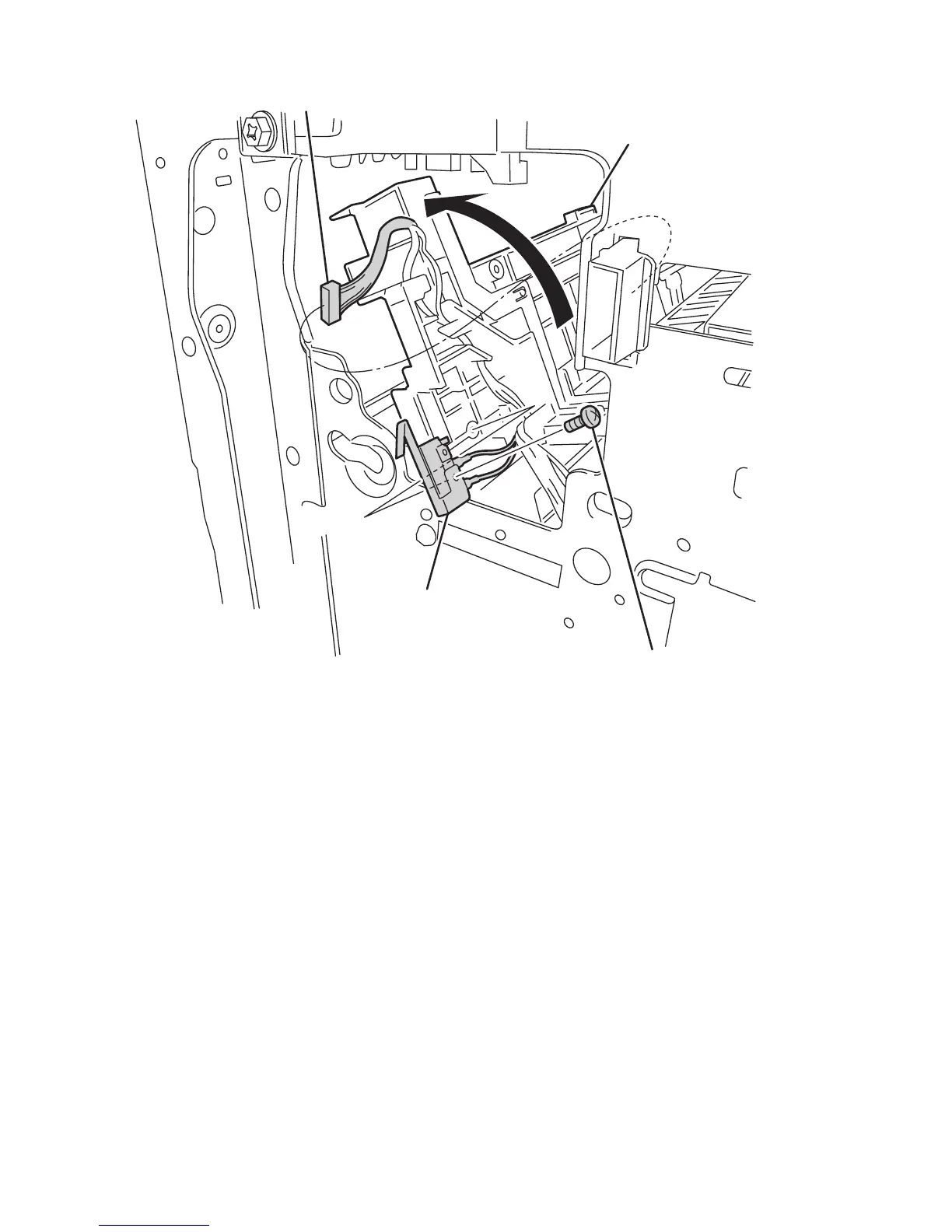

23. Lift the right side of the SUB Guide Assembly.
24. Remove the screw securing the Drum Cartridge Detect Switch and the Switch
Plate to the SUB Guide Assembly.
25. Remove the Drum Cartridge Detect Switch together with the Switch Plate.
Environmental Sensor PWB
1. Remove the Front Left Cover (page 8-5).
2. Remove the Top Cover (page 8-7).
3. Remove the Drum Cartridge.
4. Remove the Toner Cartridge.
5. Remove the Front Door (page 8-8).
6. Remove the Inner Main Cover (page 8-9).
7. Remove the HVPS (page 8-86).
8. Remove the Drum Cartridge Fan Intake Duct (page 8-56).
9. Remove the Toner Dispense Assembly (page 8-71).
Drum Cartridge Detect Switch
Sub Guide Assembly
Connector
Screw
s5500-157
To Next Page
