8-58 Phaser 5500 Printer Service Manual
Drum Cartridge Fan
1. Remove the Top Cover (page 8-7).
2. Remove the Drum Cartridge Fan Intake Duct (page 8-56).
3. Disconnect the Drum Cartridge Fan from the junction connector.
PL5.1.18
4. Release the two hooks holding the fan to the Intake Duct and remove the fan.

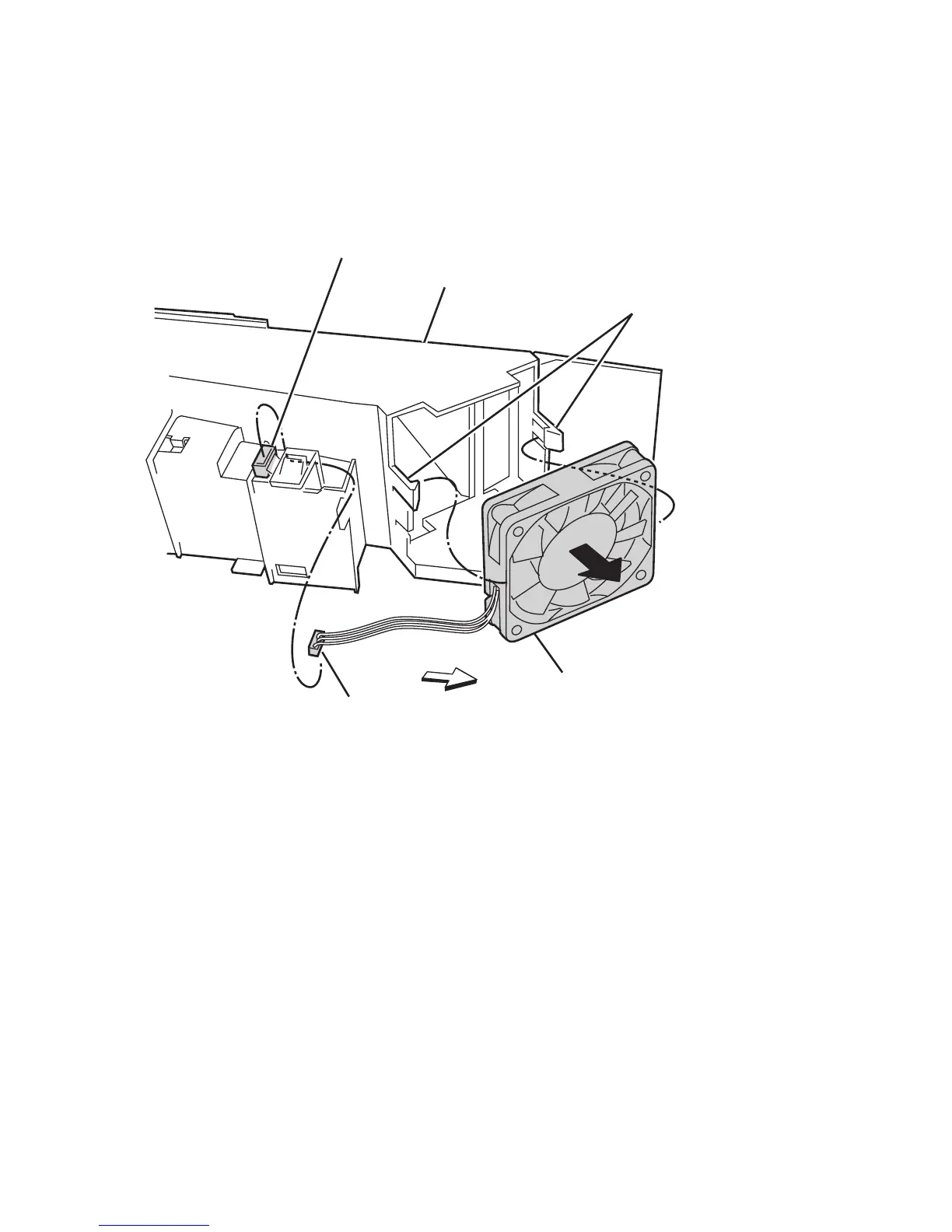

Drum Cartridge Fan
s5500-626
Hooks
Junction Connector
Intake Duct
Front
Connector
